The Rescue Pulley is a lightweight, full-strength, Prusik-minding pulley designed for technical rescue teams where minimizing equipment weight is critical. Ideal for mountain rescue, swiftwater rescue, rope access, and general technical operations, this pulley combines exceptional strength with compact dimensions for efficient field deployment.
Unlike traditional bent-plate pulleys, the Rescue Pulley features precision-machined aluminum side plates that allow material thickness to be optimized throughout the pulley, maximizing the strength-to-weight ratio. Sealed ball bearings provide smooth, high-efficiency performance, while durable aluminum side plates help protect the rope during operation. An extremely low-profile stainless steel axle assembly minimizes snagging on rocks, roots, and uneven terrain, making it particularly well-suited for challenging rescue environments.
Available in both single and double sheave configurations, the Rescue Pulley is designed for use with lifelines up to 13 mm (1/2 in) in diameter and is NFPA General Use rated.
Features
• Lightweight, full-strength pulley designed for technical rescue applications
• Available in single or double sheave configurations
• Prusik-minding design supports progress-capture systems
• Precision-machined aluminum side plates maximize strength-to-weight ratio
• Sealed ball bearings provide smooth, high-efficiency operation
• Aluminum side plates help protect rope during use
• Low-profile stainless steel axle assembly reduces snagging hazards
• Compatible with lifelines up to 13 mm (1/2 in) diameter
• Ideal for mountain rescue, swiftwater rescue, rope access, and technical rigging
• NFPA General Use rated
Features of the Double Rescue Pulley
• Double-sheave design for mechanical advantage systems and hauling applications
• Increased rigging versatility for rescue operations
• Do not load only a single side of a double sheave pulley
Specifications
• Manufacturer: CMC
• Product Type: Rescue Pulley
• Available Configurations: Single Sheave or Double Sheave
• Material: Aluminum Side Plates with Stainless Steel Axle Assembly
• Bearing Type: Sealed Ball Bearings
• Maximum Rope Diameter: 13 mm (1/2 in)
• Color: Red
• NFPA Rating: General Use
Variant Specifications

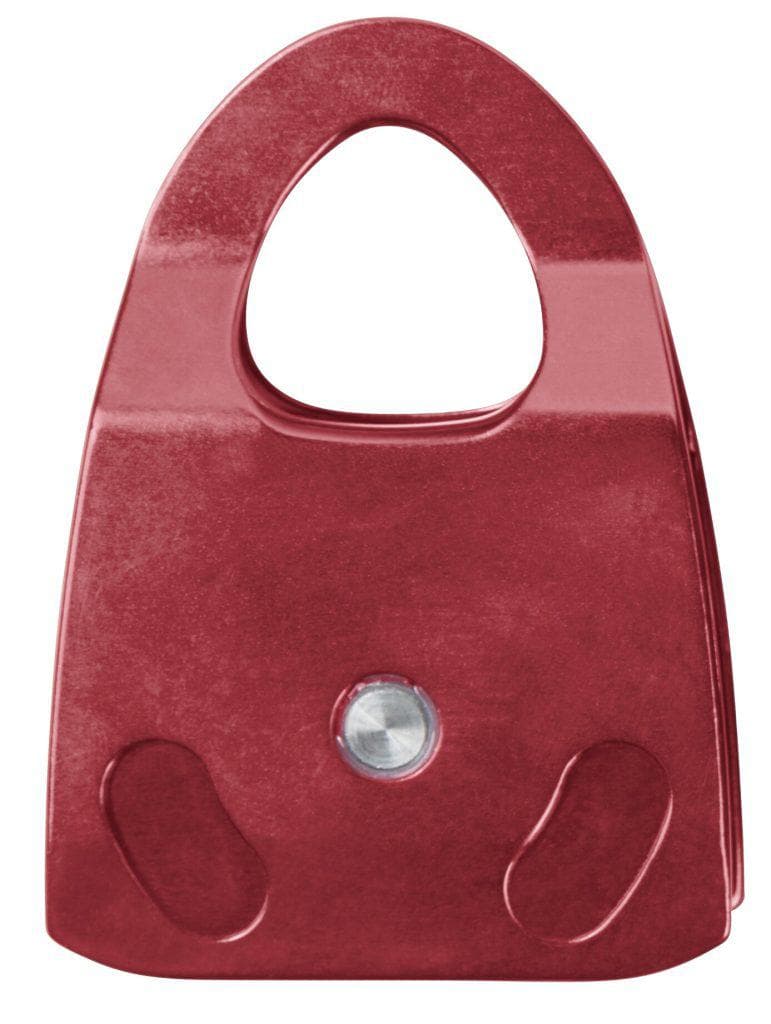

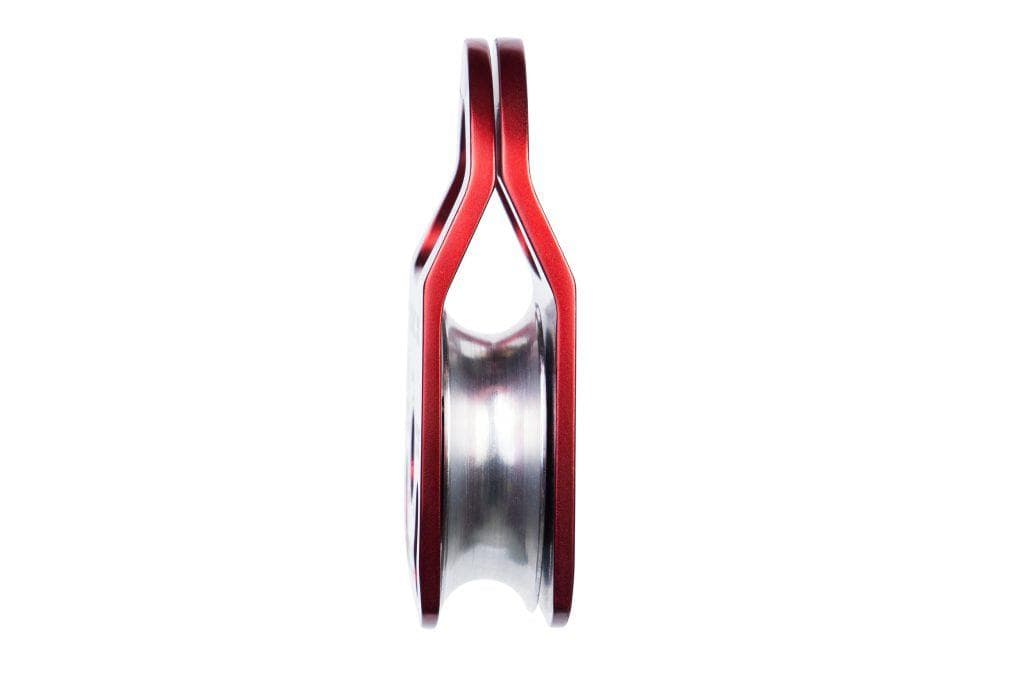

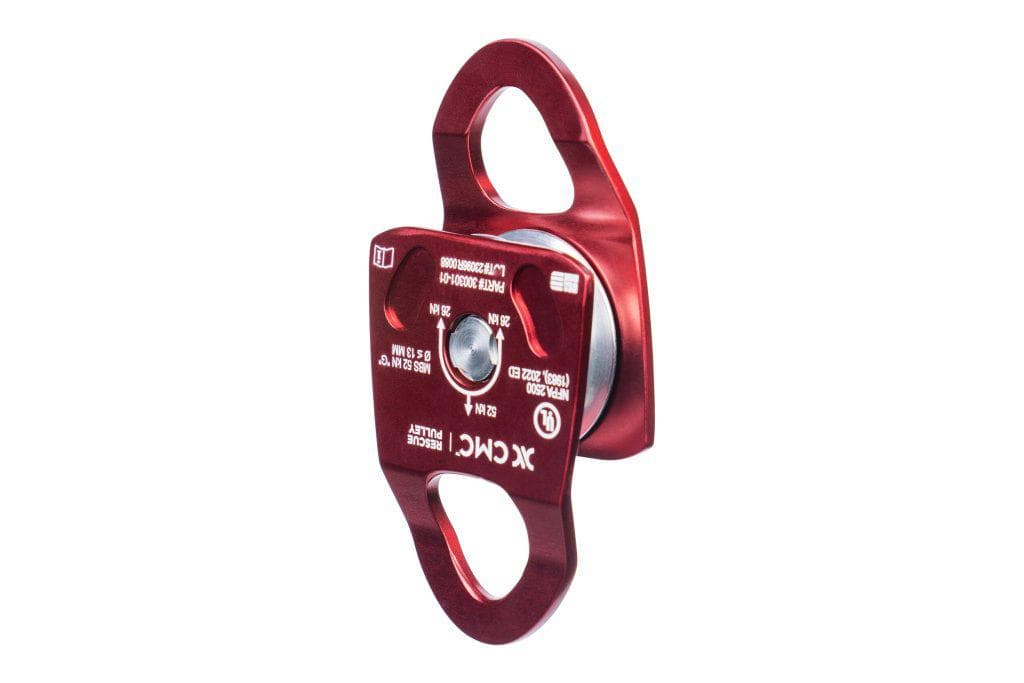

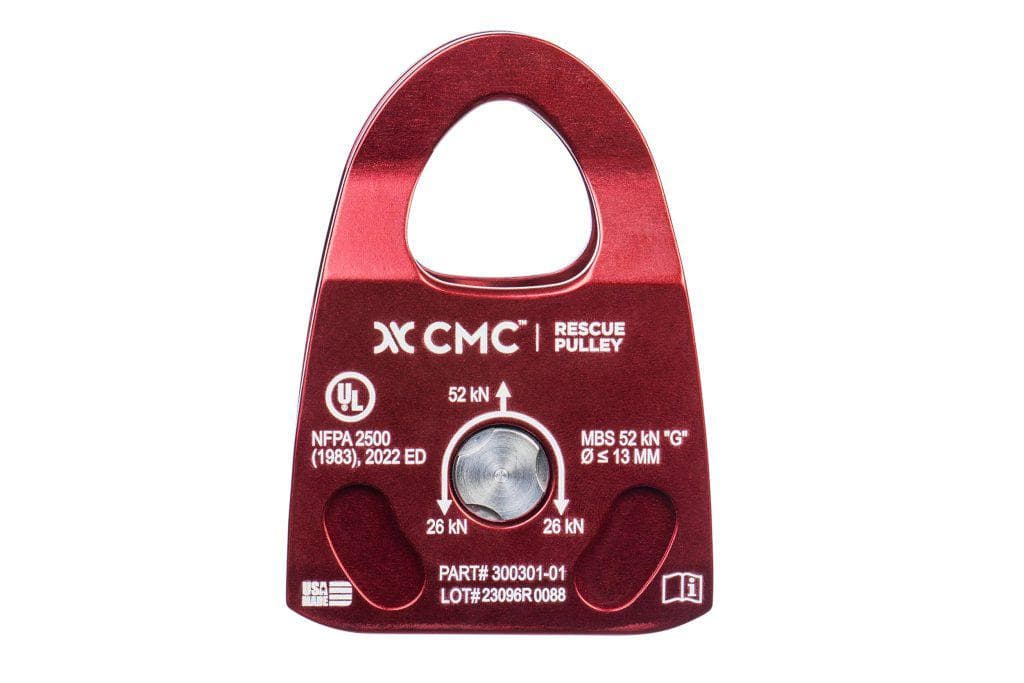

Single Rescue Pulley
• Item Number: 300301
• Type: Single Sheave
• Weight: 145 g (5.1 oz)
• Sheave Tread Size: 38 x 13 mm (1.5 x 0.5 in)
• Overall Dimensions: 8.9 x 6.4 x 1.9 cm (3.5 x 2.5 x 0.75 in)
• 3 Sigma MBS: 52 kN (11,690 lbf)

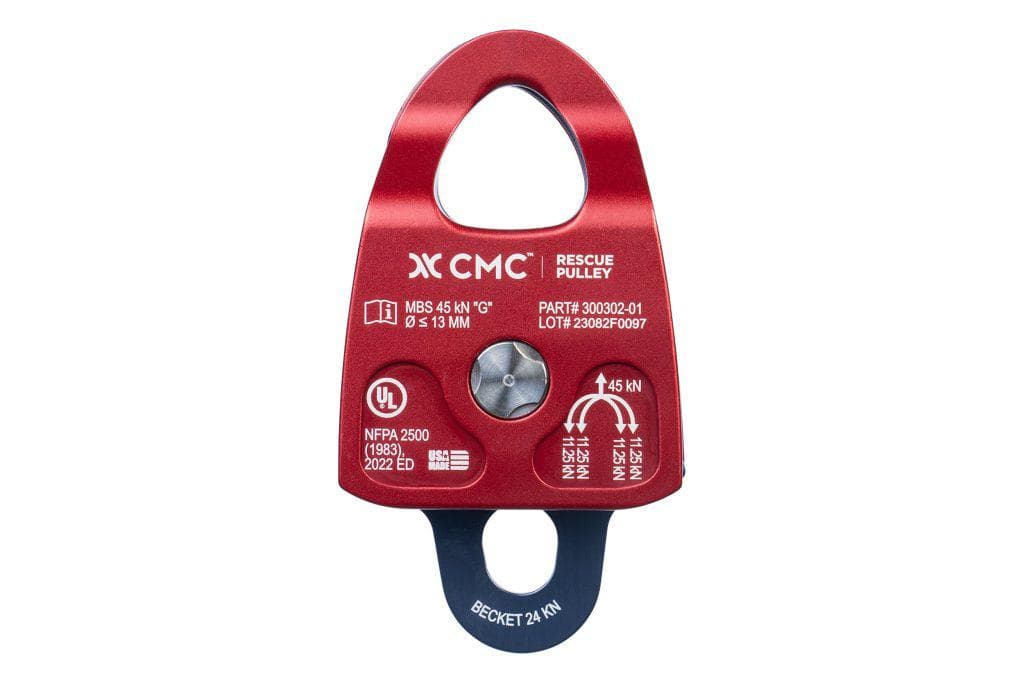

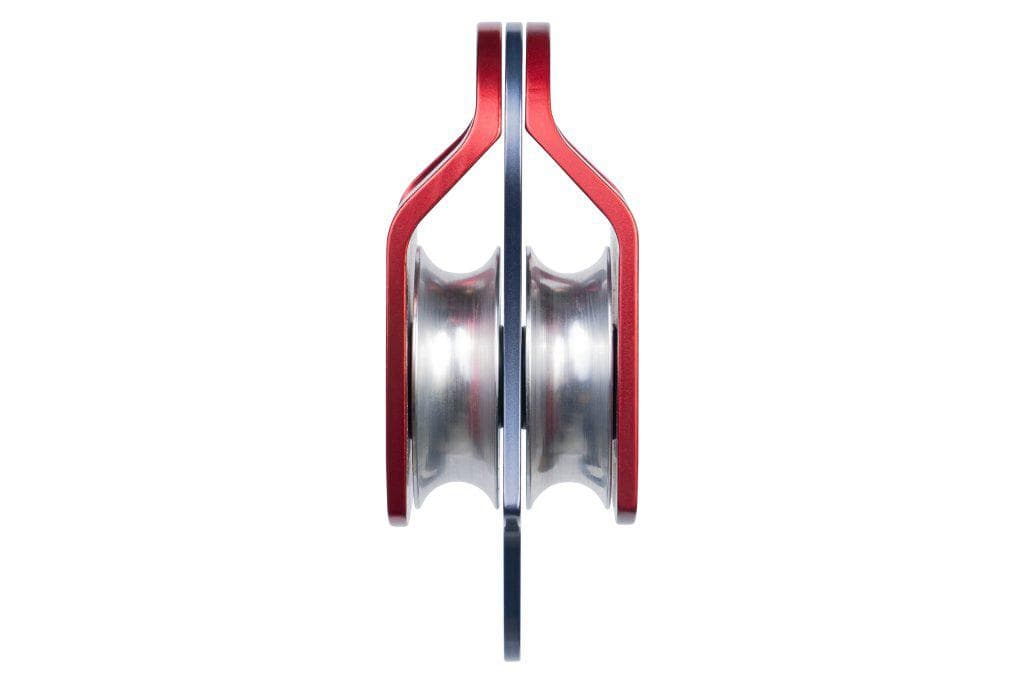

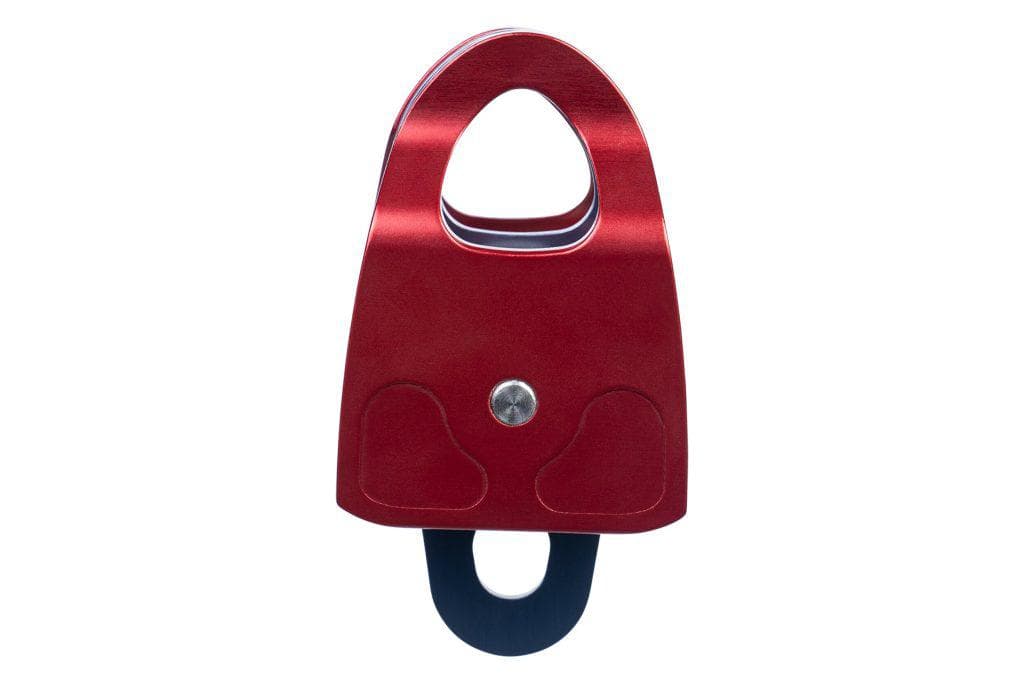

Double Rescue Pulley
• Item Number: 300302
• Type: Double Sheave
• Weight: 249 g (8.8 oz)
• Sheave Tread Size: 38 x 13 mm (1.5 x 0.5 in)
• Overall Dimensions: 11.4 x 6.4 x 5.1 cm (4.5 x 2.5 x 2 in)
• 3 Sigma MBS: 45 kN (10,116 lbf)
Applications
• Mountain rescue
• Swiftwater rescue
• Technical rope rescue
• Rope access operations
• Mechanical advantage systems
• Progress-capture hauling systems
• High-angle rescue operations
• General technical rigging
