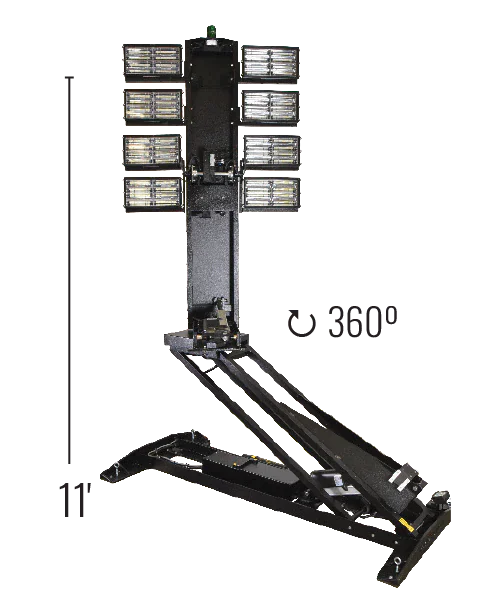

The Command Light CL Series 4-Head Light Tower is the largest and most powerful light tower in the Command Light lineup, designed specifically for large fire apparatus, rescue vehicles, and specialty emergency response units. With an impressive reach of up to 11 feet from its base, the CL Series elevates scene lighting well above the apparatus, providing superior visibility and reducing shadows during critical operations.
Constructed from aircraft-grade aluminum alloy, the CL Series delivers exceptional strength while minimizing weight. The tower features full 360-degree rotation along with tilt, raise, and lower functions that allow operators to direct light precisely where it is needed. Unlike fixed perimeter lighting systems, the CL Series enables crews to position all available light exactly where it provides the greatest benefit, including overhanging the side of the vehicle to illuminate work areas adjacent to the apparatus.
Features
• Largest light tower in the Command Light product lineup
• Provides up to 11 feet of reach from the tower base

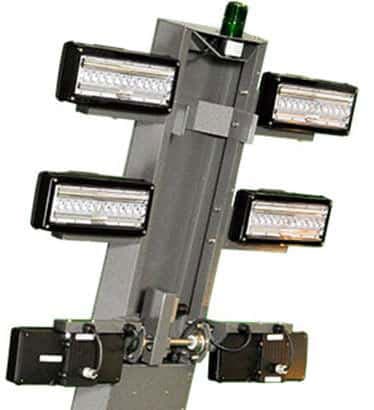

• Four-head lighting configuration for maximum scene illumination
• Full 360-degree rotation for complete scene coverage
• Tilt, raise, and lower functions for precise light positioning
• Can be angled to overhang the apparatus for side-area illumination
• Aircraft-grade aluminum alloy construction for strength and reduced weight
• Designed for large fire apparatus, rescue vehicles, and specialty emergency vehicles
• Helps reduce shadows and improve scene visibility
• Operates from vehicle 12V DC power systems
• Available with multiple high-output LED lighting packages
Specifications
• Manufacturer: Command Light
• Product Type: Light Tower
• Series: CL Series
• Reach: Up to 11 ft
• Rotation: 360 Degrees
• Construction: Aircraft-Grade Aluminum Alloy
• Power Source: 12V DC
FireTech SL-X-15 185W Configuration
• Power Requirement: 12V DC – 87 Amps
• System Power Consumption: 1,040W
• Output Per Light: 28,000 Lumens
• Total Output: 112,000 Lumens
• Nested Dimensions: 12" H x 74" W x 43" D
• Upright Dimensions: 131" H x 79" W x 43" D
• Weight: 325 lbs (147 kg)
FRC Radiant Command 120W Configuration
• Power Requirement: 12V DC – 98 Amps
• System Power Consumption: 780W
• Output Per Light: 17,000 Lumens
• Total Output: 68,000 Lumens
• Nested Dimensions: 12" H x 74" W x 40" D
• Upright Dimensions: 131" H x 79" W x 40" D
• Weight: 305 lbs (139 kg)
FRC Spectra Max 335W Configuration
• Power Requirement: 12V DC – 100 Amps
• System Power Consumption: 1,220W
• Output Per Light: 28,000 Lumens
• Total Output: 112,000 Lumens
• Nested Dimensions: 12" H x 74" W x 43" D
• Upright Dimensions: 131" H x 79" W x 43" D
• Weight: 305 lbs (139 kg)
Whelen Pioneer Plus PFP2 150W Configuration
• Power Requirement: 12V DC – 75 Amps
• System Power Consumption: 900W
• Output Per Light: 20,261 Lumens
• Total Output: 81,044 Lumens
• Nested Dimensions: 12" H x 74" W x 43" D
• Upright Dimensions: 131" H x 79" W x 43" D
• Weight: 305 lbs (139 kg)
Available Lighting Options
• FireTech SL-X-15 185W
• FRC Radiant Command 120W
• FRC Spectra Max 335W
• Whelen Pioneer Plus PFP2 150W
