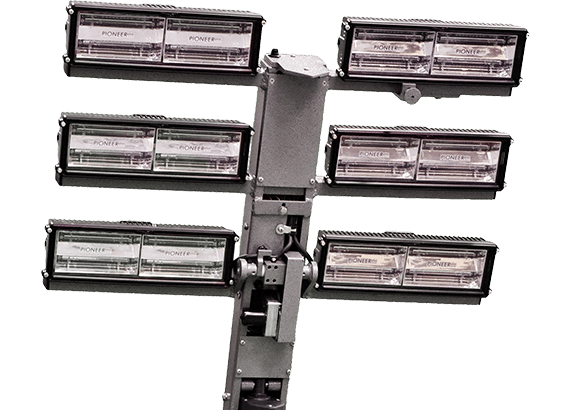

The Command Light CL Series 6-Head Light Tower AC is a high-output scene lighting system designed to deliver exceptional illumination for large-scale emergency response operations. Engineered for fire apparatus, rescue vehicles, command units, and specialty response vehicles, the CL Series provides elevated lighting coverage that helps reduce shadows and improve visibility across expansive incident scenes.
Constructed from aircraft-grade aluminum alloy, the CL Series combines strength and durability with reduced weight for reliable performance in demanding environments. Featuring full 360-degree rotation along with tilt, raise, and lower capabilities, the tower allows operators to direct light exactly where it is needed. Available with multiple high-performance LED lighting packages, the CL Series delivers some of the highest lumen outputs available in a vehicle-mounted light tower.
Features
• Six-head lighting configuration for maximum scene illumination
• Full 360-degree rotation for complete scene coverage
• Tilt, raise, and lower functions for precise light positioning
• Aircraft-grade aluminum alloy construction for strength and durability
• Elevates lighting above the apparatus for improved visibility
• Helps reduce shadows during emergency operations
• Designed for fire apparatus, rescue vehicles, command units, and specialty response vehicles
• Compatible with 115V and 230V AC power systems
• Available with multiple high-output LED lighting packages
• Ideal for large incident scenes and extended operations
Specifications
• Manufacturer: Command Light
• Product Type: AC Light Tower
• Series: CL Series
• Rotation: 360 Degrees
• Construction: Aircraft-Grade Aluminum Alloy
• Power Source: 115V or 230V AC
• Weight: 165 lbs (75 kg)
FireTech Helios 60W Configuration
• Power Requirement: 115V or 230V AC
• System Power Consumption: 660W
• Output Per Light: 14,000 Lumens
• Total Output: 84,000 Lumens
• Nested Dimensions: 12" H x 47" W x 28" D
• Upright Dimensions: 87.5" H x 52" W x 28" D
FRC Radiant Command 120W Configuration
• Power Requirement: 115V or 230V AC
• System Power Consumption: 1,020W
• Output Per Light: 17,000 Lumens
• Total Output: 102,000 Lumens
• Nested Dimensions: 12" H x 47" W x 29" D
• Upright Dimensions: 87.5" H x 52" W x 29" D
FRC Spectra Max 335W Configuration
• Power Requirement: 115V or 230V AC
• System Power Consumption: 2,310W
• Output Per Light: 28,000 Lumens
• Total Output: 168,000 Lumens
• Nested Dimensions: 12" H x 47" W x 34" D
• Upright Dimensions: 87.5" H x 52" W x 34" D
Whelen Pioneer Plus PFP2 150W Configuration
• Power Requirement: 115V or 230V AC
• System Power Consumption: 1,200W
• Output Per Light: 20,442 Lumens
• Total Output: 122,652 Lumens
• Nested Dimensions: 12" H x 47" W x 34" D
• Upright Dimensions: 87.5" H x 52" W x 34" D
Whelen Pioneer Plus PSP1 75W Configuration
• Power Requirement: 115V or 230V AC
• System Power Consumption: 750W
• Output Per Light: 8,517 Lumens
• Total Output: 51,102 Lumens
• Nested Dimensions: 12" H x 47" W x 23" D
• Upright Dimensions: 87.5" H x 52" W x 23" D
Available Lighting Options
• FireTech Helios 60W
• FRC Radiant Command 120W
• FRC Spectra Max 335W
• Whelen Pioneer Plus PFP2 150W
• Whelen Pioneer Plus PSP1 75W
