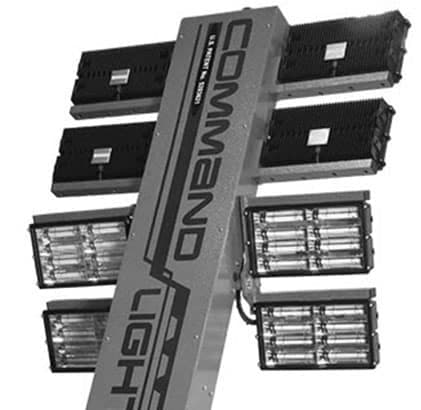

The Command Light CL Series 8-Head Light Tower is the most powerful lighting solution in the Command Light lineup, engineered for large fire apparatus, rescue vehicles, command units, and specialty emergency response vehicles that require maximum scene illumination. With a reach of up to 11 feet from its base, the CL Series elevates lighting well above the apparatus to provide superior visibility across large incident scenes while reducing shadows and dark areas.
Constructed from aircraft-grade aluminum alloy, the CL Series combines exceptional strength with reduced weight, making it one of the strongest mobile light towers available. The tower features full 360-degree rotation along with tilt, raise, and lower functions, allowing operators to direct light precisely where it is needed. The tower can also be angled to overhang the side of the vehicle, providing effective illumination directly alongside the apparatus. Available with ultra-high-output LED lighting packages, the CL Series delivers unmatched lighting performance for the most demanding emergency response applications.
Features
• Largest and most powerful light tower in the Command Light lineup
• Provides up to 11 feet of reach from the tower base
• Eight-head lighting configuration for maximum scene coverage
• Full 360-degree rotation for complete lighting flexibility
• Tilt, raise, and lower functions for precise light positioning
• Can overhang the side of the apparatus to illuminate adjacent work areas
• Aircraft-grade aluminum alloy construction for strength and reduced weight
• Designed for large fire apparatus, rescue vehicles, command units, and specialty emergency vehicles
• Helps eliminate shadows and improve scene visibility
• Compatible with high-output AC-powered LED lighting packages
• Ideal for large-scale incidents and extended operations
Specifications
• Manufacturer: Command Light
• Product Type: Light Tower
• Series: CL Series
• Reach: Up to 11 ft
• Rotation: 360 Degrees
• Construction: Aircraft-Grade Aluminum Alloy
• Weight: 325 lbs (147 kg)
FRC Spectra Max 335W Configuration
• Power Requirement: 230V AC
• System Power Consumption: 2,980W
• Output Per Light: 28,000 Lumens
• Total Output: 224,000 Lumens
• Nested Dimensions: 12" H x 74" W x 43" D
• Upright Dimensions: 131" H x 79" W x 43" D
Whelen Pioneer Plus PFP4 300W Configuration
• Power Requirement: 115V or 230V AC
• System Power Consumption: 2,700W
• Output Per Light: 40,884 Lumens
• Total Output: 327,072 Lumens
• Nested Dimensions: 12" H x 74" W x 43" D
• Upright Dimensions: 131" H x 79" W x 43" D
Available Lighting Options
• FRC Spectra Max 335W
• Whelen Pioneer Plus PFP4 300W
