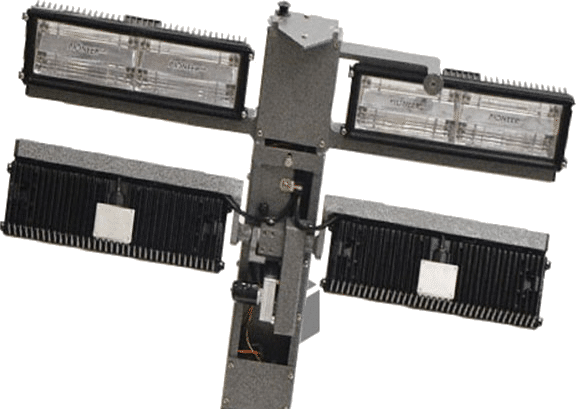

The Command Light KL Series 4-Head Light Tower DC is a mid-size, high-performance scene lighting system designed to deliver exceptional illumination while maintaining a compact footprint on emergency response vehicles. Part of the Knight Series lineup, this tower provides nearly 7.5 feet of reach from its base, allowing responders to elevate lighting above the vehicle for improved scene visibility and operational effectiveness.
Constructed from lightweight aircraft-grade aluminum, the KL Series combines durability, strength, and reduced weight for demanding emergency service applications. Featuring 360-degree rotation and smooth tilt, raise, and lower functions, the tower allows operators to direct light precisely where it is needed. Available with multiple high-output LED and LED/HID lighting packages, the KL Series is ideal for fire apparatus, rescue vehicles, command units, and specialty response vehicles requiring powerful DC-powered scene lighting.
Features
• Mid-size Knight Series light tower with nearly 7.5 feet of reach
• Full 360-degree rotation for complete scene coverage
• Tilt, raise, and lower functions for precise light positioning
• Lightweight aircraft-grade aluminum construction
• Compact footprint ideal for apparatus with limited mounting space
• Elevates scene lighting above vehicle-mounted perimeter lights
• Designed for fire apparatus, rescue vehicles, command units, and specialty emergency vehicles
• Four-head lighting configuration for enhanced illumination
• Operates from vehicle 12V DC power systems
• Available with multiple high-output LED and LED/HID lighting packages
Specifications
• Manufacturer: Command Light
• Product Type: DC Light Tower
• Series: KL Series / Knight Series
• Reach: Nearly 7.5 ft
• Rotation: 360 Degrees
• Construction: Aircraft-Grade Aluminum
• Power Source: 12V DC
• Weight: 165 lbs (75 kg)
FRC Radiant Command 120W Configuration
• Power Requirement: 12V DC – 65 Amps
• System Power Consumption: 780W
• Output Per Light: 17,000 Lumens
• Total Output: 68,000 Lumens
• Nested Dimensions: 12" H x 47" W x 29" D
• Upright Dimensions: 87.5" H x 52" W x 29" D
FRC Spectra Max 230W Configuration
• Power Requirement: 12V DC – 100 Amps
• System Power Consumption: 1,220W
• Output Per Light: 28,000 Lumens
• Total Output: 112,000 Lumens
• Nested Dimensions: 12" H x 47" W x 34" D
• Upright Dimensions: 87.5" H x 52" W x 34" D
Lightforce HTX LED/HID 150W Configuration
• Power Requirement: 12V DC – 75 Amps
• System Power Consumption: 900W
• Output Per Light: 13,500 Lumens
• Total Output: 54,000 Lumens
• Nested Dimensions: 14" H x 47" W x 31" D
• Upright Dimensions: 87.5" H x 52" W x 31" D
Whelen Pioneer Plus PFH2 150W Configuration
• Power Requirement: 12V DC – 75 Amps
• System Power Consumption: 900W
• Output Per Light: 20,261 Lumens
• Total Output: 81,044 Lumens
• Nested Dimensions: 12" H x 47" W x 34" D
• Upright Dimensions: 87.5" H x 52" W x 34" D
Available Lighting Options
• FRC Radiant Command 120W
• FRC Spectra Max 230W
• Lightforce HTX LED/HID 150W
• Whelen Pioneer Plus PFH2 150W
