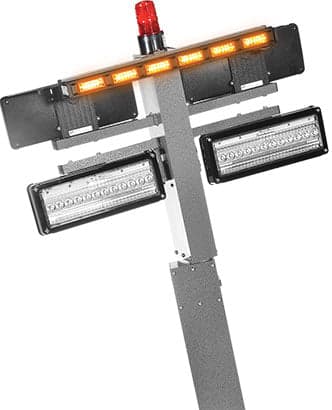

The Command Light SL Series 4-Head Light Tower DC is a compact, high-output scene lighting system designed for emergency vehicles that require exceptional illumination while maintaining a minimal footprint. Part of Command Light's Shadow Series, this tower provides more than 4 feet of reach from its base, with an optional long arm extending reach up to approximately 6.5 feet for enhanced scene coverage.
Constructed from lightweight aircraft-grade aluminum alloy, the SL Series is engineered for durability without adding excessive vehicle weight. Featuring up to 355 degrees of rotation and Command Light's patented movement system, the tower allows operators to position each light head precisely where illumination is needed. Ideal for fire apparatus, command vehicles, rescue units, SUVs, vans, and pickup trucks, the SL Series is available with multiple high-performance LED and LED/HID lighting configurations to meet a wide range of scene lighting requirements.
Features
• Compact Shadow Series design for space-conscious vehicle installations
• Four-head lighting configuration for maximum scene illumination
• More than 4 feet of reach from the tower base
• Optional long arm extends reach up to approximately 6.5 feet
• Up to 355 degrees of rotation for versatile lighting coverage
• Command Light patented movement system for precise light positioning
• Constructed from lightweight aircraft-grade aluminum alloy
• Designed for emergency vehicles, command units, rescue apparatus, SUVs, vans, and pickup trucks
• Operates from vehicle 12V DC power systems
• Available with multiple high-output LED and LED/HID lighting packages
• Lightweight 75 lb design for reduced vehicle weight impact
Specifications
• Manufacturer: Command Light
• Product Type: DC Light Tower
• Series: SL Series / Shadow Series
• Reach: Over 4 ft (up to 6.5 ft with optional long arm)
• Rotation: 355 degrees
• Construction: Aircraft-Grade Aluminum Alloy
• Power Source: 12V DC
• Weight: 75 lbs (35 kg)
Akron Revel SL 110W Configuration
• Power Requirement: 12V DC – 52 Amps
• System Power Consumption: 960W
• Output Per Light: 14,000 Lumens
• Total Output: 56,000 Lumens
• Nested Dimensions: 8" H x 54" W x 34" D
• Upright Dimensions: 55" H x 36" W x 34" D
FireTech Helios 60W Configuration
• Power Requirement: 12V DC – 35 Amps
• System Power Consumption: 420W
• Output Per Light: 14,000 Lumens
• Total Output: 56,000 Lumens
• Nested Dimensions: 8" H x 54" W x 28" D
• Upright Dimensions: 55" H x 36" W x 28" D
FRC Radiant Command 120W Configuration
• Power Requirement: 12V DC – 55 Amps
• System Power Consumption: 660W
• Output Per Light: 17,000 Lumens
• Total Output: 68,000 Lumens
• Nested Dimensions: 8" H x 54" W x 28" D
• Upright Dimensions: 55" H x 36" W x 28" D
FRC Spectra Max 230W Configuration
• Power Requirement: 12V DC – 90 Amps
• System Power Consumption: 1,100W
• Output Per Light: 28,000 Lumens
• Total Output: 112,000 Lumens
• Nested Dimensions: 8" H x 54" W x 34" D
• Upright Dimensions: 55" H x 36" W x 34" D
Lightforce HTX LED/HID 150W Configuration
• Power Requirement: 12V DC – 65 Amps
• System Power Consumption: 780W
• Output Per Light: 13,500 Lumens
• Total Output: 54,000 Lumens
• Nested Dimensions: 8" H x 56" W x 23" D
• Upright Dimensions: 57" H x 46" W x 23" D
Whelen Pioneer Plus PCH1 75W Configuration
• Power Requirement: 12V DC – 40 Amps
• System Power Consumption: 480W
• Output Per Light: 10,130 Lumens
• Total Output: 40,520 Lumens
• Nested Dimensions: 8" H x 54" W x 22" D
• Upright Dimensions: 55" H x 36" W x 22" D
Whelen Pioneer Plus PFH2 150W Configuration
• Power Requirement: 12V DC – 65 Amps
• System Power Consumption: 780W
• Output Per Light: 20,261 Lumens
• Total Output: 81,044 Lumens
• Nested Dimensions: 8" H x 54" W x 33" D
• Upright Dimensions: 55" H x 36" W x 33" D
Available Lighting Options
• Akron Revel SL 110W
• FireTech Helios 60W
• FRC Radiant Command 120W
• FRC Spectra Max 230W
• Lightforce HTX LED/HID 150W
• Whelen Pioneer Plus PCH1 75W
• Whelen Pioneer Plus PFH2 150W
