Our Confined Space Rescue Rigging Kit contains the necessary equipment for vertical entry in confined space rescue operations. It includes a primary access line, belay/retrieval system, and patient packaging equipment. The latest products are provided for optimal safety and efficiency including the CMC CSR2 Pulley System™ for 4:1 raising and lowering, the CMC Triskelion™ as artificial high directional, and the CMC CLUTCH™ BY HARKEN™ for smooth rope management. Innovative features of the CLUTCH make it ideal for technical rescues including the ratcheting rotating sheave, Anti-Panic brake, force limiting protection, and integrated becket.

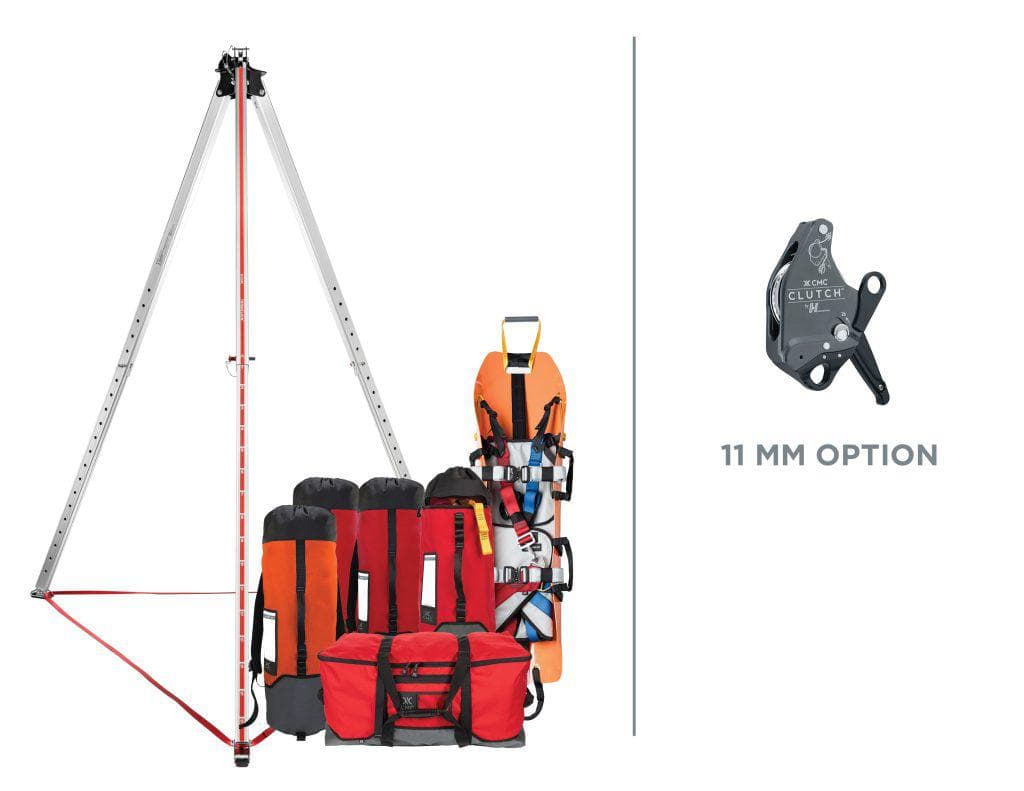

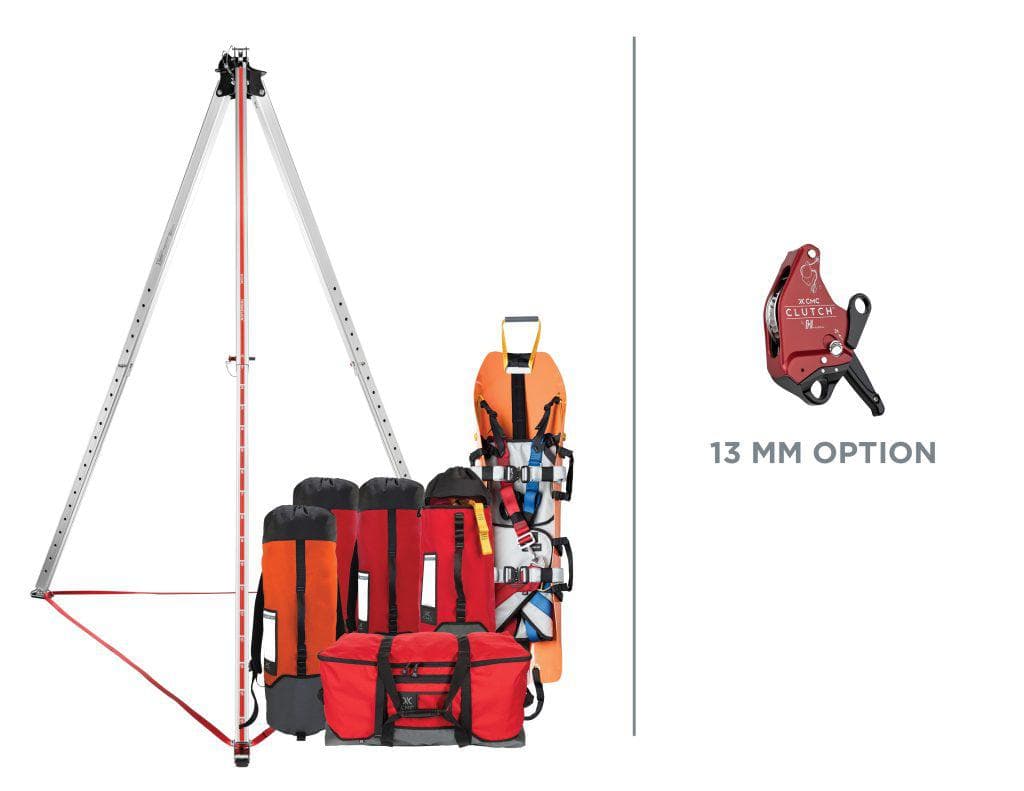

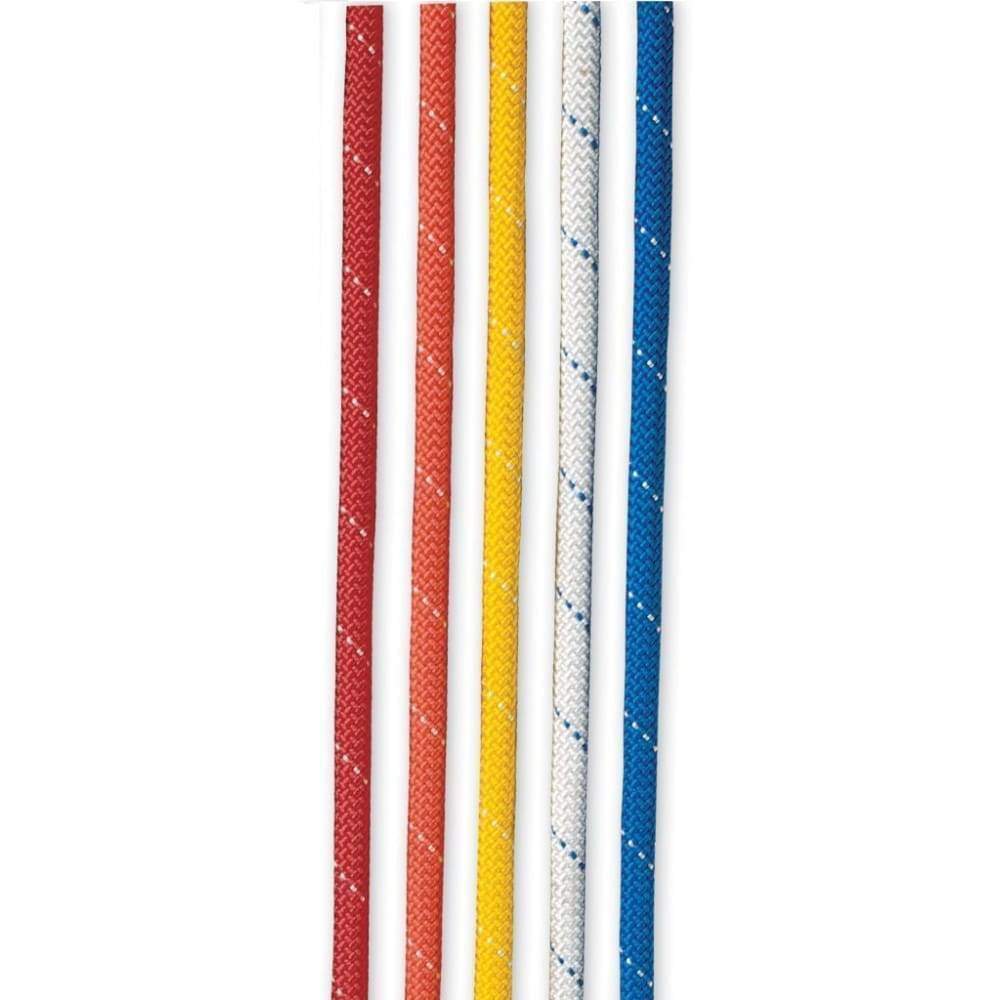

Two options of this kit are available based on the desired rope size. The 11 mm (7/16 in) Kit includes all the items below plus the 11 mm CLUTCH, three 200 ft lengths of 11 mm G11™ rope, and the 11 mm CSR2 Pulley System. The 13 mm Kit includes all the items below plus the 13 mm CLUTCH, three 200 ft lengths of 12.5 mm Static-Pro™ rope, and the 12.5 mm CSR2 Pulley System. In addition to the equipment provided in this CSR Rigging Kit, CMC recommends outfitting each team member with the gear in the Confined Space Entrant Personal Kit.

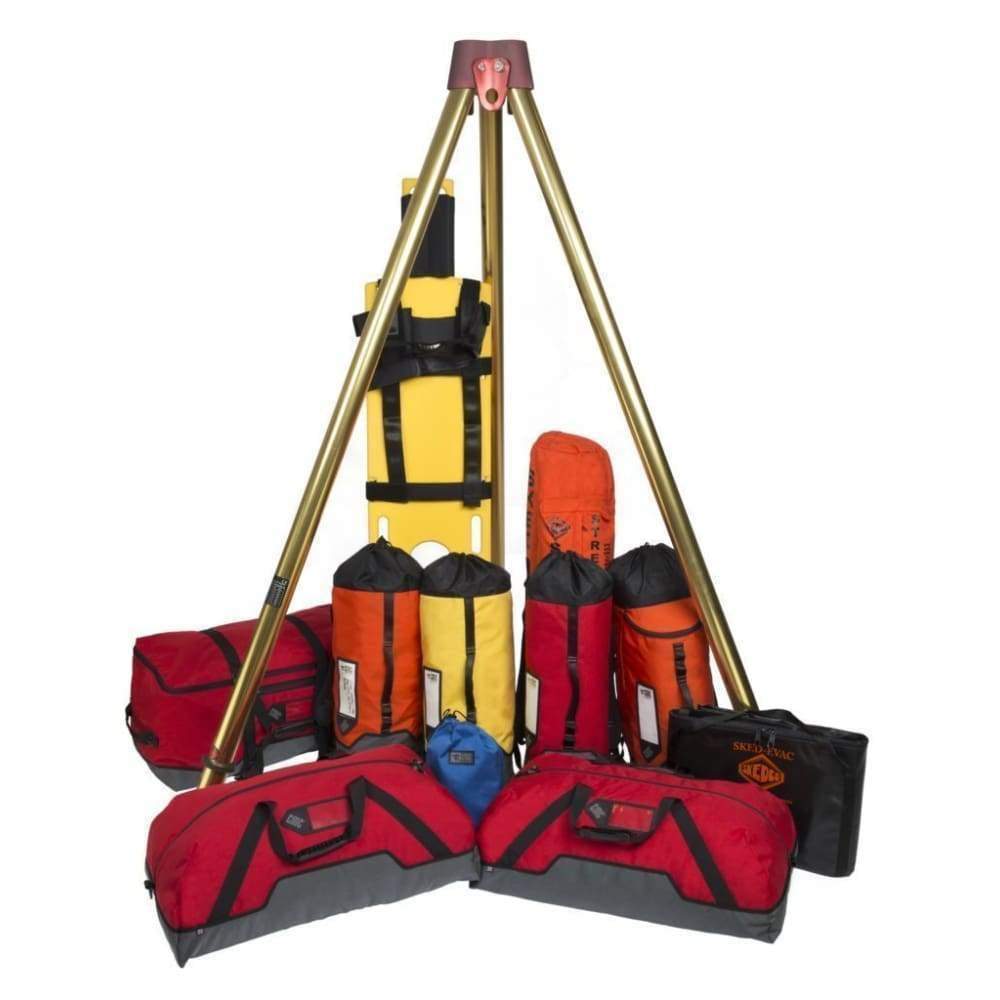

Kits come with bags and packs for easy equipment organization, storage, transport, and deployment. For a detailed breakdown of kit components, download the Custom Product Sheet under the Resources Tab on this page. Additional versions of this kit are available upon request, including the MPD Kit. Previous CMC Kits are also available upon request. Please contact Customer Support to discuss these options.
Kit Contents:

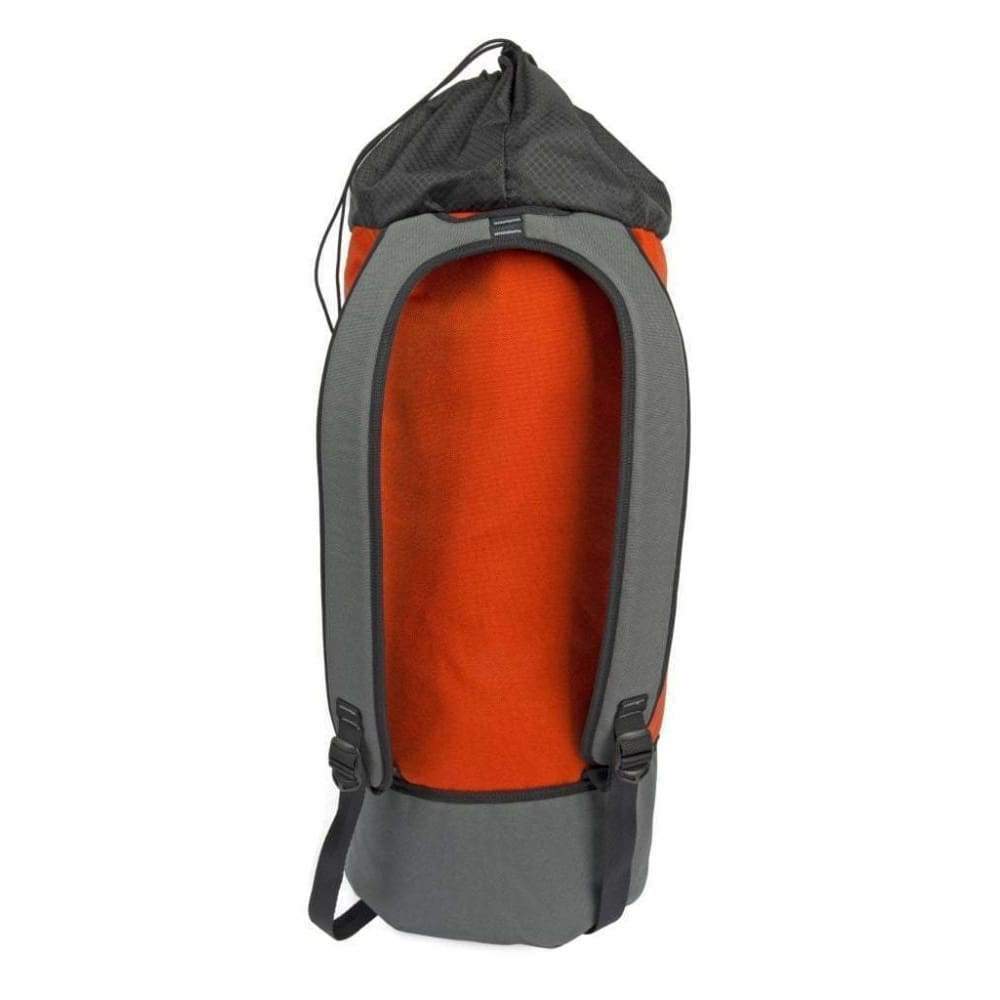

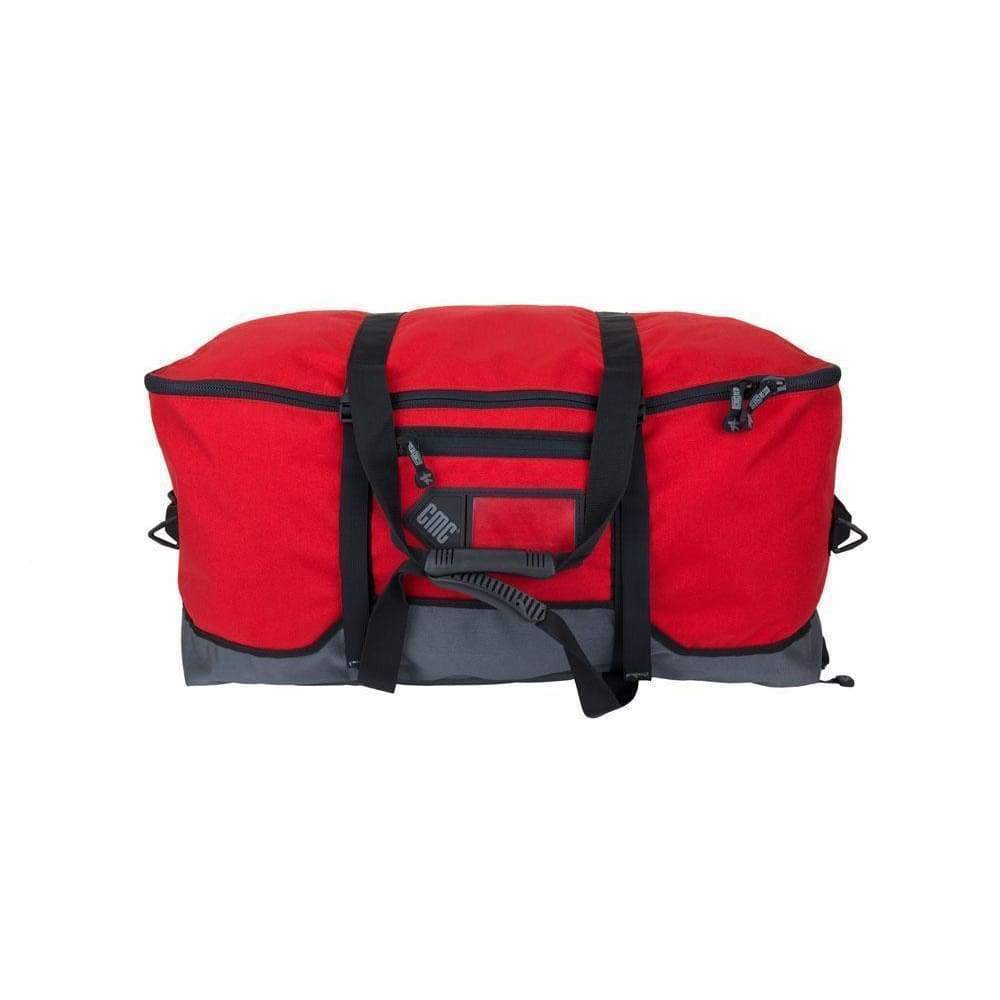

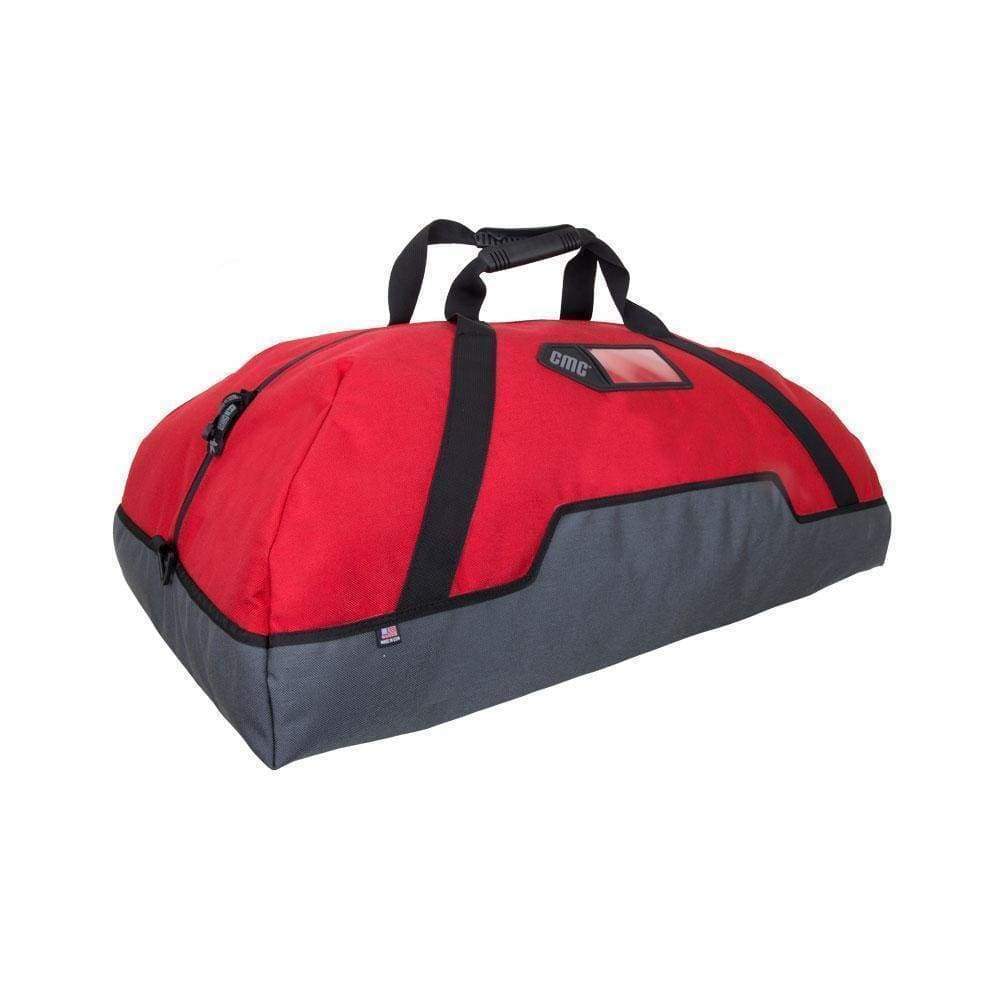

- Bags / Packs
- Technical Gear

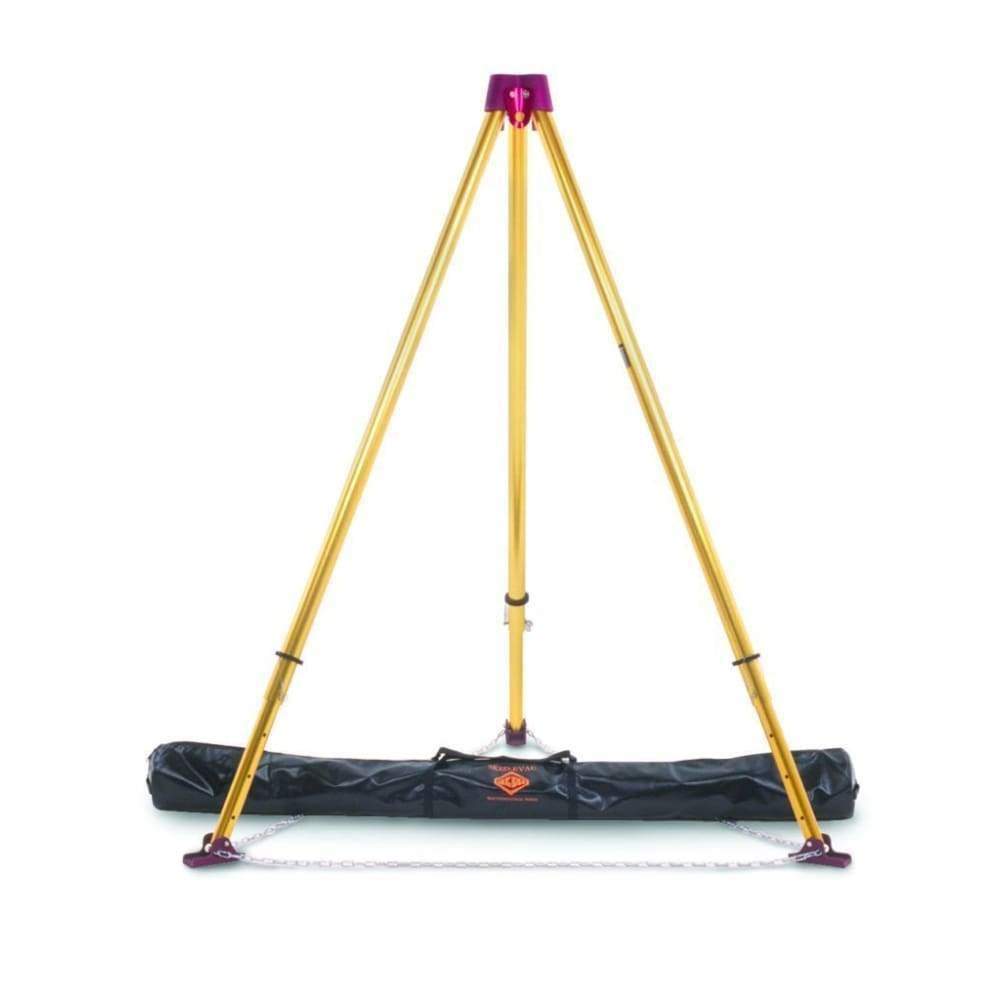

- TRIPOD, TRISKELION, CMC

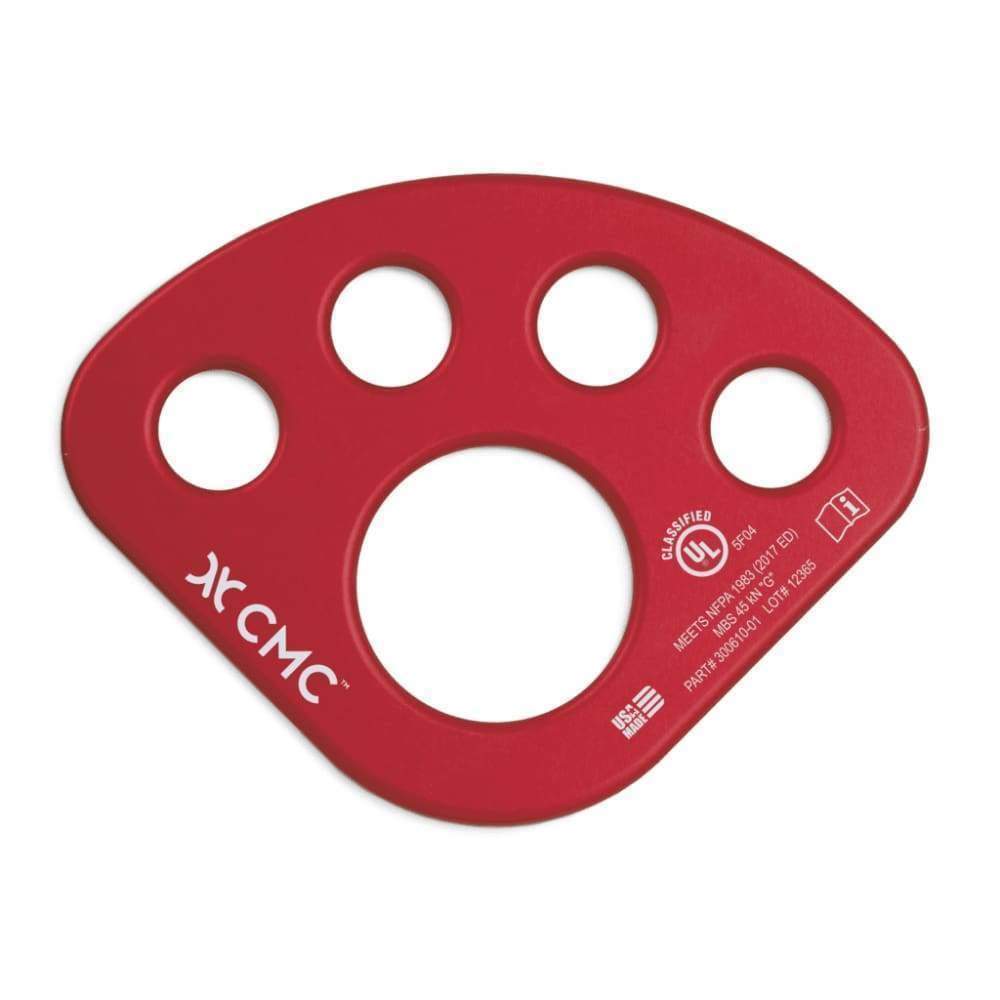

- ANCHOR PLATE, ALUMINUM RED

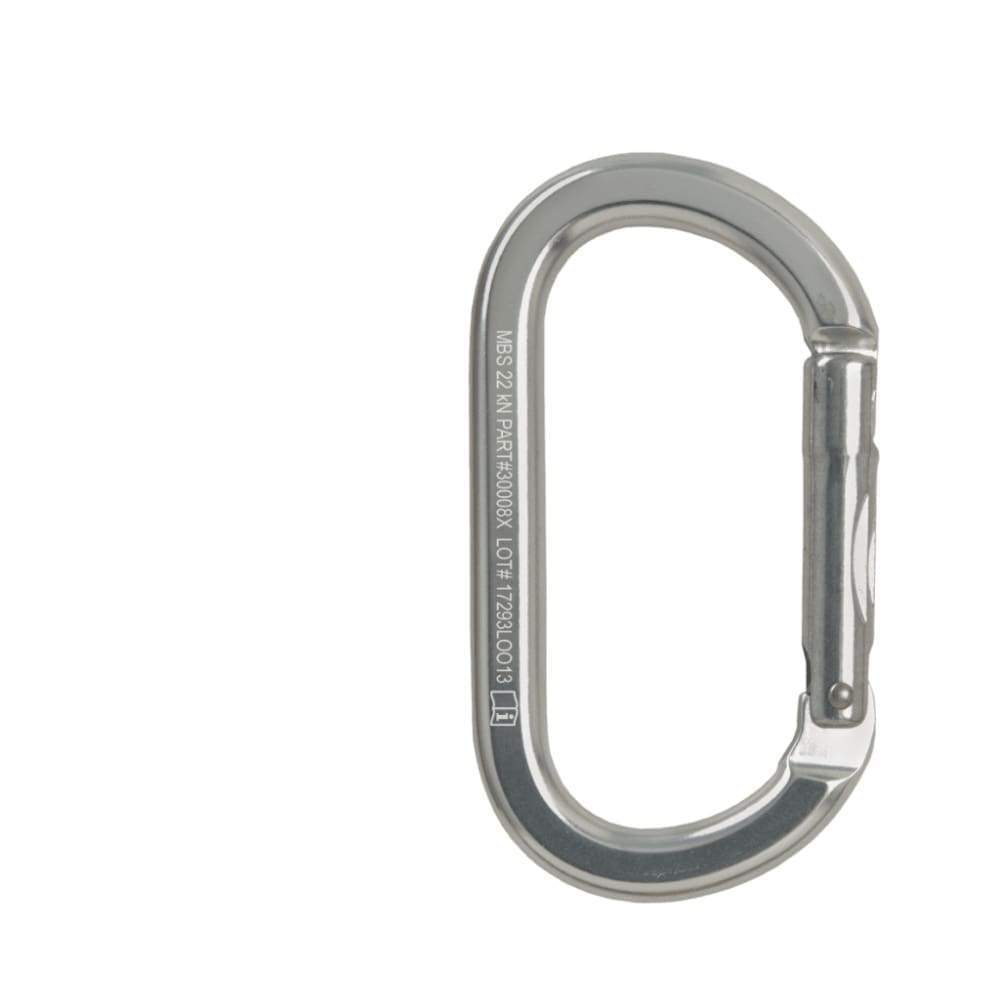

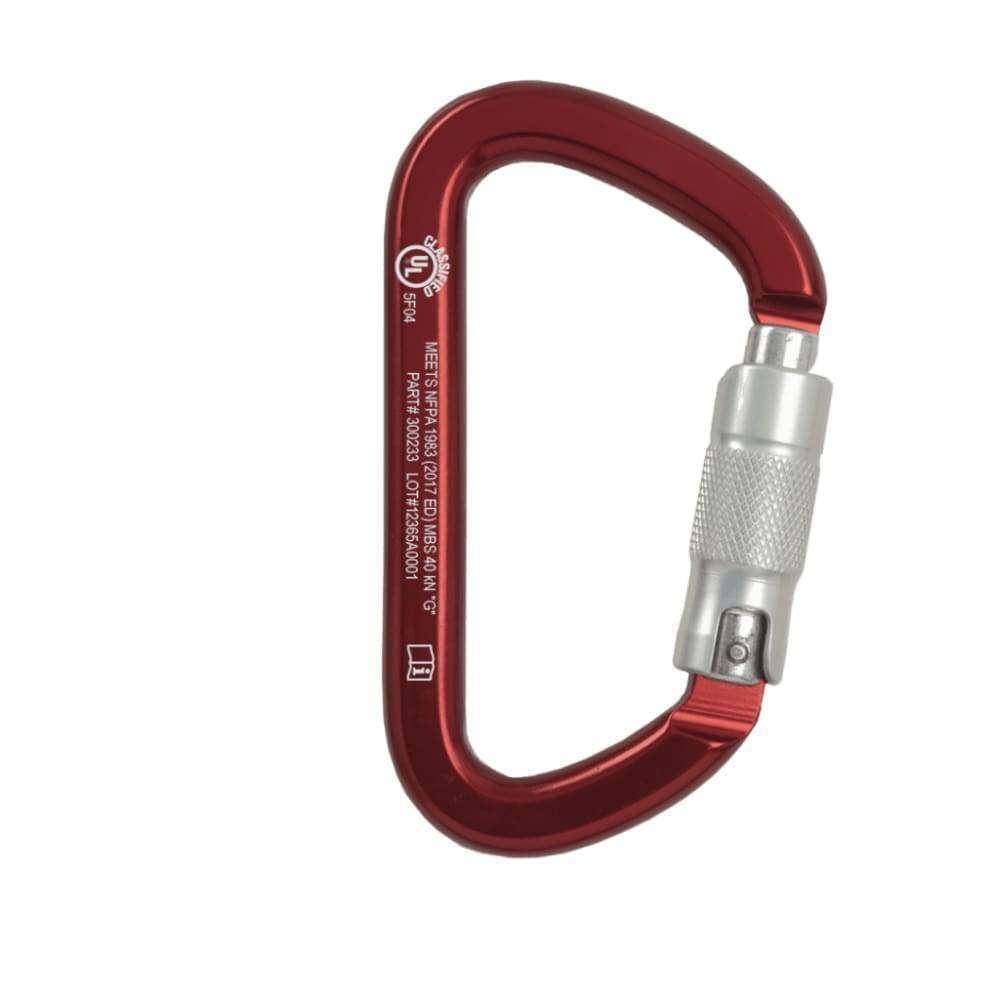

- CARABINER, PS LOCK BRT, CMC (18)

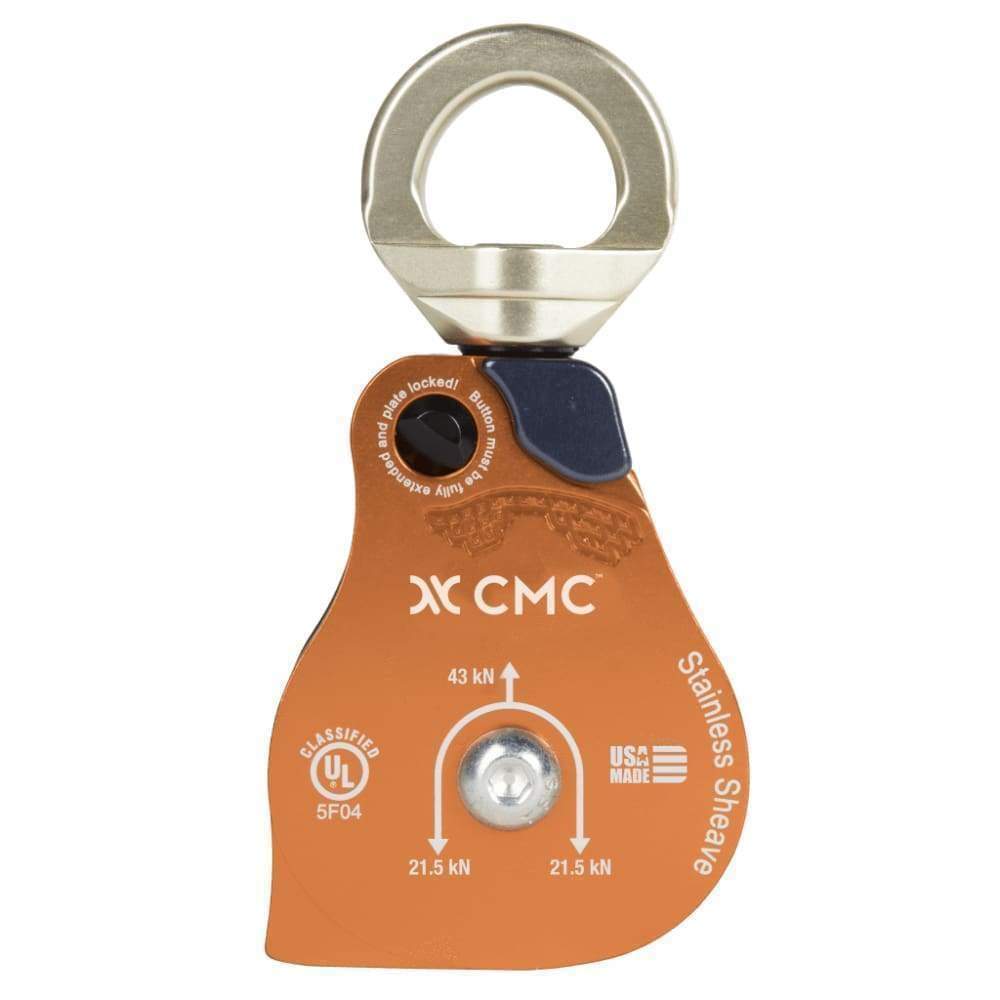

- PULLEY, PROSWIVEL 1.5″, PMP SS (2)
- WEB, 1″ TUBULAR, RED (5x 20 ft)
- WEB, 1″ TUBULAR, YELLOW (4x 12 ft)

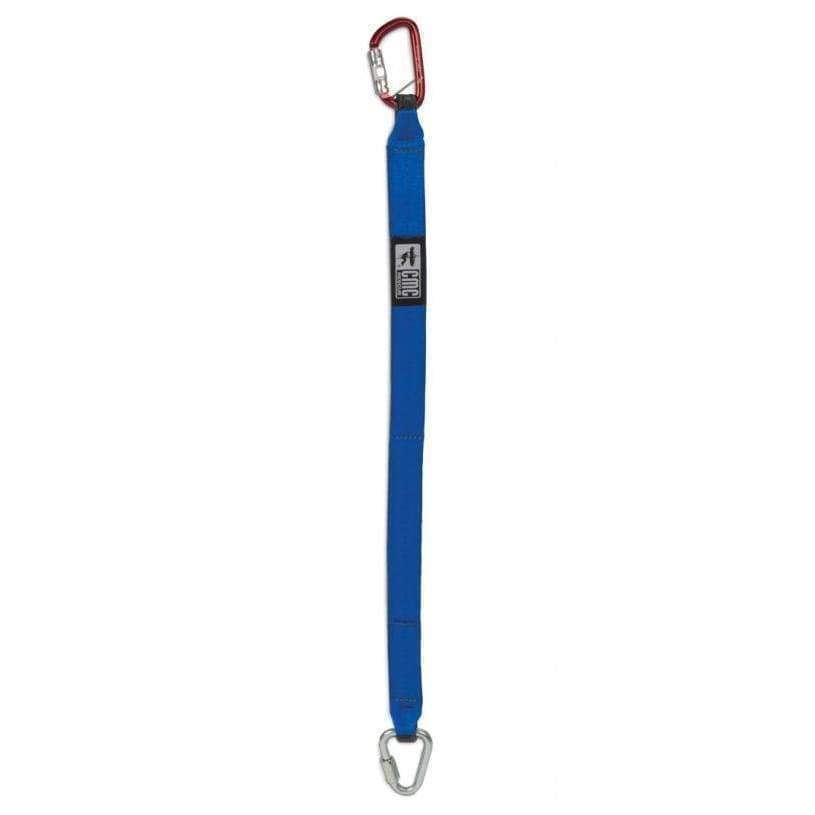

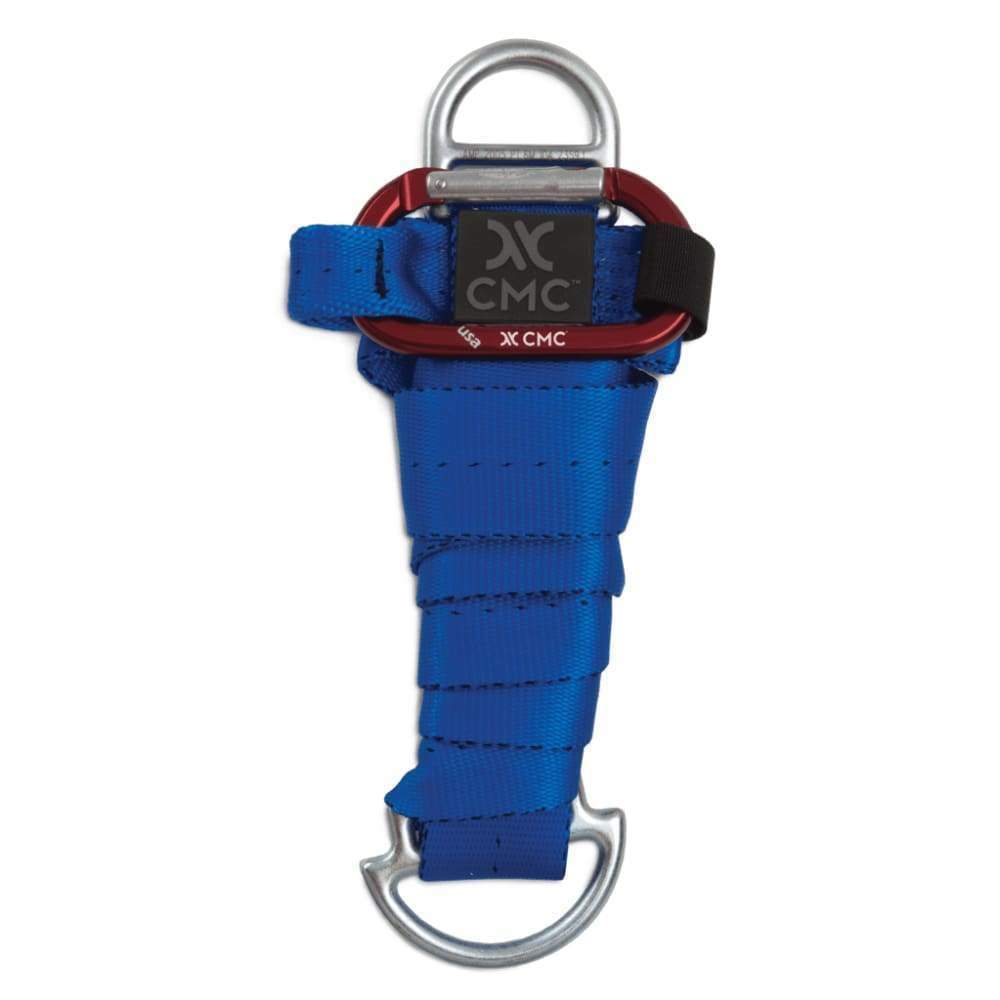

- SL STRAP, FASTLINK ANCHOR MD (1)

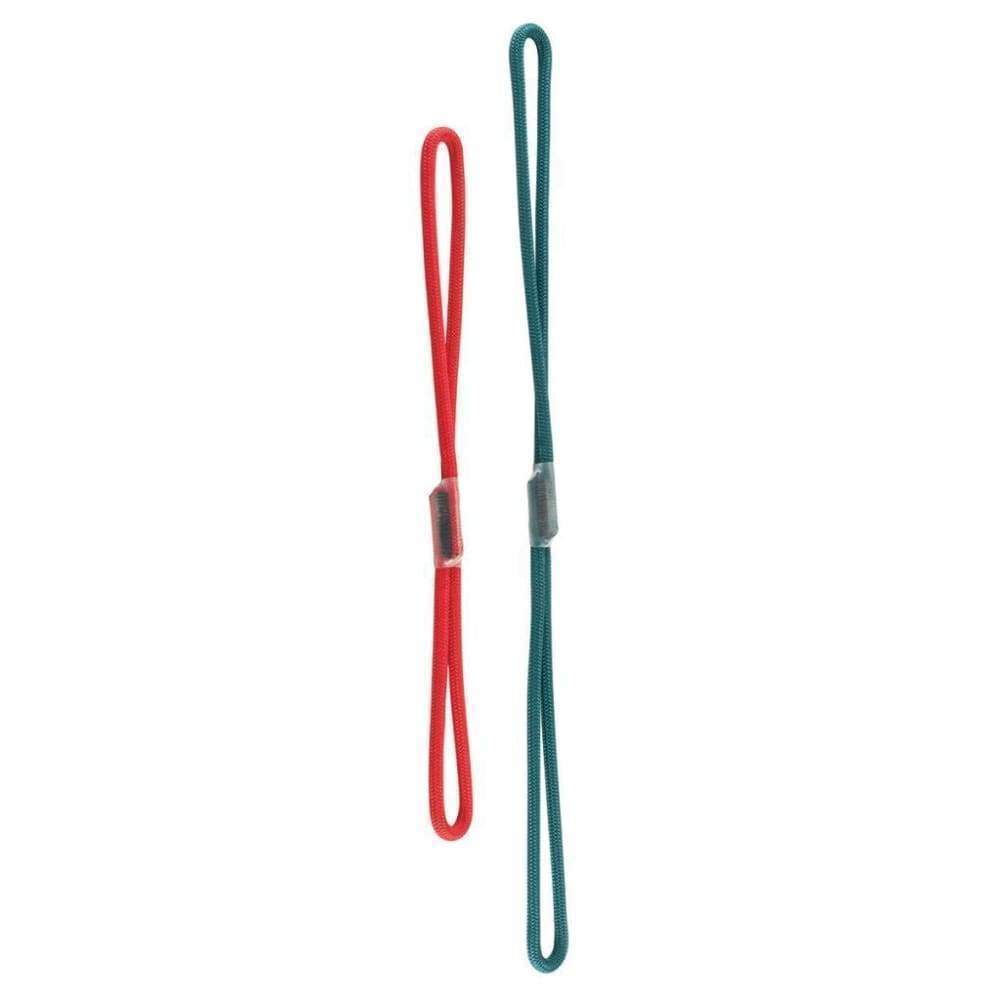

- PRUSIK, SEWN LOOP 8MM RED 18″ (4)
- MANUAL, CONFINED SPACE RESCUE

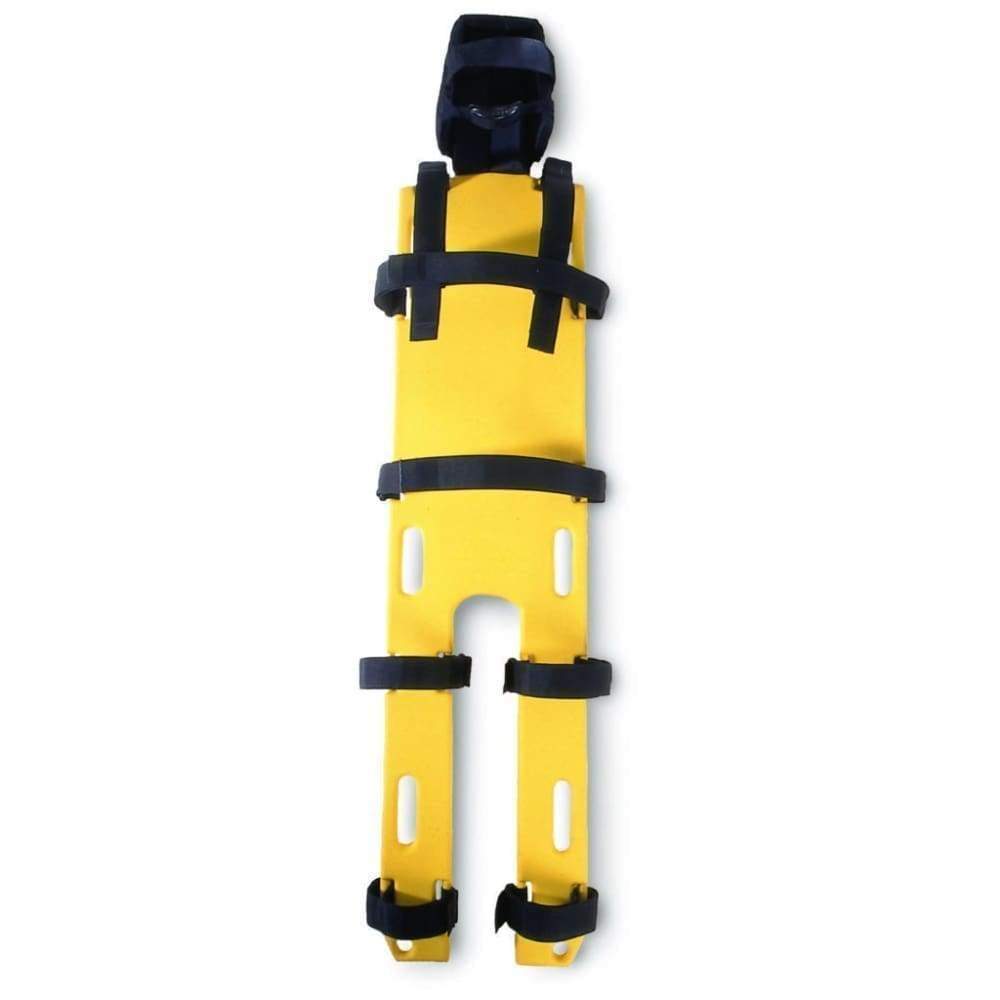

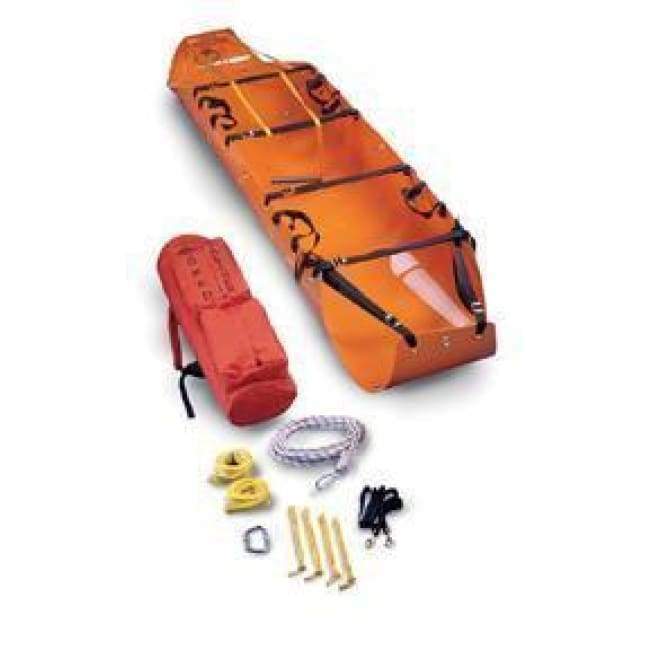

- Patient Packaging

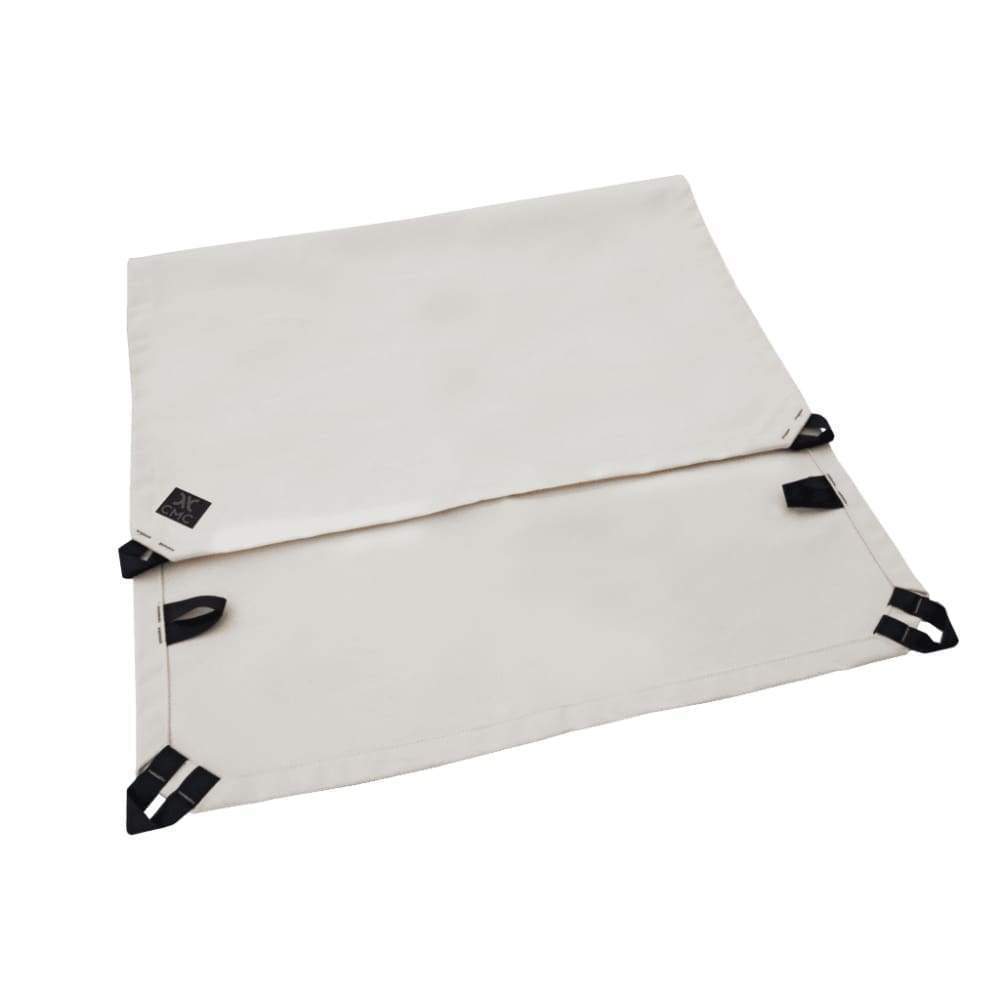

- Edge Protection
