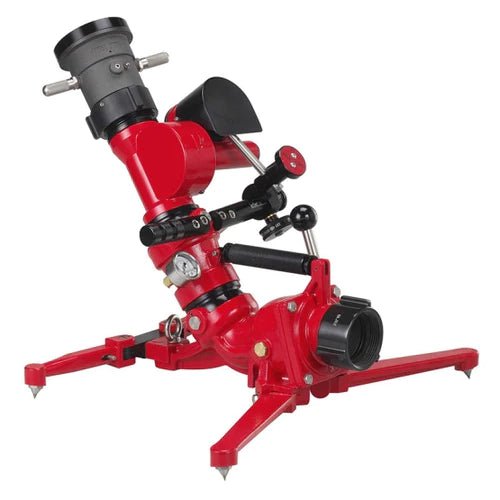

The 2-1/2" Single-Inlet Portable Oscillating Ground Monitor is designed to deliver an effective sweeping water stream for fire attack, exposure protection, cooling operations, and hazardous materials incidents. Its water-driven oscillation system automatically moves the stream through a selectable coverage pattern, allowing firefighters to protect large areas while conserving manpower and maintaining consistent water application.

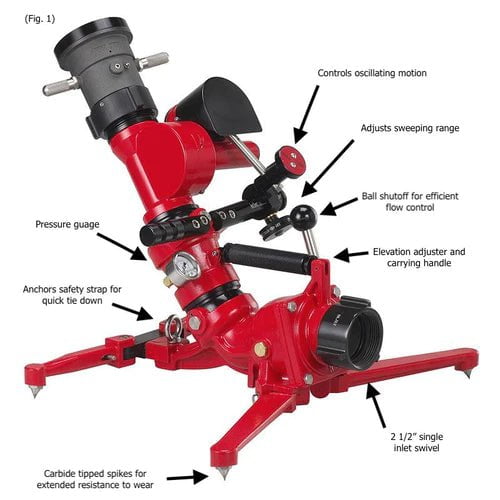

Built from durable alloy materials with a corrosion-resistant powder-coated finish, this monitor features a single swivel inlet, integrated ball shutoff, and built-in pressure gauge for efficient flow control. The oscillation mechanism can be disengaged for manual operation, providing maximum flexibility for changing incident conditions. Carbide-tipped ground spikes, a low-profile design, and safety strap anchor points ensure excellent stability during operation, while the large carrying handle allows for easy transport and deployment.
Features
• Designed for fire attack, exposure protection, cooling, and hazmat operations
• Produces an effective sweeping water stream through automatic oscillation
• Single swivel inlet design
• Water-driven turbine oscillates the nozzle automatically
• Adjustable oscillation settings of 12.5°, 15°, 20°, or 25° to either side of center
• On/Off control allows oscillation to be stopped at any position
• Oscillation mechanism can be disengaged for manual horizontal operation
• Elevation adjustable from 20° to 60° during unmanned operation
• Carbide-tipped ground spikes provide excellent stability and long-term durability
• Integrated pressure gauge and ball shutoff for efficient flow control
• Low-profile design improves ground stability and safety
• Safety strap anchor points allow quick tie-down deployment
• Durable powder-coated finish enhances corrosion and wear resistance
• Large carrying handle for convenient transport and setup
Specifications
• Model: 4625-1
• Product Type: Portable Oscillating Ground Monitor
• Maximum Flow Rate: 500 GPM (1900 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Inlet Size: 2-1/2" (65 mm)
• Outlet Size: 2-1/2" (65 mm)
• Control Type: Manual with Water-Driven Oscillation
• Vertical Travel: 20° to 60° Above Horizontal
• Oscillation Settings: 12.5°, 15°, 20°, or 25° Either Side of Center
• Material: Alloy
• Finish: Red Powder Coating
• Weight: 28 lbs. (13 kg)
