1-1/2" Selectable Gallonage Nozzle (30-60-95-125 GPM)

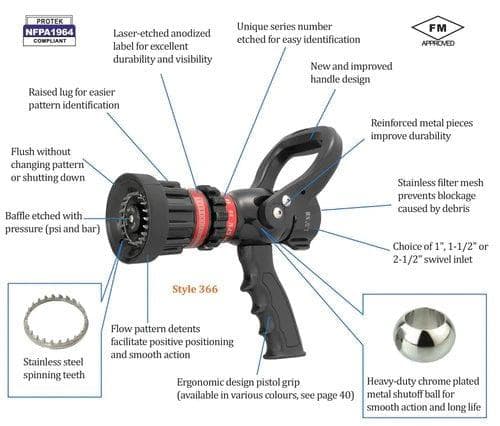

• Combination pattern nozzles with multiple flow settings.
• Superb wide fog pattern for optimum fire fighter protection.
• Stainless steel spinning teeth.
• Heavy-duty chrome plated metal shutoff ball for smooth action and long life.
• Flow pattern detents facilitate positive positioning and smooth action.
• Raised lug for easier pattern identification.
• Laser-etched anodized label for excellent durability and visibility.
• Flush without changing pattern or shutting down.
• Ergonomic design pistol grip.
• Continuous female swivel inlet with stainless steel strainer.
• Minimal maintenance reflected in robust design, precision machining and quality materials.
• NFPA 1964 Compliant
• FM Approved
• NH Threads Only

Specifications

• Style: 1366
• Flow Rate: 30-60-95-125 GPM (115-230-360-475 LPM)
• Operating Pressure: 100 psi (7 bar)
• Waterway: 1”
• Inlet: 1 1/2" (25 mm) – NH or NPSH
• Length: 9.0" (228 mm)
• Weight: 3.9 lbs (1.7 kg)
