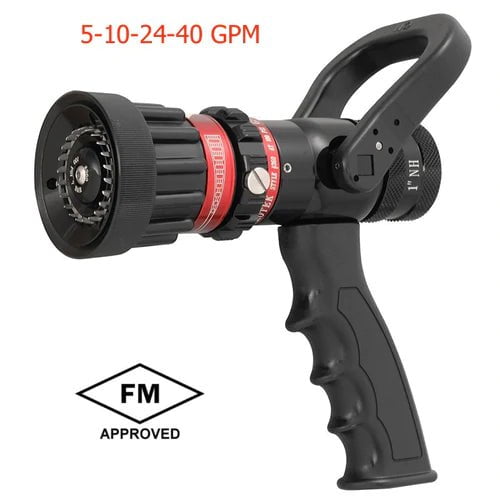

The 1" Wildland Forestry Selectable Flow Nozzle is a lightweight, versatile combination nozzle designed for wildland firefighting, forestry operations, brush fire suppression, and high-pressure applications. Featuring four selectable flow settings, this nozzle allows firefighters to quickly adjust water delivery to match changing fire conditions while maintaining excellent stream quality and firefighter protection.
Built with durable, precision-machined components, the nozzle features stainless steel spinning teeth that produce a wide, dense fog pattern for effective cooling and suppression. The heavy-duty chrome-plated shutoff ball, ergonomic pistol grip, and continuous swivel inlet provide smooth operation and superior handling, while the flush capability allows debris to be cleared without interrupting water flow. Designed for demanding environments, the nozzle is suitable for operating pressures up to 580 PSI.
Features
• Selectable flow rates of 5, 10, 24, and 40 GPM
• Combination straight stream and adjustable fog pattern operation
• Wide, dense fog pattern for enhanced firefighter protection
• Stainless steel spinning teeth for superior fog pattern performance
• Suitable for high-pressure applications up to 580 PSI (40 BAR)
• Heavy-duty chrome-plated shutoff ball for smooth operation and long service life
• Flow pattern detents provide positive positioning and smooth adjustment
• Raised lug for easy pattern identification while wearing gloves
• Laser-etched anodized label for enhanced durability and visibility
• Flushes debris without changing pattern or shutting down flow
• Ergonomic pistol grip for improved handling and control
• Continuous female swivel inlet with stainless steel strainer
• Precision-machined components require minimal maintenance
• NFPA 1964 compliant
Specifications
• Style: 1360
• Product Type: Wildland Forestry Selectable Flow Nozzle
• Flow Rates: 5, 10, 24, and 40 GPM (19, 37, 90, and 150 LPM)
• Operating Pressure: 100 PSI (7 BAR) and up to 580 PSI (40 BAR)
• Waterway Size: 3/4"
• Inlet Size: 1" (25 mm) NH or NPSH
• Teeth Type: Stainless Steel Spinning
• Length: 7.4" (190 mm)
• Weight: 2.3 lbs. (1.1 kg)
• Compliance: NFPA 1964 Compliant
