The Crestlight LED is a low-profile scene and roadway lighting solution designed specifically for emergency vehicles, utility fleets, and specialty response apparatus. Engineered to provide exceptional scene illumination without blinding oncoming traffic or personnel working nearby, the Crestlight combines flood lighting, low-beam optics, and optional DOT marker lights into a single streamlined housing.
With a profile of less than 2 inches, the Crestlight is one of the lowest-profile scene lights available. Independent control of the flood, low-beam, and marker light functions allows operators to tailor illumination to the situation. The integrated low-beam optics provide controlled lighting for roadway operations and vehicle scenes, while the narrow flood pattern delivers powerful scene illumination exactly where it is needed.
Features
• Ultra-low-profile scene lighting system
• Less than 2" overall profile height
• White narrow flood illumination
• Dedicated white low-beam optics
• Optional integrated amber DOT marker lights
• Independent control of flood, low-beam, and marker light functions
• Ideal for roadway incidents and vehicle scene operations
• Designed to minimize glare for oncoming traffic
• Reduces light exposure to personnel working opposite the scene
• Available in black or white powder-coated housings
• Streamlined design for apparatus cab and vehicle mounting
• Suitable for fire apparatus, rescue vehicles, utility fleets, and specialty response vehicles
Lighting Features
• Narrow flood beam for scene illumination
• Dedicated low-beam optics for controlled roadway lighting
• Industry-leading low-profile design
• Optional amber DOT marker light integration
• Independent switching capability for each lighting function
• Balanced illumination improves scene safety and visibility
• Designed for vehicle-side and roadside operations
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: Crestlight LED
• Product Type: Low-Profile Scene and Roadway Light
• Housing Options:
• Black Powder Coat
• White Powder Coat
• Lighting Functions:
• White Narrow Flood
• White Low Beam
• Amber DOT Marker (CLA100 Models)
• Control: Independent Control of Flood, Low Beam, and Marker Lights

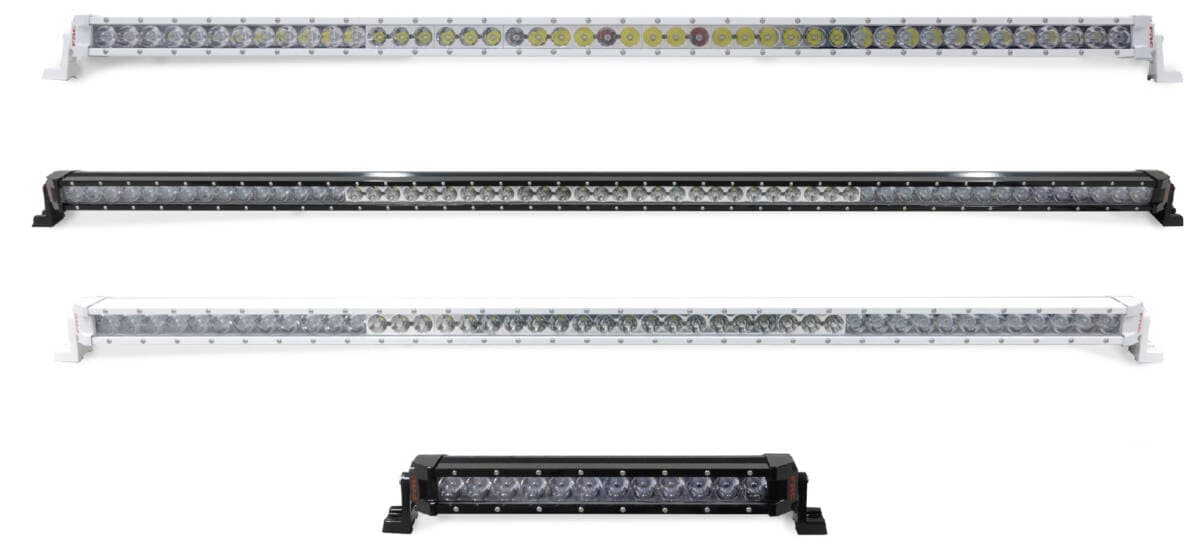

Available Models
• CLA101-A68
• Length: 71.6"
• Configuration: White Narrow Flood & White Low Beam
• Amber DOT Marker: No
• Raw Lumens: 28,800
• Effective Lumens: 17,800
• CLA101-A62
• Length: 65.2"
• Configuration: White Narrow Flood & White Low Beam
• Amber DOT Marker: No
• Raw Lumens: 26,250
• Effective Lumens: 16,100
• CLA100-A49
• Length: 52.5"
• Configuration: White Narrow Flood, White Low Beam, Amber DOT Marker
• Raw Lumens: 20,180
• Effective Lumens: 12,500
• CLA101-A49
• Length: 52.5"
• Configuration: White Narrow Flood & White Low Beam
• Amber DOT Marker: No
• Raw Lumens: 20,180
• Effective Lumens: 12,500
• CLA100-A14
• Length: 17.5"
• Configuration: White Low Beam Only
• Amber DOT Marker: No
• Raw Lumens: 4,925
• Effective Lumens: 2,800
• CLA101-A28
• Length: 30.25"
• Configuration: White Narrow Flood & White Low Beam
• Amber DOT Marker: No
• Raw Lumens: 9,850
• Effective Lumens: 5,600
Applications
• Fire Apparatus Cab Lighting
• Roadway Incident Operations
• Rescue Vehicles
• Utility Service Vehicles
• Command Vehicles
• Traffic Management Operations
• Emergency Scene Lighting
Note: The Crestlight LED combines scene lighting, roadway illumination, and optional DOT marker lighting into one ultra-low-profile assembly, providing controlled visibility that enhances safety without creating excessive glare for traffic or emergency personnel.
