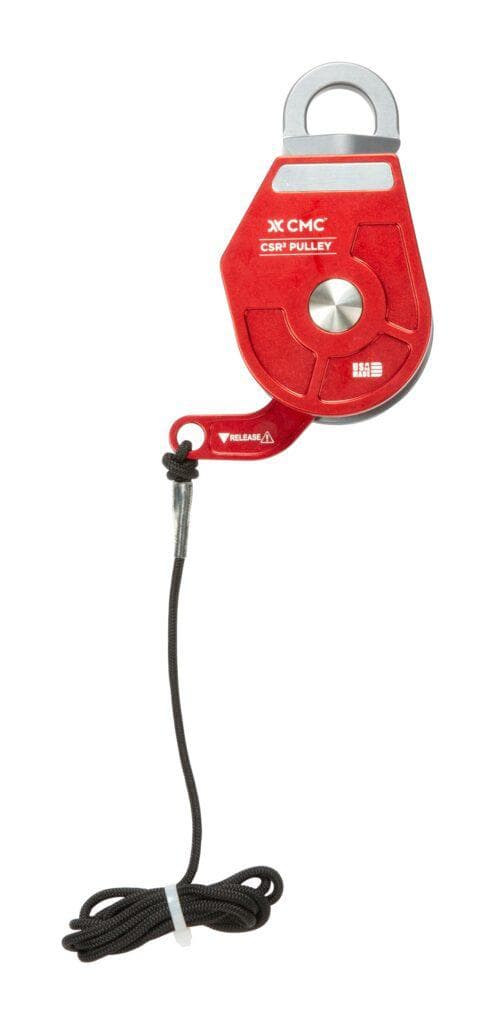

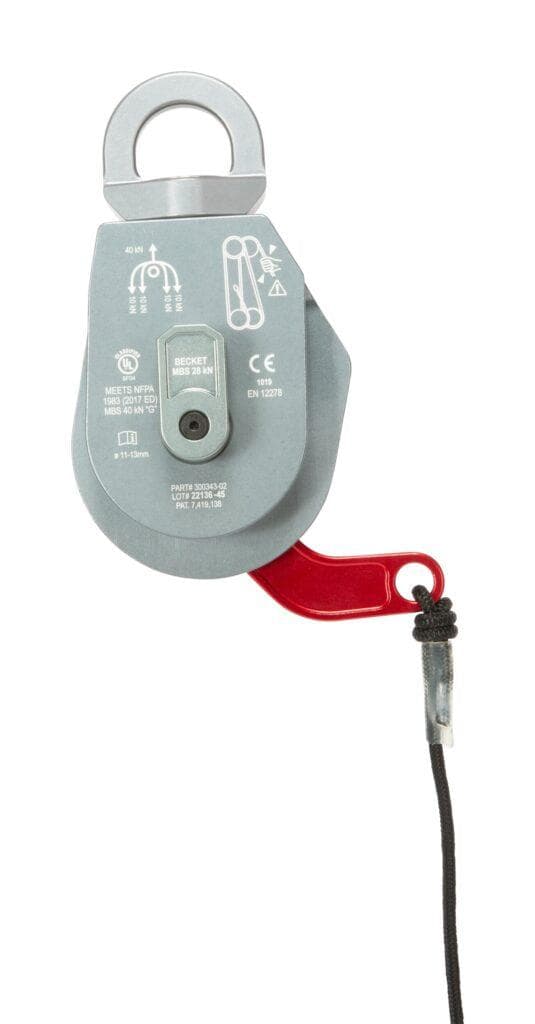

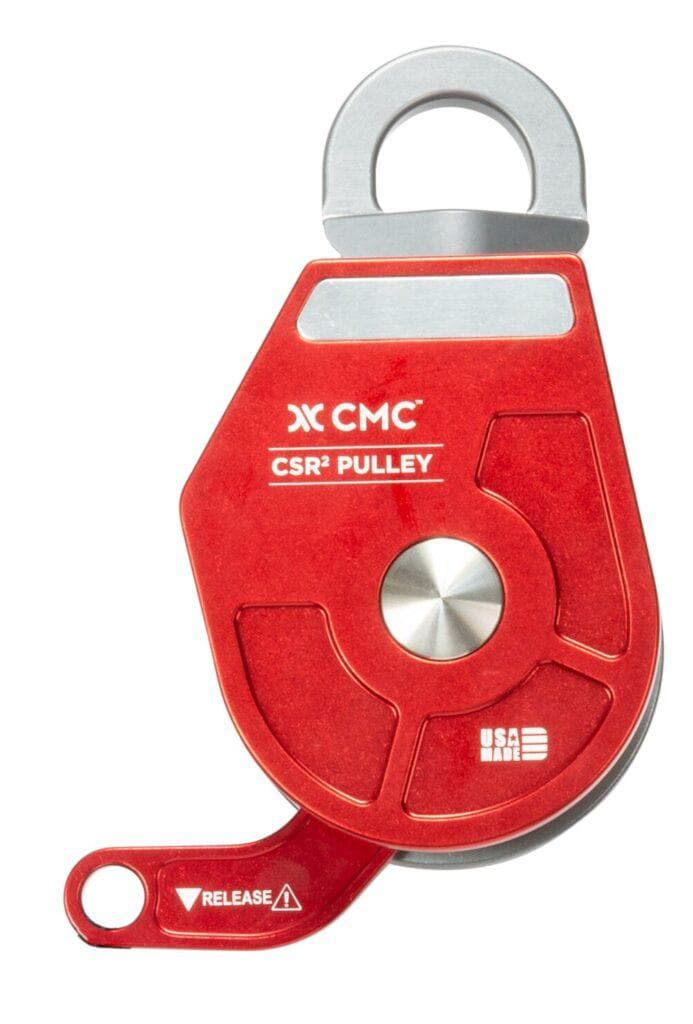

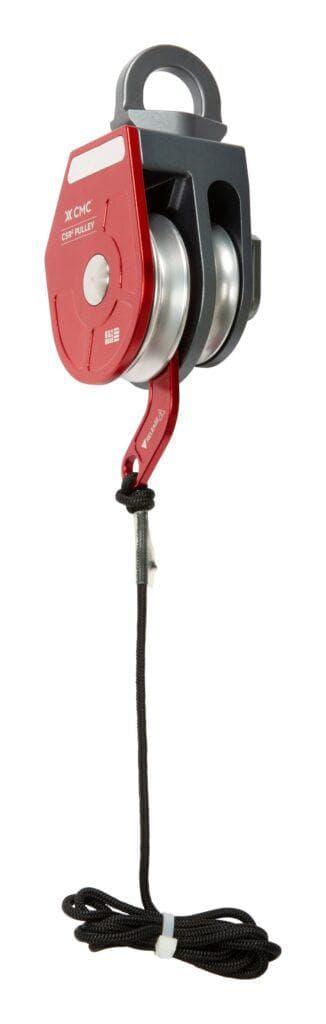

The CSR2 Pulley is a high-strength confined space rescue pulley engineered for raising, lowering, and hauling operations in rescue, industrial, and technical rope access environments. Classified to both NFPA and EN standards, the CSR2 combines lightweight construction with exceptional strength and efficiency while accommodating life safety ropes from 11 mm to 13 mm in diameter.
Designed with CMC's patented locking system, the CSR2 eliminates the need for a toothed cam or Prusik, allowing the system to be safely released while under load—even when fully collapsed. An integrated thrust-bearing swivel automatically aligns the pulley with the load, reducing torque and improving system efficiency. Machined from a solid block of aircraft-grade aluminum, the CSR2 features sealed bearings, anodized aluminum sheaves, and a removable becket cover for use with sewn rope terminations.
Features
• Patented locking system allows safe release while under load
• Compatible with 11 mm to 13 mm life safety rope
• Integral thrust-bearing swivel reduces torque and improves efficiency
• Strong, lightweight design for confined space and technical rescue operations
• Large attachment points accommodate rescue-size carabiners
• High-strength aluminum side plates and anodized aluminum sheaves
• Sealed bearings provide smooth operation and high efficiency
• Side becket location maximizes lift height and system retraction
• Removable becket cover allows use with sewn rope terminations
• Machined from solid aircraft-grade aluminum for durability and strength
• Made in the USA
• Patent No. 7,419,138
Specifications
• Manufacturer: CMC
• Product Type: Confined Space Rescue Pulley
• Item Number: 300343
• Weight: 1.1 kg (2.5 lb)
• Sheave Tread Size: 57 x 13 mm (2-1/4 x 1/2 in)
• Color: Red / Gray
• Compatible Rope Diameter: 11 mm - 13 mm (7/16 in - 1/2 in)
• Minimum Breaking Strength (MBS): 40 kN (8,992 lbf)
• Classification: NFPA General Use; EN 12278
• Country of Origin: USA
