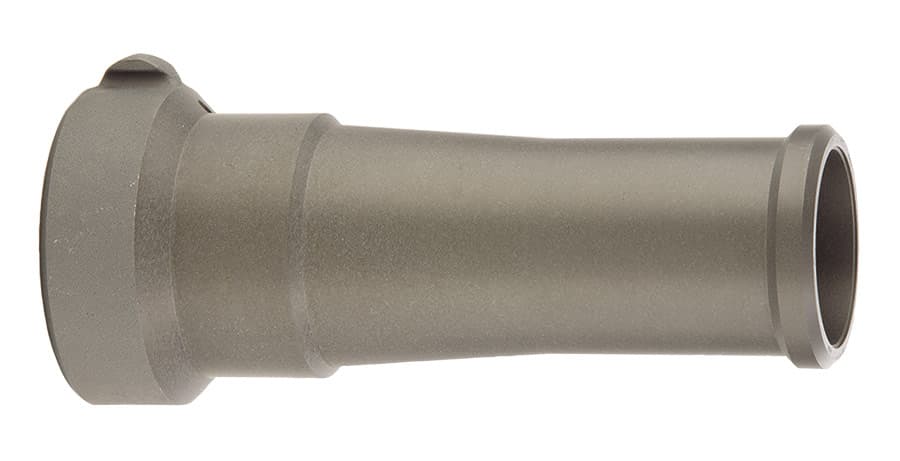

The 181-3A Deluge Tip is a high-capacity smooth bore master stream tip designed for large-volume firefighting operations requiring exceptional reach and water delivery. Engineered to flow nearly 2,400 GPM, this deluge tip is ideal for industrial fire protection, petrochemical facilities, marine applications, and high-flow monitor systems where maximum water application is critical.
Featuring an integrated stream shaper, the 181-3A produces a highly efficient, concentrated stream that enhances reach and stream quality while maximizing firefighting effectiveness. Its lightweight aluminum construction and hard-coated finish provide outstanding durability and corrosion resistance, making it well-suited for demanding environments and continuous service applications.
Features
• High-capacity smooth bore deluge tip for master stream operations
• Built-in stream shaper enhances stream quality and reach
• Delivers exceptional water flow for large-scale firefighting incidents
• Lightweight aluminum construction reduces overall monitor weight
• Hard-coated finish provides superior durability and corrosion resistance
• Compatible with high-flow monitors and master stream devices
• Designed for industrial, marine, municipal, and petrochemical applications
• Rugged construction built for demanding firefighting environments
Specifications
• Manufacturer: Elkhart Brass
• Model: 181-3A Deluge Tip
• Product Type: Smooth Bore Master Stream Tip
• Discharge Size: 3"
• Flow Rating: 2,391 GPM (9,050 LPM)
• Operating Pressure: 80 PSI (5.5 BAR)
• Inlet Connection: 3.5" Female Inlet
• Construction: Aluminum
• Finish: Hard-Coated Aluminum
• Stream Shaper: Integrated
• Applications: Master Stream Operations, Industrial Fire Protection, Petrochemical Facilities, Marine Firefighting, and Large-Volume Fire Suppression Operations
