The Chief XD® Low-Range Handline Nozzle is a rugged fixed-flow fog nozzle designed to deliver reliable performance and a lifetime of service in demanding firefighting environments. Built for firefighters who prefer the simplicity and dependability of a fixed-flow nozzle, the Chief XD combines durable construction, excellent stream quality, and easy operation into one proven package.
Featuring a forged metal bale handle and available with either spinning metal teeth or fixed molded urethane teeth, the Chief XD is engineered to withstand years of hard use. With no stickers to peel, fade, or scratch, critical information remains permanently visible. The low-range configuration is ideal for booster lines, wildland operations, overhaul work, exposure protection, and lower-flow attack line applications.
Features
• Fixed-flow fog nozzle designed for dependable firefighting performance
• Low-range configuration ideal for lower-flow applications
• Forged metal bale handle for exceptional durability
• Available with spinning metal teeth or fixed molded urethane teeth
• No stickers to peel, fade, or scratch
• Free swivel inlet helps reduce hose twisting during operation
• Durable XD® construction built for long service life
• Excellent stream quality and pattern control
• Available in multiple flow configurations to meet operational requirements
• Designed for municipal, industrial, wildland, and specialty firefighting applications
Available Flow Rates
• 15 GPM (60 LPM) at 100 PSI (7 BAR)
• 30 GPM (115 LPM) at 100 PSI (7 BAR)
• 45 GPM (170 LPM) at 100 PSI (7 BAR)
• 60 GPM (230 LPM) at 100 PSI (7 BAR)

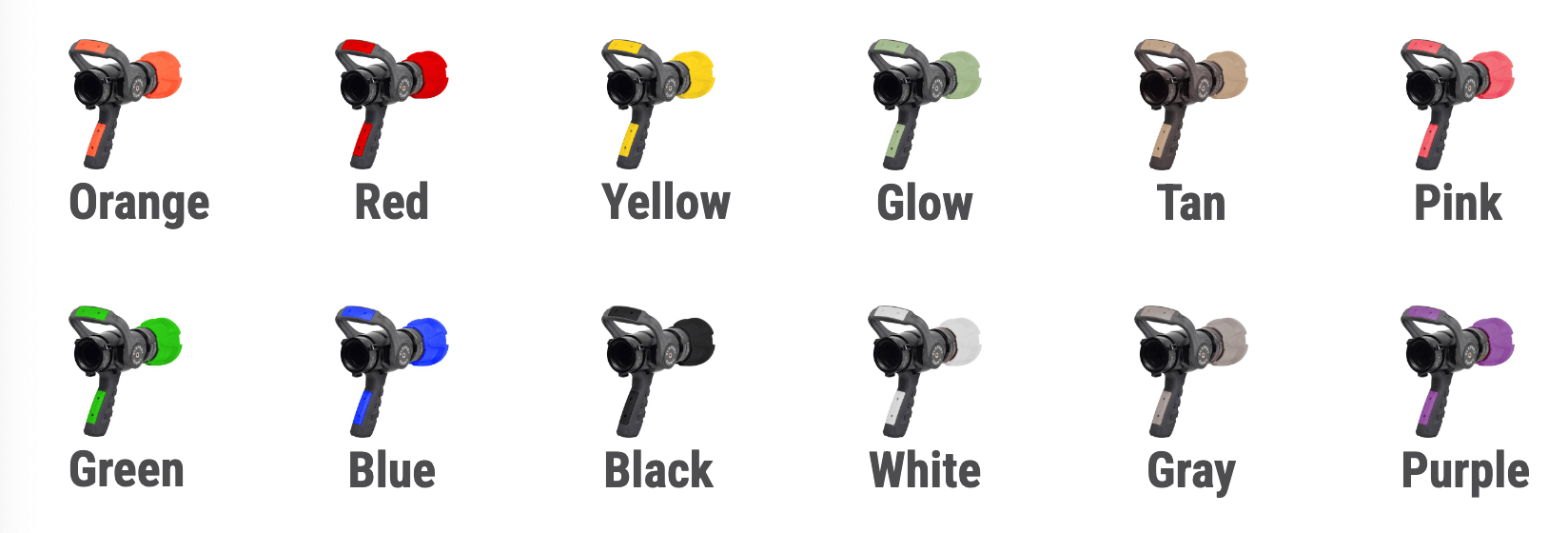

Available Colors
• Orange
• Red
• Yellow
• Glow
• Tan
• Pink
• Green
• Blue
• Black
• White
• Gray
• Purple
Specifications
• Manufacturer: Elkhart Brass
• Product Line: Chief XD®
• Product Type: Fixed Flow Fog Nozzle
• Configuration: Low-Range
• Inlet Connection: 1.0" Free Swivel Inlet
• Waterway Diameter: 1.0"
• Operating Pressure: 100 PSI (7 BAR)
• Flow Options: 15, 30, 45, and 60 GPM
• Handle Type: Forged Metal Bale Handle
• Teeth Options: Spinning Metal Teeth or Fixed Molded Urethane Teeth
• Color Options: 12 Available Colors
Applications
• Booster Line Operations
• Wildland Firefighting
• Brush Fire Response
• Exposure Protection
• Overhaul Operations
• Low-Flow Attack Line Applications
