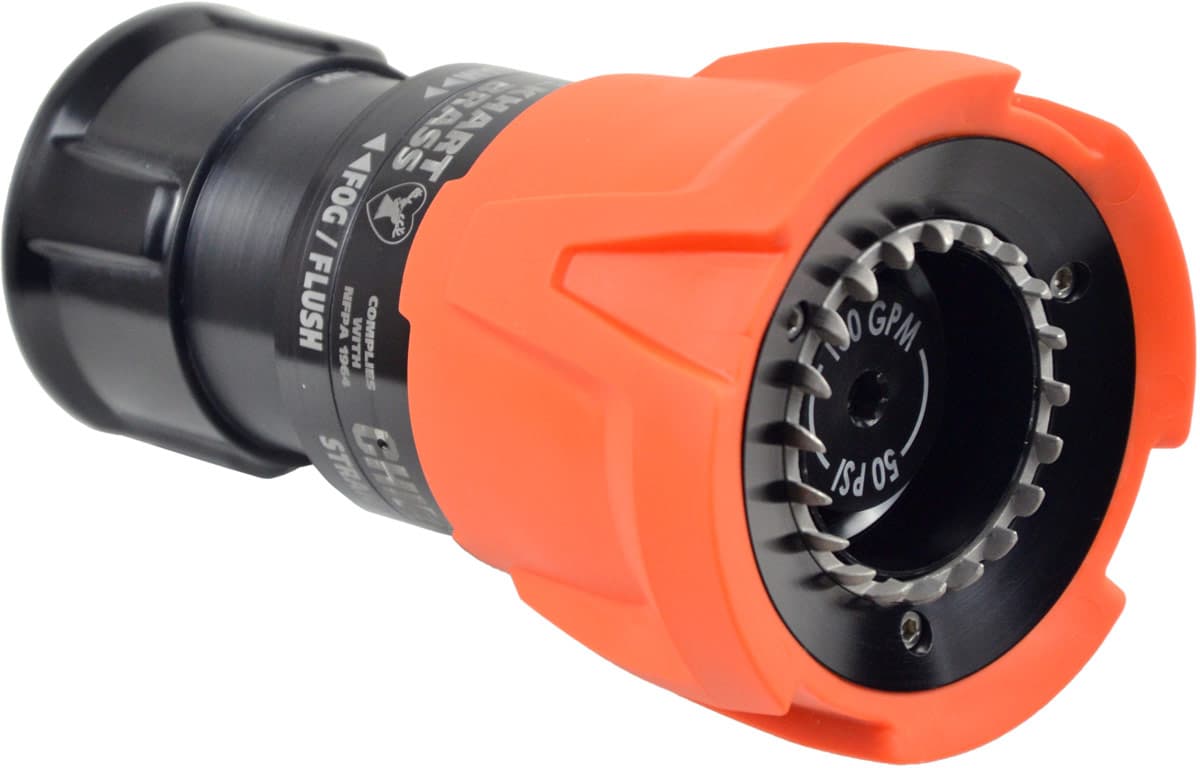

The Chief XD® Mid-Range Handline Nozzle Tip is a rugged fixed-flow fog nozzle tip engineered for dependable performance in a wide variety of firefighting applications. Built to withstand years of demanding service, the Chief XD combines durability, consistent flow performance, and excellent stream quality into a nozzle tip trusted by firefighters across municipal, industrial, and specialty fire protection operations.
Designed for use with compatible shutoff assemblies, the Mid-Range Chief XD Tip is available in multiple flow and pressure configurations, allowing departments to select the flow characteristics best suited to their operational requirements. With a choice of spinning metal teeth or fixed molded urethane teeth and a wide range of color options, the Chief XD provides both customization and performance without compromising reliability.
Features
• Fixed-flow fog nozzle tip designed for dependable firefighting performance
• Compatible with shutoff assemblies featuring a 1.5" rigid inlet connection
• Available in multiple flow and pressure configurations
• Excellent stream quality and pattern control
• Available with spinning metal teeth or fixed molded urethane teeth
• Durable XD® construction built for long service life
• No stickers to peel, fade, or scratch
• Designed for demanding municipal and industrial firefighting applications
• Available in multiple color options for department customization
• Built to provide reliable performance throughout its service life
Available Flow Rates
50 PSI (3.5 BAR)
• 150 GPM (570 LPM)
• 160 GPM (600 LPM)
• 175 GPM (660 LPM)
75 PSI (5 BAR)
• 125 GPM (475 LPM)
• 150 GPM (570 LPM)
• 175 GPM (660 LPM)
• 185 GPM (700 LPM)
• 200 GPM (750 LPM)
100 PSI (7 BAR)
• 95 GPM (360 LPM)
• 125 GPM (475 LPM)
• 150 GPM (570 LPM)
• 175 GPM (660 LPM)

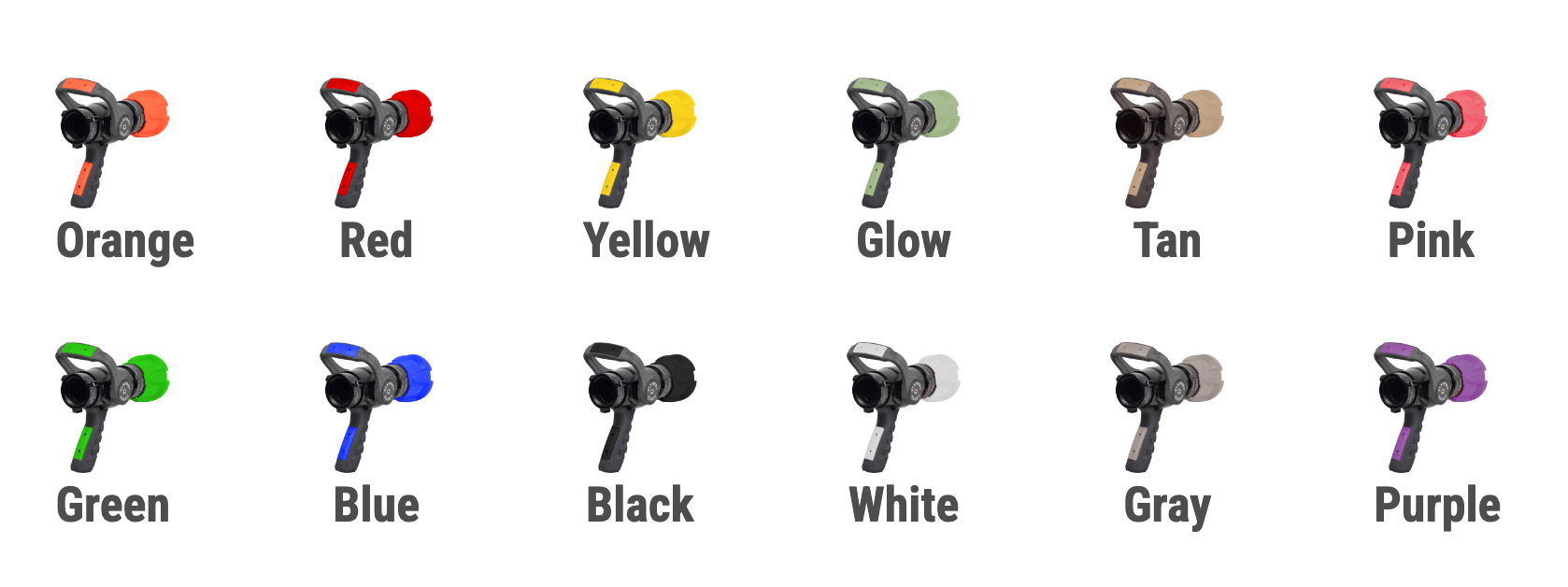

Available Colors
• Orange
• Red
• Yellow
• Glow
• Tan
• Pink
• Green
• Blue
• Black
• White
• Gray
• Purple
Specifications
• Manufacturer: Elkhart Brass
• Product Line: Chief XD®
• Product Type: Fixed Flow Fog Nozzle Tip
• Configuration: Mid-Range
• Inlet Connection: 1.5" Rigid Inlet
• Operating Pressures: 50 PSI (3.5 BAR), 75 PSI (5 BAR), and 100 PSI (7 BAR)
• Teeth Options: Spinning Metal Teeth or Fixed Molded Urethane Teeth
• Color Options: 12 Available Colors
Applications
• Structural Firefighting
• Attack Line Operations
• Municipal Fire Departments
• Industrial Fire Protection
• Standpipe Operations
• Emergency Response and Fire Suppression Activities
