The Cobra EXM2 Monitor is a versatile, high-flow electric remote-controlled monitor designed for fire apparatus, industrial pumpers, and aerial platforms. Built on the advanced EXM2 operating platform, the Cobra EXM2 combines powerful flow performance, precise remote operation, and exceptional durability, making it an ideal solution for a wide range of firefighting and industrial applications.
Featuring integrated Wi-Fi connectivity, the Cobra EXM2 allows for simple programming, setup, and system configuration. Both wired and wireless control options provide enhanced operator flexibility and improved monitor responsiveness. Heavy-duty swivel joints and thrust rods deliver long-term reliability in demanding environments, while lightweight aluminum construction and a Teflon-impregnated hard-coated finish offer outstanding corrosion resistance. The Cobra EXM2 is available with standard-duty (SD) motors or heavy-duty (HD) high-torque motors for continuous-use applications, with both motor options sealed to NEMA 4 standards for dependable operation in harsh conditions.
Features
• Electric remote-controlled monitor for fire apparatus, industrial, and aerial applications
• Available flow ratings up to 1,250 GPM or 1,500 GPM depending on model
• Maximum operating pressure of 500 PSI (34.5 BAR)
• Advanced EXM2 operating platform with built-in Wi-Fi connectivity
• Supports both wired and wireless control systems

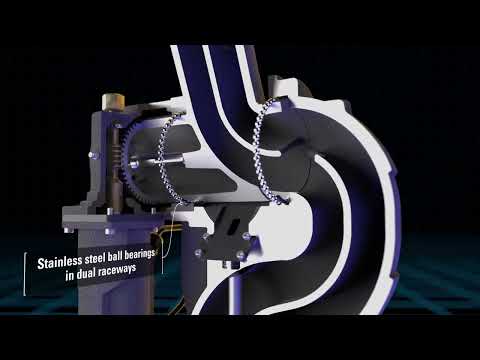

• Heavy-duty swivel joints and thrust rods for exceptional durability
• Lightweight aluminum construction reduces apparatus weight
• Teflon-impregnated hard-coated finish for enhanced corrosion resistance
• Standard-duty (SD) motor option for typical applications
• Heavy-duty (HD) high-torque motor option for continuous-use applications
• Permanent magnet DC gear motors standard
• Optional high-power motor upgrade available
• NEMA 4 sealed motor assemblies for reliable operation in harsh environments
• CE Certified
Specifications
• Manufacturer: Elkhart Brass
• Model Series: Cobra EXM2
• Available Models: 7200SDX2, 7200HDX2, 7250SDX2, 7250HDX2
• Maximum Pressure Rating: 500 PSI (34.5 BAR)
7200SDX2 / 7200HDX2
• Flow Rating: 1,250 GPM (4,750 LPM)
• Outlet Connection: 2.5" Male Outlet
7250SDX2 / 7250HDX2
• Flow Rating: 1,500 GPM (5,700 LPM)
• Outlet Connection: 3.5" Male Outlet
Travel Range
• Vertical Travel: -45° to +120° (165° Total)
• Horizontal Travel: 175° Left to 175° Right (350° Total)
Available Inlet Connections
• 3" 150# ANSI Flange
• 4" 150# ANSI Flange
• 3" Female NPT
• 3" Female BSPT
• DN80-PN16
Construction & Controls
• Construction: Lightweight Aluminum
• Finish: Teflon-Impregnated Hard-Coated Aluminum
• Control Type: Electric Remote Control (Wired and Wireless Compatible)
• Connectivity: Built-In Wi-Fi
• Motor Options: Standard-Duty (SD) or Heavy-Duty (HD) High-Torque Motors
• Motor Protection: NEMA 4 Sealed
• Certification: CE Certified
• Applications: Fire Apparatus, Industrial Pumpers, and Aerial Vehicles
