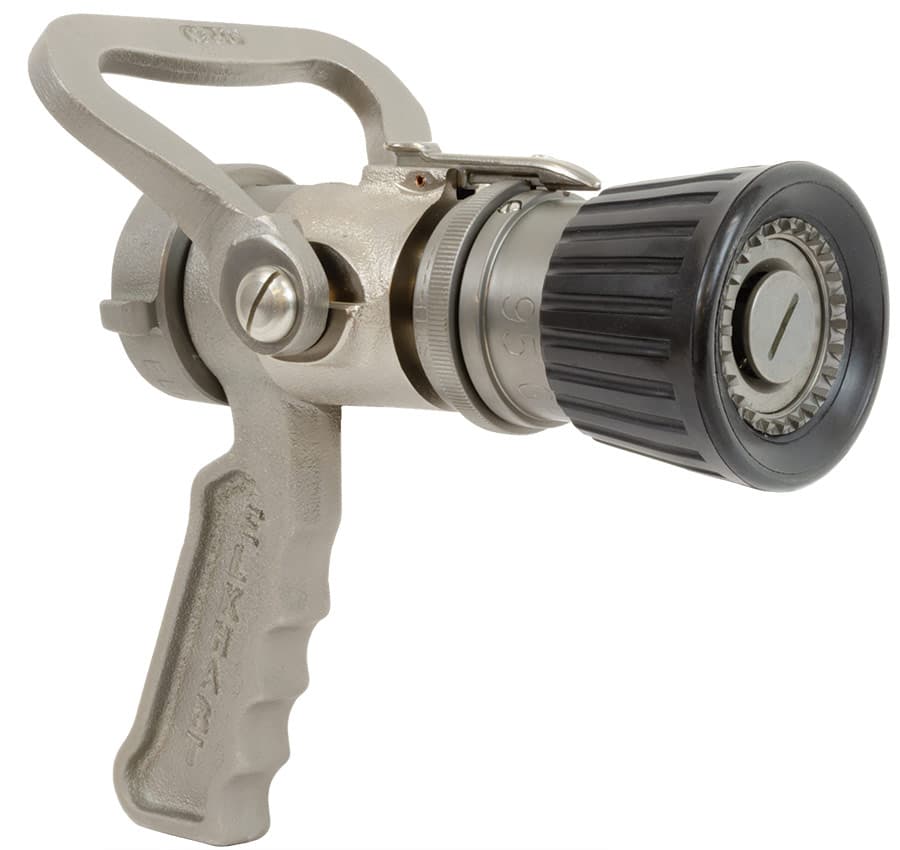

The Fixed Flow Marine Nozzle is specifically engineered for demanding marine firefighting applications where corrosion resistance, reliability, and performance are critical. Constructed from marine-grade brass and utilizing military-grade components, this nozzle is designed to withstand harsh saltwater environments while delivering dependable firefighting performance aboard ships, offshore platforms, refineries, and military vessels.
The SFL-GN-SPL is a constant-flow handline nozzle featuring an electroless nickel-plated finish for enhanced corrosion protection. It provides straight stream, narrow fog, and wide fog patterns while maintaining a consistent flow rate throughout operation. Designed for use with AFFF foam and meeting the rigorous demands of marine firefighting operations, this FM Approved nozzle offers durability and performance in some of the most challenging environments.
Features
• Designed specifically for marine firefighting applications
• Marine-grade 85 brass construction with reduced zinc content for superior corrosion resistance
• Electroless nickel-plated finish provides additional protection in harsh environments
• Constant-flow design maintains consistent flow from straight stream to wide fog
• Adjustable stream patterns include straight stream, narrow fog, and wide fog
• Heavy-duty manganese bronze horseshoe shutoff handle
• Acetal valve ball with self-adjusting UHMWPE seat
• Flush capability without shutting down the nozzle
• Suitable for use with AFFF foam concentrates
• FM Approved for trusted firefighting performance
• Designed for shipping, refinery, offshore, and military applications
Specifications
• Manufacturer: Elkhart Brass
• Model: SFL-GN-SPL
• Product Type: Fixed Flow Marine Handline Nozzle
• Flow Rating: 95 GPM (360 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Inlet Connection: 1.5" Inlet
• Stream Patterns: Straight Stream, Narrow Fog, and Wide Fog
• Handle Style: Pistol Grip
• Valve Ball Material: Acetal
• Seat Material: Self-Adjusting UHMWPE
• Construction: Marine-Grade 85 Brass
• Finish: Electroless Nickel Plated
• Certification: FM Approved
Applications
• Marine Firefighting
• Commercial Shipping Vessels
• Offshore Oil and Gas Platforms
• Refineries and Petrochemical Facilities
• U.S. Navy and Military Applications
• U.S. Coast Guard Operations
