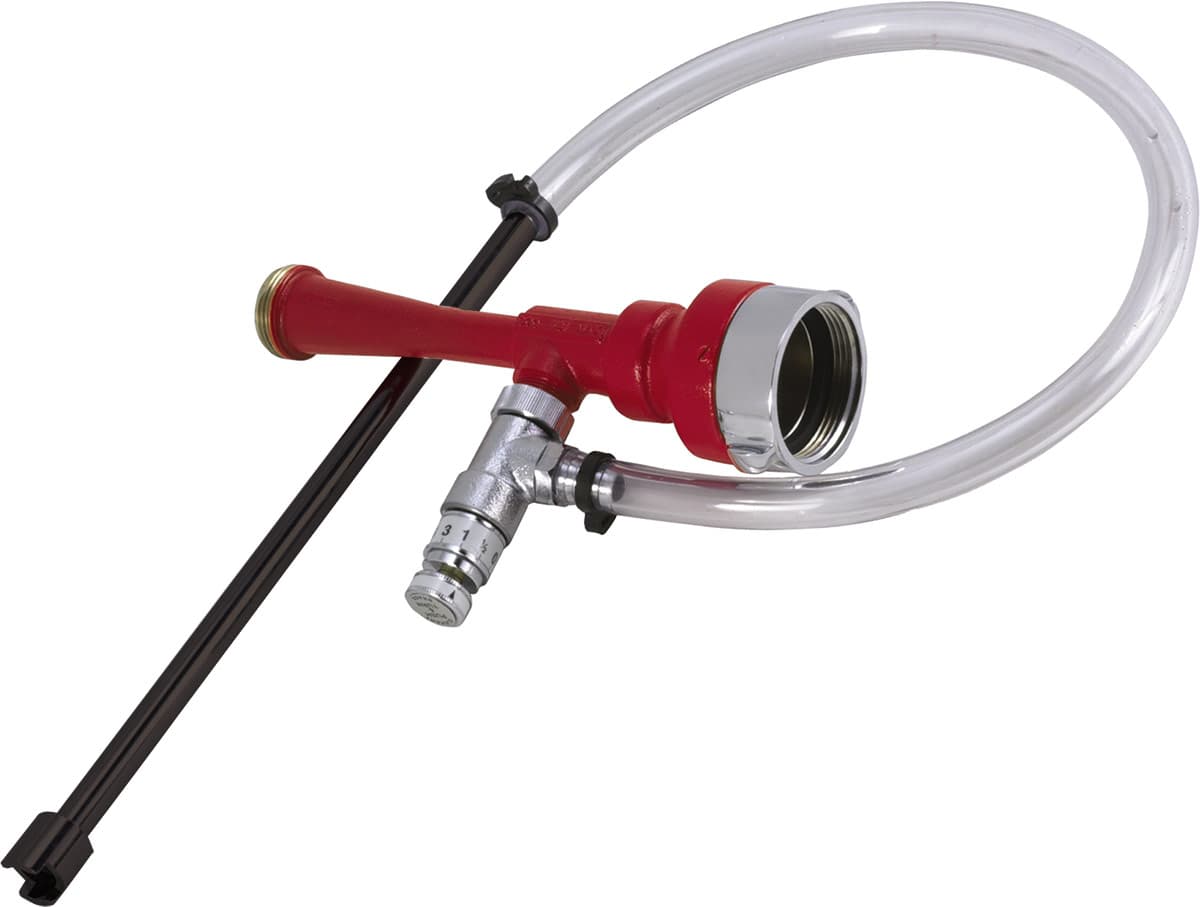

The Foam Eductors are designed to provide reliable and efficient foam proportioning for firefighting operations. Utilizing a simple Venturi design, these inline eductors accurately mix foam concentrate with water, allowing firefighters to quickly deploy Class A or Class B foam solutions without the need for complex proportioning equipment.
Available in multiple flow capacities, these eductors feature a positive-setting metering valve with selectable proportioning rates of 0.5%, 1%, 3%, and 6%, providing flexibility for a wide range of foam concentrates and fire suppression applications. A built-in bypass feature allows water-only operation at lower inlet pressures, ensuring dependable performance in varying conditions. Constructed from rugged, corrosion-resistant brass, these eductors are built to withstand demanding municipal, industrial, aviation, and petrochemical firefighting environments.
Features
• Simple and efficient Venturi design for accurate foam proportioning
• Positive-setting metering valve with selectable 0.5%, 1%, 3%, and 6% settings
• Bypass feature allows water-only operation at lower inlet pressures
• Suitable for a variety of Class A and Class B foam applications
• Available in multiple flow capacities to match operational requirements
• Rugged corrosion-resistant brass construction
• Female swivel inlet allows for easy hose connections
• Durable finish designed for demanding firefighting environments
• Ideal for municipal, industrial, aviation, and petrochemical firefighting operations
Specifications
• Manufacturer: Elkhart Brass
• Product Type: Inline Foam Eductor
• Design: Venturi Style Foam Eductor
• Proportioning Settings: 0.5%, 1%, 3%, and 6%
• Inlet Connections: 1.5" Female Swivel or 2.5" Female Swivel
• Outlet Connection: 1.5" Male Outlet
• Construction: Brass
• Finish: Red Urethane Enamel with Satin Brass Trim
• Optional Finish: Chrome-Plated Brass Trim
Available Models
241-60
• Flow Rating: 60 GPM (230 LPM)
• Inlet Pressure: 200 PSI (14 BAR)
241-95
• Flow Rating: 95 GPM (360 LPM)
• Inlet Pressure: 200 PSI (14 BAR)
241-125
• Flow Rating: 125 GPM (475 LPM)
• Inlet Pressure: 200 PSI (14 BAR)
241-150
• Flow Rating: 150 GPM (570 LPM)
• Inlet Pressure: 200 PSI (14 BAR)
Applications
• Class A and Class B Foam Operations
• Municipal Firefighting
• Industrial Fire Protection
• Aviation Firefighting
• Petrochemical Facilities
• Foam Suppression and Hazardous Material Incidents
