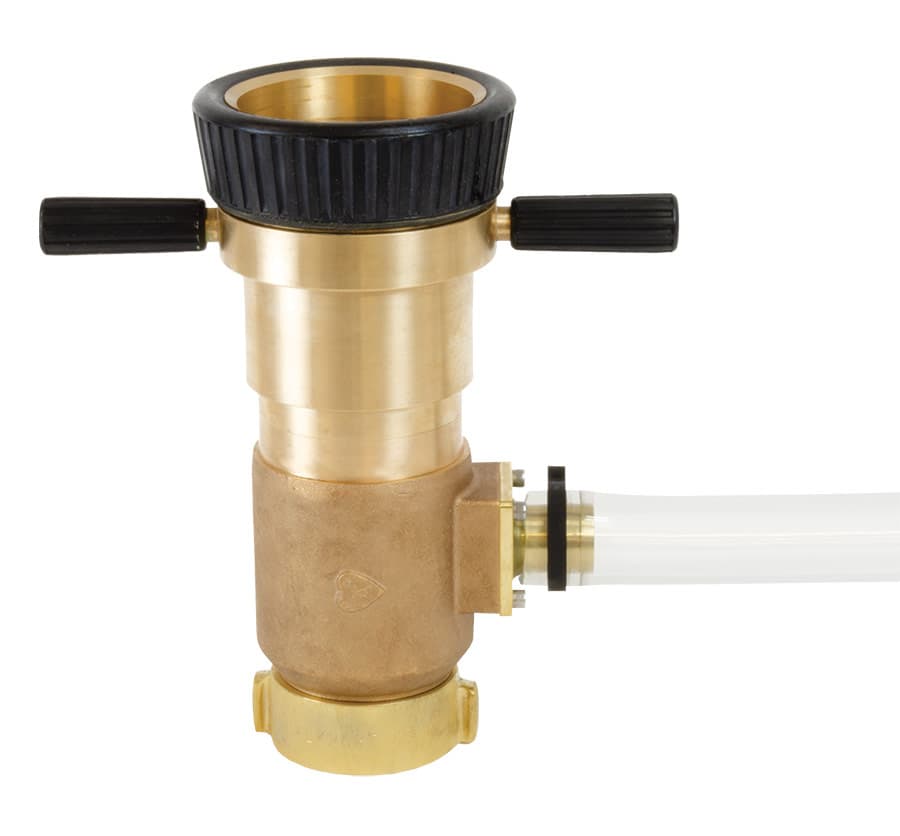

The Hydro-Foam® Self-Educting Nozzles provide reliable foam application without the need for separate foam proportioning equipment. Featuring a built-in metering system, these nozzles accurately proportion foam concentrate while delivering high-flow firefighting performance, making them ideal for industrial facilities, aviation operations, petrochemical sites, and municipal fire departments.
Designed for use with Class A and Class B foam concentrates, including AFFF, fluoroprotein, and fluorine-free foams, the Hydro-Foam nozzle offers exceptional versatility. Operators can easily adjust the stream pattern from a straight stream to a 90° fog pattern while flowing, allowing rapid adaptation to changing fireground conditions. Available in both 750 GPM and 1,000 GPM models with either a proportioning disc or metering valve, these self-educting nozzles provide dependable foam delivery and flexible operation in demanding environments.
Features
• Self-educting design eliminates the need for separate foam proportioning equipment
• Built-in metering device accurately proportions foam concentrate
• Suitable for Class A and Class B foam concentrates
• Compatible with AFFF, fluoroprotein, and fluorine-free foams
• Pattern easily adjusts from straight stream to 90° fog while flowing
• Available with proportioning disc or metering valve foam regulation options
• Clear vinyl pickup hose included for foam concentrate induction
• Durable cast and satin brass construction
• Designed for industrial, municipal, aviation, and petrochemical firefighting applications
• UL Pending
Specifications
• Manufacturer: Elkhart Brass
• Models: HF13-750 and HF13-1000
• Product Type: Self-Educting Foam Nozzle
• Flow Rating: 750 GPM (2,900 LPM) or 1,000 GPM (3,800 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Foam Pickup Rates: 1% and 3%
• Inlet Connection: 2.5" Female Swivel
• Pickup Hose: 9' (2.7 m) Clear Vinyl Hose Included
• Finish: Cast and Satin Brass
• Certification Status: UL Pending
Available Variants
• 750 GPM – Proportioning Disc (Part #00088651)
• 750 GPM – Metering Valve (Part #00088601)
• 1,000 GPM – Proportioning Disc (Part #00088751)
• 1,000 GPM – Metering Valve (Part #00088701)
• Applications: Industrial Fire Protection, Aviation Firefighting, Petrochemical Facilities, Municipal Fire Departments, and Foam Suppression Operations
