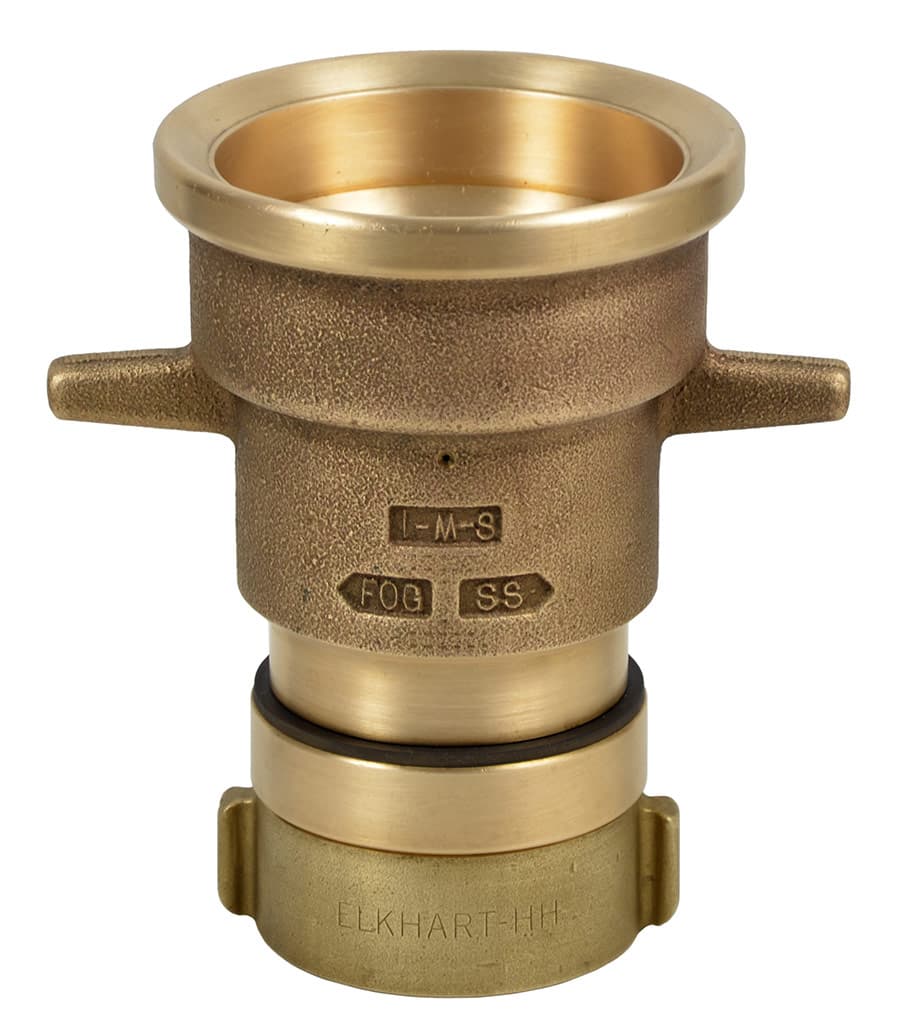

The Master Stream Select-O-Stream® IMS-1000 Nozzle is a high-capacity constant-flow master stream nozzle engineered to deliver exceptional stream quality and reliable firefighting performance. Featuring a fully machined waterway, the IMS-1000 provides smooth water flow and superior stream characteristics, making it an excellent choice for municipal, industrial, marine, and large-scale fire suppression operations.
Constructed from durable brass for use in both corrosive and non-corrosive environments, the IMS-1000 allows operators to easily adjust the pattern from a straight stream to a 90° fog while flowing. A no-twist shutoff provides simple flow control, while the integrated grease zerk fitting allows for easy maintenance of the tip threads. FM Approval further confirms the nozzle's performance and reliability in demanding firefighting applications.
Features
• Constant-flow master stream nozzle with fully machined waterway
• Delivers exceptional stream quality and performance
• Durable brass construction for corrosive and non-corrosive environments
• Easily adjusts from straight stream to 90° fog pattern while flowing
• No-twist shutoff for simple and reliable flow control
• Grease zerk fitting allows easy lubrication of tip threads
• Satin and cast brass finish for durability and corrosion resistance
• FM Approved for trusted firefighting performance
• Ideal for municipal, industrial, marine, and master stream applications
Specifications
• Manufacturer: Elkhart Brass
• Model: Select-O-Stream® IMS-1000
• Product Type: Constant-Flow Master Stream Nozzle
• Flow Rating: 1,000 GPM (3,800 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Inlet Connection: 2.5" Inlet
• Construction: Brass
• Finish: Satin and Cast Brass
• Pattern Adjustment: Straight Stream to 90° Fog
• Shutoff Type: No-Twist Shutoff
• Maintenance Feature: Grease Zerk Fitting
• Certification: FM Approved
• Applications: Master Stream Operations, Industrial Fire Protection, Marine Firefighting, and Large-Volume Fire Suppression Operations
