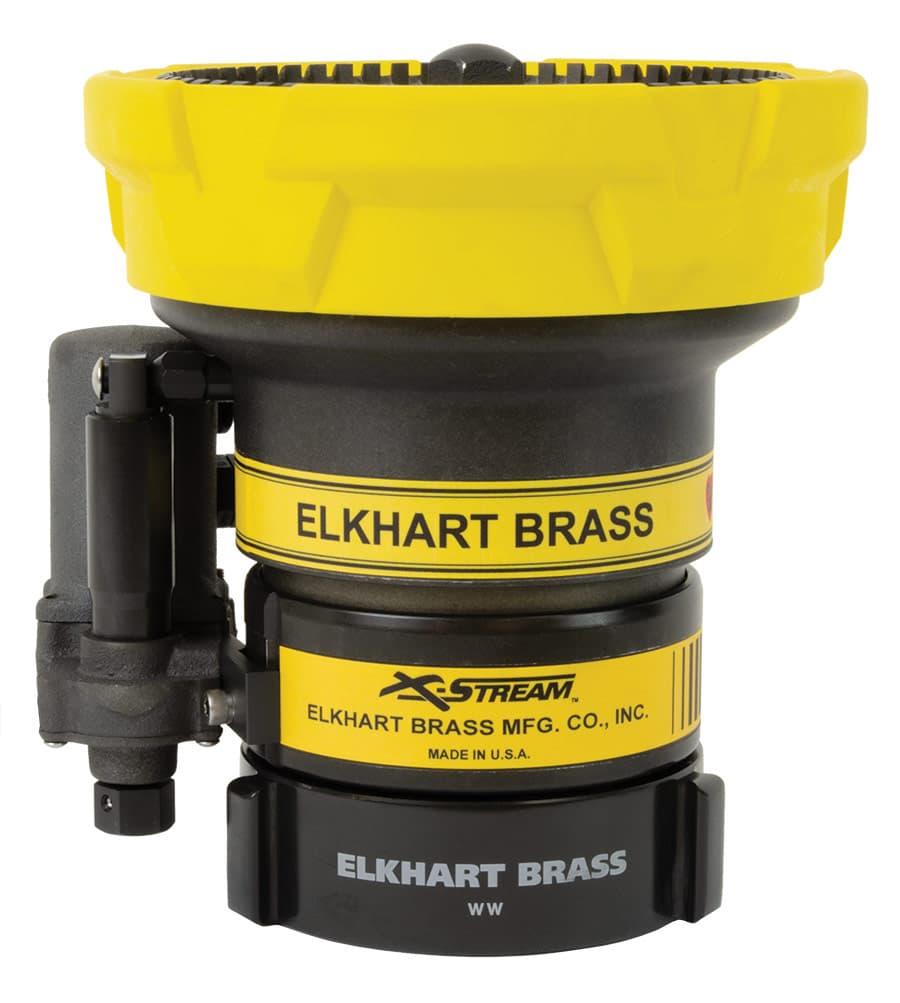

The Master Stream X-Stream® SM-1500E Nozzle is an automatic master stream nozzle engineered to deliver maximum reach and effective stream performance across a wide range of operating conditions. Designed to automatically adjust to changing flow rates and inlet pressures, the X-Stream nozzle maintains a high-quality stream without requiring manual recalibration, making it ideal for demanding firefighting and industrial applications.
The SM-1500E features a robust 12VDC electric motor that allows remote stream pattern adjustment from straight stream to narrow fog or wide fog patterns. Sealed electrical components and a manual override provide reliable operation in harsh environments, while the lightweight aluminum construction offers durability without adding unnecessary weight. With a flow range of 350 to 1,500 GPM and operation calibrated at 75 PSI, the SM-1500E delivers exceptional flexibility for monitor-equipped apparatus and industrial fire protection systems.
Features
• Automatic master stream nozzle that self-adjusts to changing flow and pressure conditions
• Maintains effective stream performance and maximum reach across varying flows
• Remote stream pattern adjustment through a robust electric motor system
• Adjustable from straight stream to 30° narrow fog and 90° wide fog
• Precision-cut metal teeth provide exceptional fog pattern performance
• Durable lightweight aluminum construction
• Calibrated to operate at lower inlet pressures of 75 PSI (5 BAR)
• Sealed electrical components designed for demanding environments
• Manual override allows operation if electrical power is unavailable
• Suitable for fire apparatus, industrial systems, and remote-controlled monitors
• Deutsch or SAE wiring connections available
Specifications
• Manufacturer: Elkhart Brass
• Model: X-Stream® SM-1500E
• Product Type: Automatic Electric Master Stream Nozzle
• Flow Range: 350–1,500 GPM (1,330–5,700 LPM)
• Operating Pressure: 75 PSI (5 BAR)
• Inlet Connection: 3.5" Inlet
• Stream Patterns: Straight Stream, 30° Narrow Fog, 90° Wide Fog
• Pattern Control: Remote Electric Motor Control
• Power Requirement: 12VDC
• Construction: Lightweight Aluminum
• Wiring Connections: Deutsch or SAE Available
• Manual Override: Yes
• Applications: Fire Apparatus Monitors, Industrial Fire Protection, Hazardous Area Operations, and Remote-Controlled Master Stream Systems
