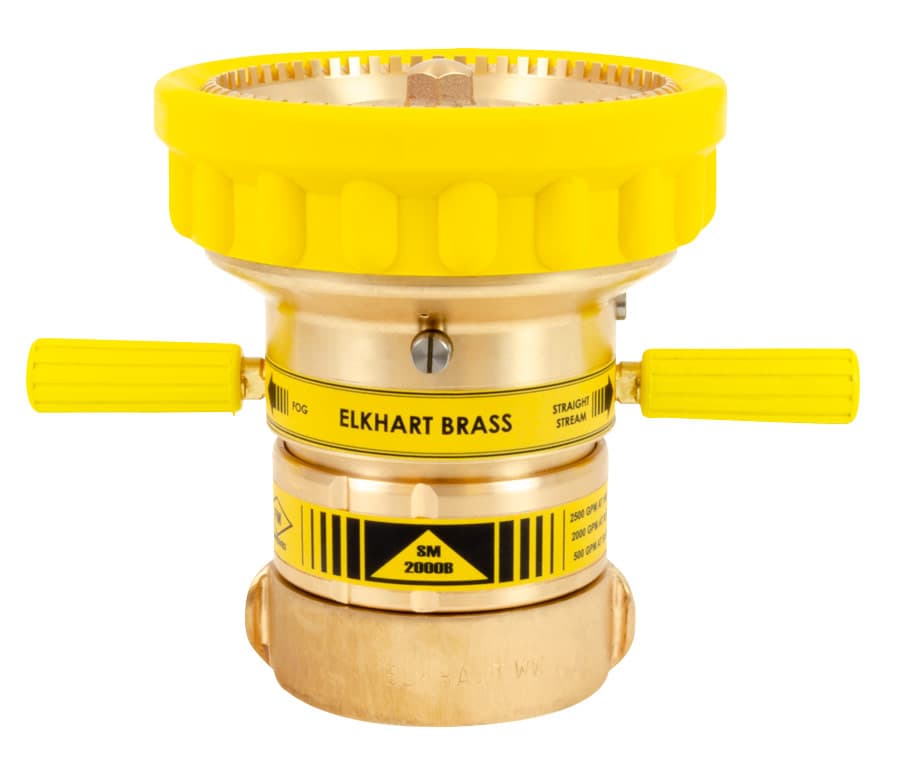

The Master Stream X-Stream® SM-2000B Nozzle is a high-capacity automatic master stream nozzle engineered to provide exceptional stream performance across a wide range of operating conditions. Designed to automatically adjust to changing flow rates and inlet pressures, the X-Stream nozzle maintains an effective stream with maximum reach, ensuring reliable fire suppression performance when conditions change.
The SM-2000B features large ergonomic handles that allow operators to quickly and easily adjust stream patterns manually. With a flow range of 500 to 2,000 GPM at 80 PSI, this nozzle delivers outstanding versatility for municipal, industrial, marine, and large-scale firefighting applications. Its automatic pressure compensation and precision-engineered design help maintain superior stream quality, making it an excellent choice for monitor-equipped apparatus and master stream systems.
Features
• Automatic master stream nozzle that self-adjusts to changing flow and pressure conditions
• Maintains effective stream quality and maximum reach across varying operating conditions
• Large ergonomic handles for easy manual stream pattern adjustment
• Adjustable from straight stream to narrow fog and wide fog patterns
• Precision-cut metal teeth provide exceptional fog pattern performance
• Calibrated to operate at lower inlet pressures of 80 PSI (5.5 BAR)
• Designed for monitor-equipped apparatus and master stream applications
• Delivers reliable performance in demanding firefighting environments
• Suitable for municipal, industrial, marine, and specialized firefighting operations
• FM Approved for trusted firefighting performance
Specifications
• Manufacturer: Elkhart Brass
• Model: X-Stream® SM-2000B
• Product Type: Automatic Master Stream Nozzle
• Flow Range: 500–2,000 GPM (1,900–7,550 LPM)
• Operating Pressure: 80 PSI (5.5 BAR)
• Inlet Connection: 3.5" Inlet
• Stream Patterns: Straight Stream, Narrow Fog, and Wide Fog
• Pattern Control: Manual Adjustment with Large Handles
• Certification: FM Approved
• Applications: Fire Apparatus Monitors, Industrial Fire Protection Systems, Marine Firefighting, and Large-Volume Master Stream Operations
