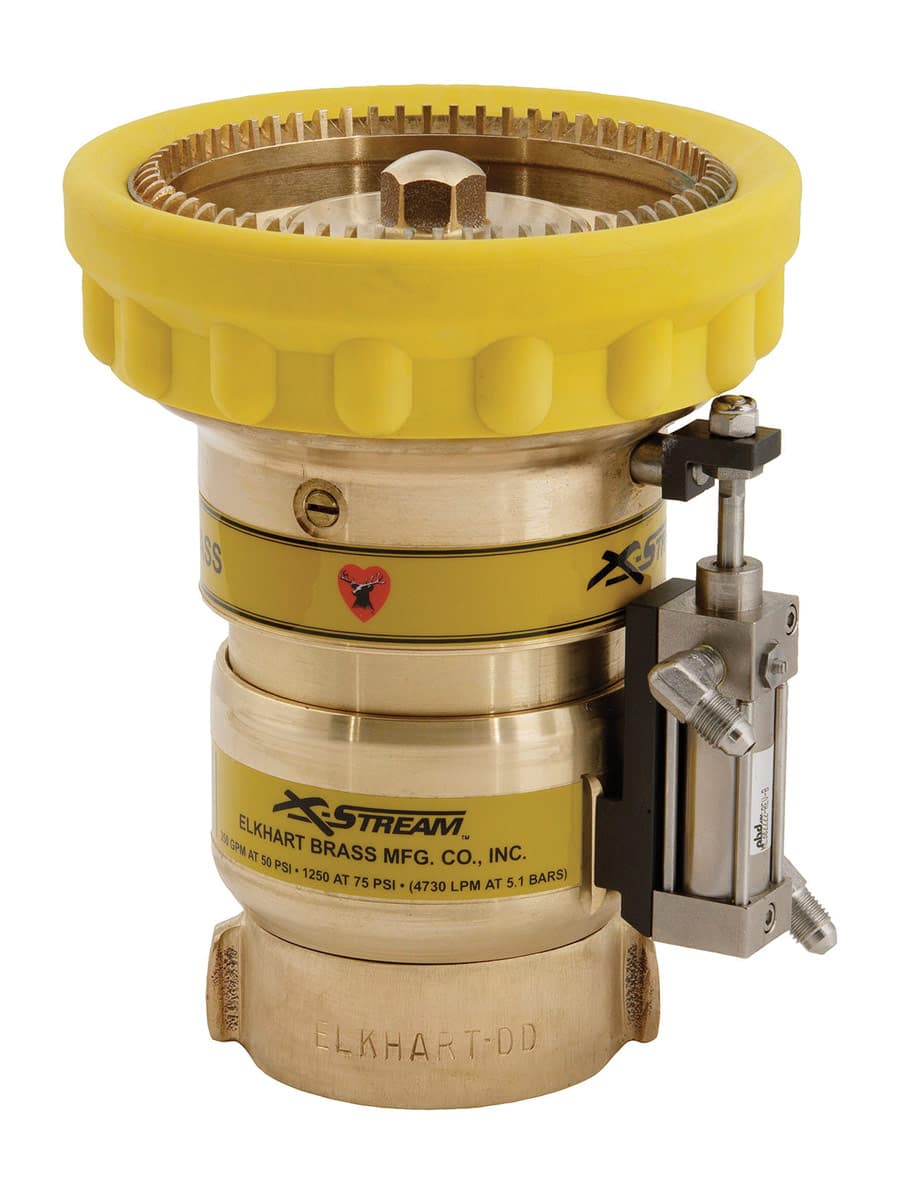

The Master Stream X-Stream® SM-2000HB Nozzle is a high-capacity automatic master stream nozzle engineered to deliver exceptional stream performance across a wide range of flow conditions. Designed to automatically adjust to changes in pressure and flow, the X-Stream nozzle maintains an effective stream with maximum reach, helping firefighters achieve optimal water application during demanding fire suppression operations.
The SM-2000HB features a robust hydraulic actuator that provides remote stream pattern control, making it ideal for use on monitor-equipped apparatus, industrial fire protection systems, and other remote-operated master stream applications. With a flow range of 500 to 2,000 GPM at 80 PSI, this nozzle delivers outstanding flexibility while maintaining excellent stream quality. Its durable construction and automatic pressure compensation ensure dependable performance in municipal, industrial, marine, and specialized firefighting environments.
Features
• Automatic master stream nozzle that self-adjusts to changing flow and pressure conditions
• Maintains effective stream quality and maximum reach across varying operating conditions
• Remote stream pattern adjustment through a robust hydraulic actuator
• Adjustable from straight stream to narrow fog and wide fog patterns
• Precision-cut metal teeth provide exceptional fog pattern performance
• Calibrated to operate at lower inlet pressures of 80 PSI (5.5 BAR)
• Designed for monitor-equipped apparatus and industrial fire protection systems
• Reliable operation in demanding firefighting environments
• Suitable for municipal, industrial, marine, and specialized firefighting applications
• Built for long service life and dependable performance
Specifications
• Manufacturer: Elkhart Brass
• Model: X-Stream® SM-2000HB
• Product Type: Automatic Hydraulic Master Stream Nozzle
• Flow Range: 500–2,000 GPM (1,900–7,550 LPM)
• Operating Pressure: 80 PSI (5.5 BAR)
• Inlet Connection: 3.5" Inlet
• Stream Patterns: Straight Stream, Narrow Fog, and Wide Fog
• Pattern Control: Remote Hydraulic Actuator
• Applications: Fire Apparatus Monitors, Industrial Fire Protection Systems, Marine Firefighting, Hazardous Area Operations, and Remote-Controlled Master Stream Applications
