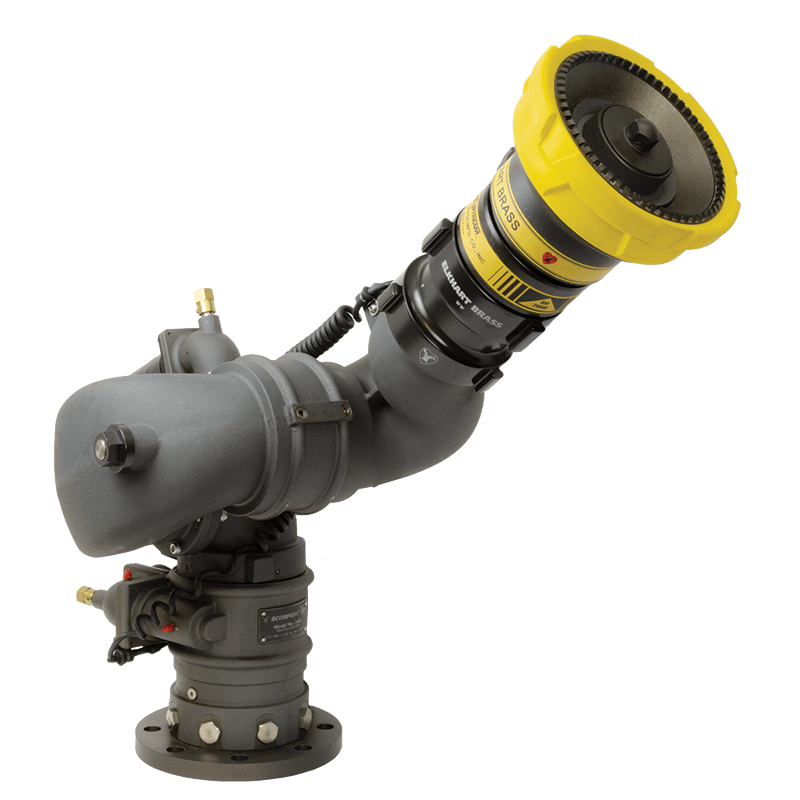

The Scorpion EXM2 Monitor is a high-flow, electric remote-controlled monitor designed for demanding firefighting, ARFF, industrial, and de-icing applications. Engineered to deliver up to 2,500 GPM, the Scorpion EXM2 combines exceptional flow performance with precise remote operation, making it an ideal solution for apparatus requiring powerful and reliable master stream capabilities.
Built on the advanced EXM2 operating platform, the Scorpion EXM2 features integrated Wi-Fi connectivity for simplified setup, programming, and diagnostics. Both wired and wireless control options provide enhanced operator flexibility and responsiveness, while heavy-duty swivel joints and thrust rods deliver outstanding durability in harsh operating environments. Its lightweight aluminum construction and Teflon-impregnated hard-coated finish provide long-lasting corrosion resistance without adding unnecessary weight to the apparatus.
Features
• Electric remote-controlled monitor designed for high-flow firefighting applications
• Rated for flows up to 2,500 GPM (9,500 LPM)
• Maximum operating pressure of 500 PSI (34.5 BAR)
• Advanced EXM2 operating platform with built-in Wi-Fi connectivity
• Supports both wired and wireless control systems
• Heavy-duty swivel joints and thrust rods for exceptional durability
• Lightweight aluminum construction for reduced apparatus weight
• Teflon-impregnated hard-coated finish for enhanced corrosion resistance
• CE Certified
• Ideal for fire apparatus, ARFF vehicles, industrial pumpers, and de-icing vehicles
• Wide travel range for precise stream placement and maximum coverage
Specifications
• Manufacturer: Elkhart Brass
• Model: Scorpion EXM2 (7400X2)
• Maximum Flow: 2,500 GPM (9,500 LPM)
• Maximum Pressure Rating: 500 PSI (34.5 BAR)
• Inlet Connections: 4" 150# ANSI Flange or DN100-PN16
• Outlet Connection: 3.5" Male Outlet
• Vertical Travel: -45° to +90° (135° Total)
• Horizontal Travel: 175° Left to 175° Right (350° Total)
• Construction: Lightweight Aluminum
• Finish: Teflon-Impregnated Hard-Coated Aluminum
• Control Type: Electric Remote Control (Wired and Wireless Compatible)
• Connectivity: Built-In Wi-Fi
• Certification: CE Certified
• Applications: Fire Apparatus, ARFF Vehicles, Industrial Pumpers, and De-Icing Vehicles
