The Select-O-Matic® XD™ Nozzle Tips are designed to automatically adjust to changing water supply conditions, maintaining effective nozzle pressure and producing a consistent, high-quality fire stream throughout their operating range. Utilizing a patented spring design located outside the waterway, these automatic nozzle tips generate the necessary back pressure without restricting water flow, ensuring maximum stream reach, excellent stream quality, and reliable performance with virtually no maintenance requirements.
Designed as tip-only configurations for use with XD Shutoffs, the Select-O-Matic XD nozzle tips provide firefighters with a flexible solution that combines the advantages of automatic pressure regulation with the rugged durability of the XD™ product line. Available in multiple flow ranges, operating pressures, and color options, these nozzle tips are ideal for structural firefighting, standpipe operations, and industrial fire protection applications.
Features
• Automatic pressure regulation maintains a consistent fire stream across varying flow rates
• Patented external spring design keeps the waterway unobstructed
• Requires zero lubrication and virtually no maintenance
• Maximizes stream reach and stream quality based on available water supply
• Designed for use with XD Shutoffs
• Available in multiple flow ranges and operating pressures
• Durable XD™ construction built for demanding firefighting environments
• Reliable performance throughout the life of the nozzle
• Available in twelve color options for department customization
• Ideal for structural, industrial, and municipal firefighting operations

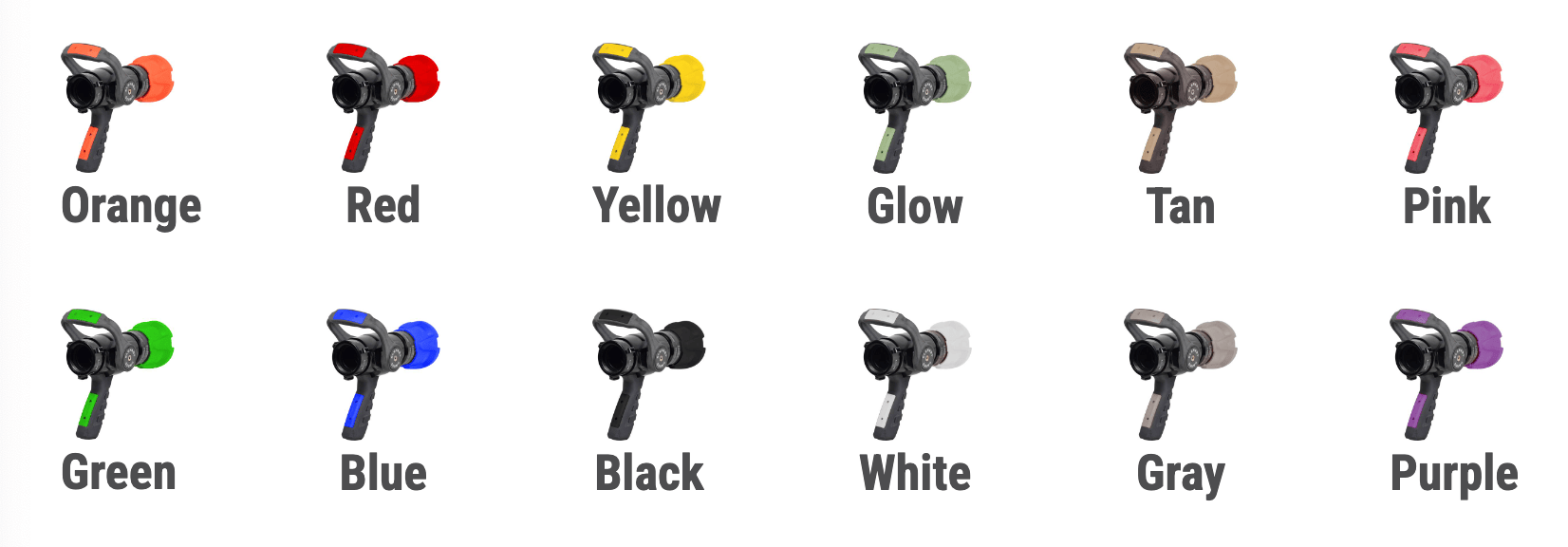

Available Colors
• Orange
• Red
• Yellow
• Glow
• Tan
• Pink
• Green
• Blue
• Black
• White
• Gray
• Purple
Available Configurations

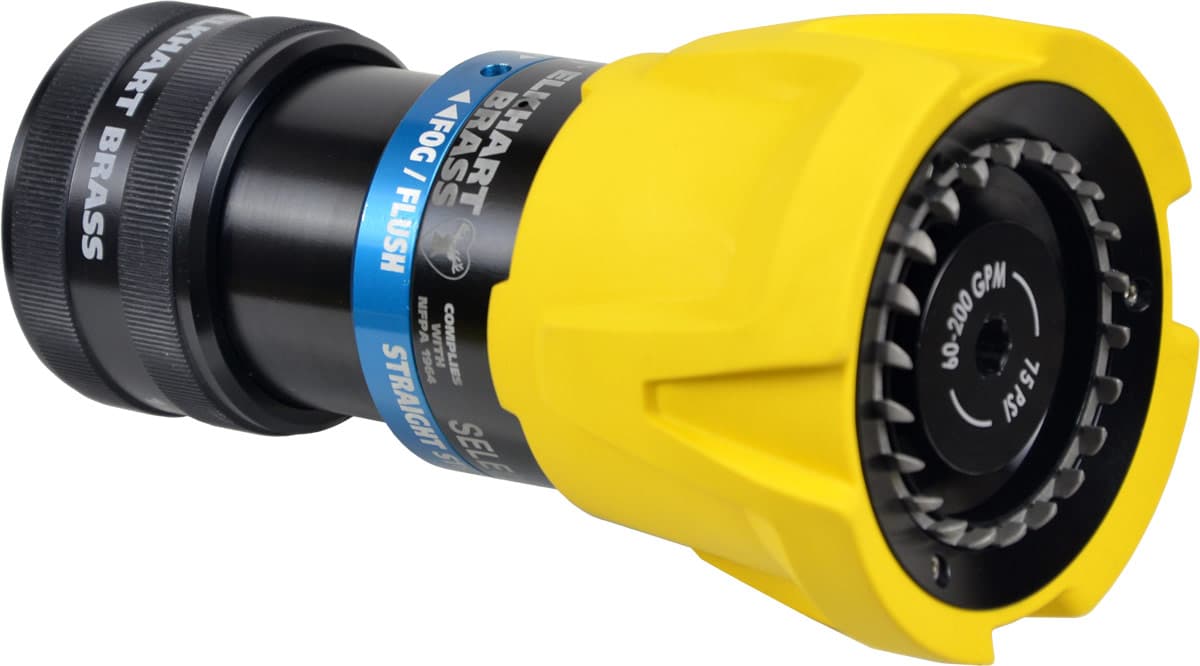

Mid-Range
• 1.5" Rigid Inlet
75 PSI (5 BAR)
• Flow Range: 60–200 GPM (230–750 LPM)
100 PSI (7 BAR)
• Flow Range: 60–200 GPM (230–750 LPM)

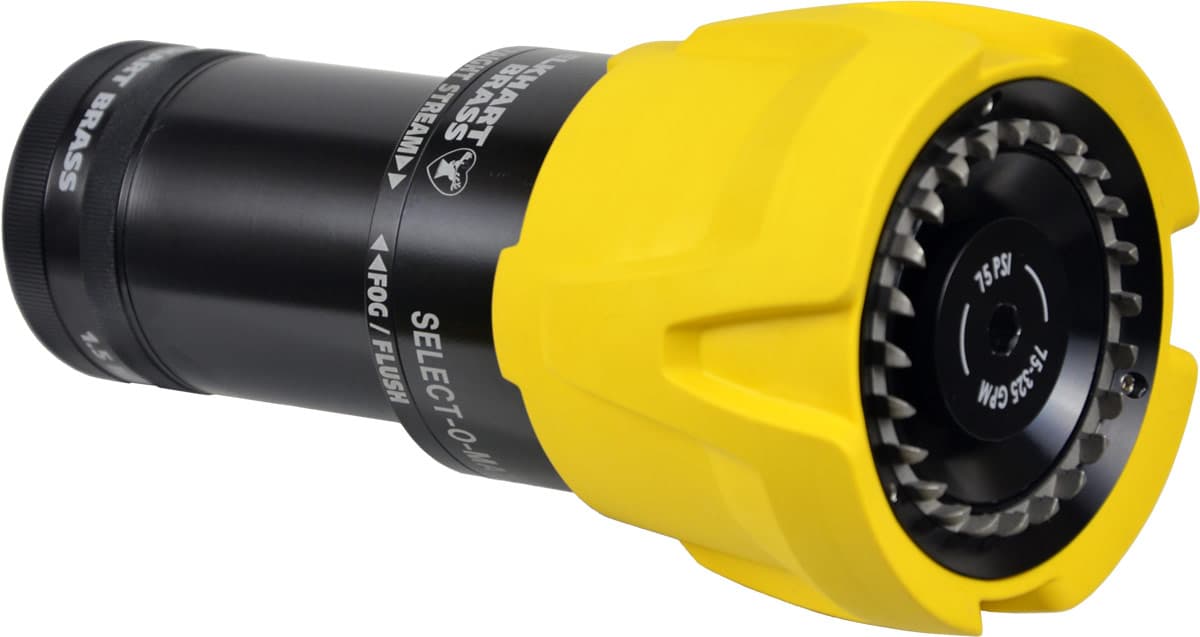

High-Range
• 1.5" Rigid Inlet
75 PSI (5 BAR)
• Flow Range: 75–325 GPM (300–1230 LPM)
100 PSI (7 BAR)
• Flow Range: 75–325 GPM (300–1230 LPM)
Specifications
• Manufacturer: Elkhart Brass
• Product Line: Select-O-Matic® XD™
• Product Type: Automatic Nozzle Tip
• Configuration: Tip-Only for Use with XD Shutoffs
• Inlet Connection: 1.5" Rigid Inlet
• Pressure Regulation: Automatic via Patented External Spring Design
• Lubrication Requirement: None
• Maintenance Requirement: Minimal
• Available Operating Pressures: 75 PSI (5 BAR) and 100 PSI (7 BAR)
• Available Colors: 12 Color Options
Applications
• Structural Firefighting
• Municipal Fire Departments
• Standpipe Operations
• High-Rise Firefighting
• Industrial Fire Protection
• Attack Line Operations
