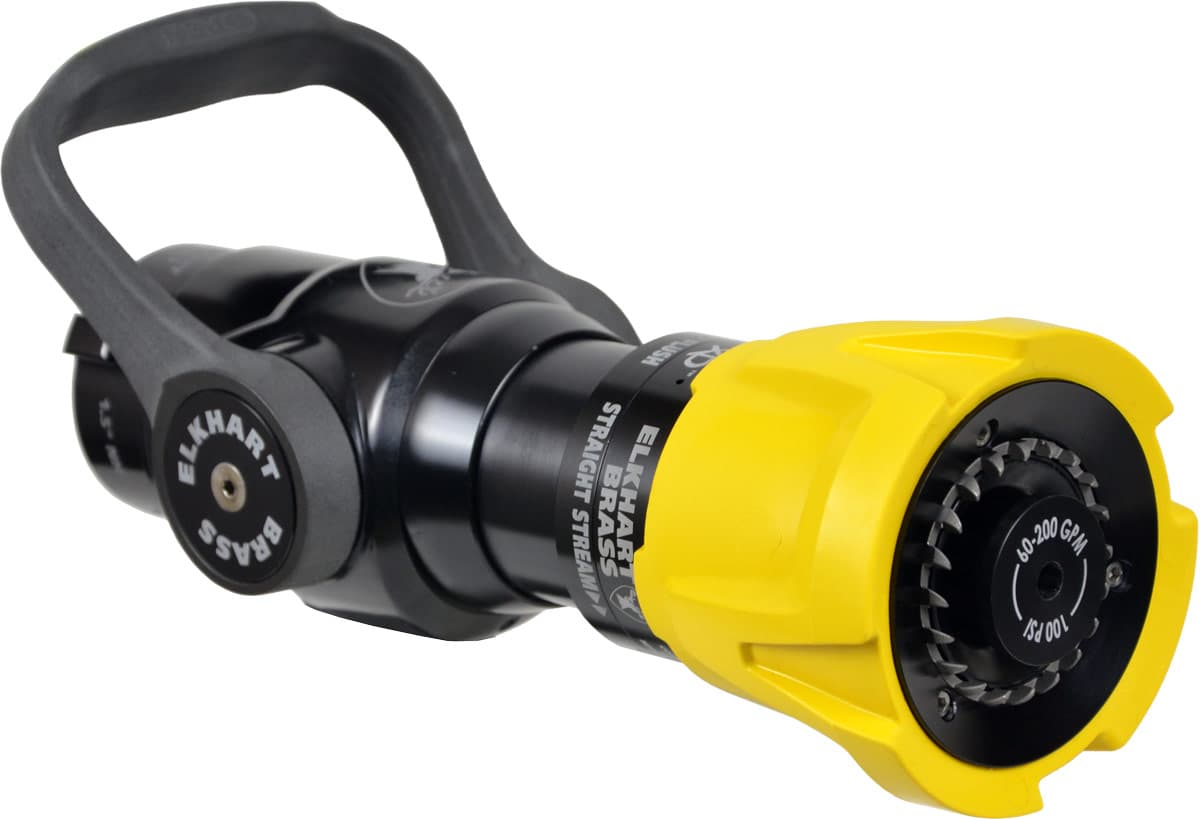

The Select-O-Matic® XD™ Nozzles are engineered to automatically adjust to fluctuating water supply conditions, maintaining effective nozzle pressure and delivering a consistent, high-quality fire stream across a wide range of flow rates. Utilizing a patented spring design located outside the waterway, the Select-O-Matic XD generates the necessary back pressure without restricting water flow, ensuring dependable performance, maximum stream reach, and exceptional stream quality with virtually no maintenance requirements.
Designed for demanding firefighting operations, the Select-O-Matic XD nozzle line is available in multiple flow ranges and operating pressures to meet the needs of municipal, industrial, and specialty firefighting applications. Available as either a complete nozzle or tip-only configuration for use with XD Shutoffs, these automatic nozzles provide firefighters with reliable performance throughout their service life.
Features
• Automatic pressure regulation maintains a consistent fire stream across varying flow rates
• Patented external spring design keeps the waterway unobstructed
• Requires zero lubrication and virtually no maintenance
• Maximizes stream reach and stream quality based on available water supply
• Available in multiple flow ranges and operating pressures
• Available as a complete nozzle or tip-only version for use with XD Shutoffs
• Durable XD™ construction built for demanding firefighting environments
• Reliable performance throughout the life of the nozzle
• Available in twelve color options for department customization
• Ideal for structural, industrial, and municipal firefighting operations

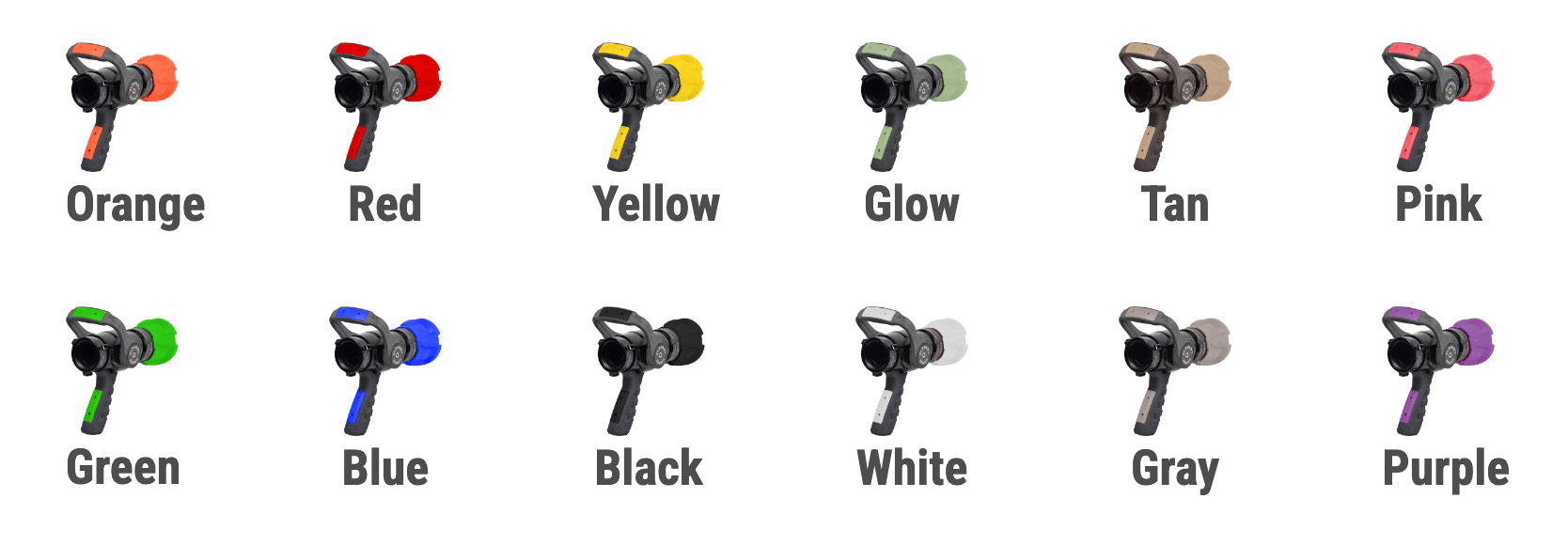

Available Colors
• Orange
• Red
• Yellow
• Glow
• Tan
• Pink
• Green
• Blue
• Black
• White
• Gray
• Purple
Available Configurations
Mid-Range
• 1.5" Free Swivel Inlet
• 1-3/8" Waterway
75 PSI (5 BAR)
• Flow Range: 60–200 GPM (230–750 LPM)
100 PSI (7 BAR)
• Flow Range: 60–200 GPM (230–750 LPM)

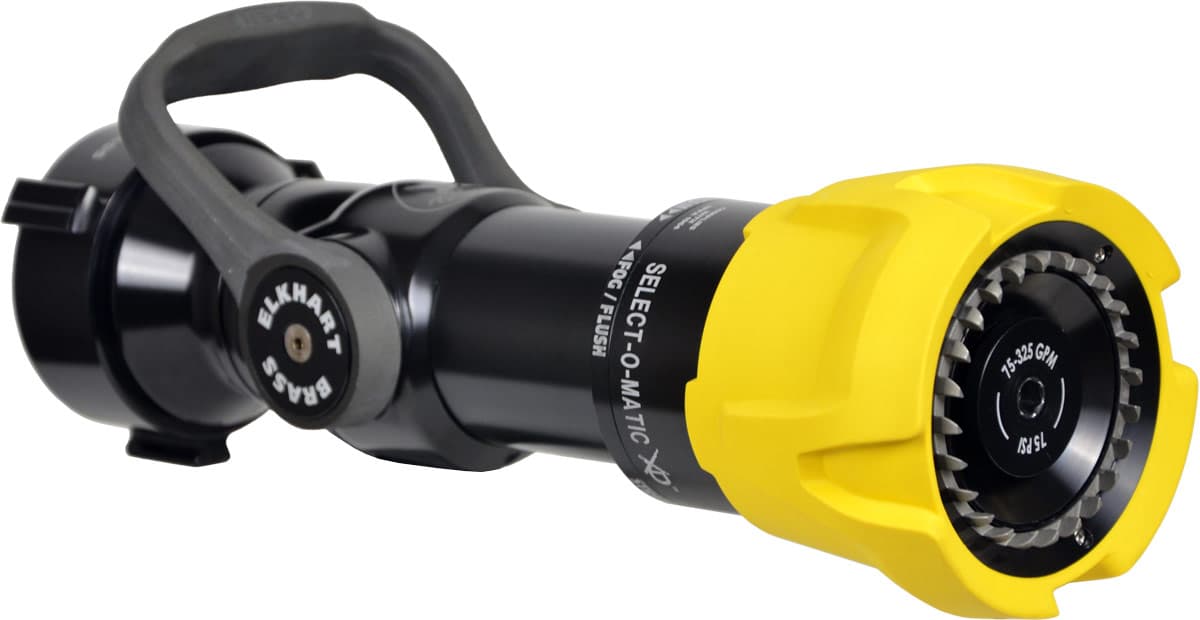

High-Range – 1.5" Inlet
• 1.5" Free Swivel Inlet
• 1-3/8" Waterway
75 PSI (5 BAR)
• Flow Range: 75–325 GPM (300–1230 LPM)
100 PSI (7 BAR)
• Flow Range: 75–325 GPM (300–1230 LPM)
High-Range – 2.5" Inlet
• 2.5" Free Swivel Inlet
• 1-3/8" Waterway
100 PSI (7 BAR)
• Flow Range: 75–325 GPM (300–1230 LPM)
Specifications
• Manufacturer: Elkhart Brass
• Product Line: Select-O-Matic® XD™
• Product Type: Automatic Handline Nozzle
• Pressure Regulation: Automatic via Patented External Spring Design
• Lubrication Requirement: None
• Maintenance Requirement: Minimal
• Available Operating Pressures: 75 PSI (5 BAR) and 100 PSI (7 BAR)
• Inlet Sizes: 1.5" Free Swivel and 2.5" Free Swivel
• Waterway Size: 1-3/8"
• Configuration Options: Complete Nozzle or Tip-Only Version
Applications
• Structural Firefighting
• Municipal Fire Departments
• Industrial Fire Protection
• High-Rise Firefighting
• Standpipe Operations
• Attack Line Operations
