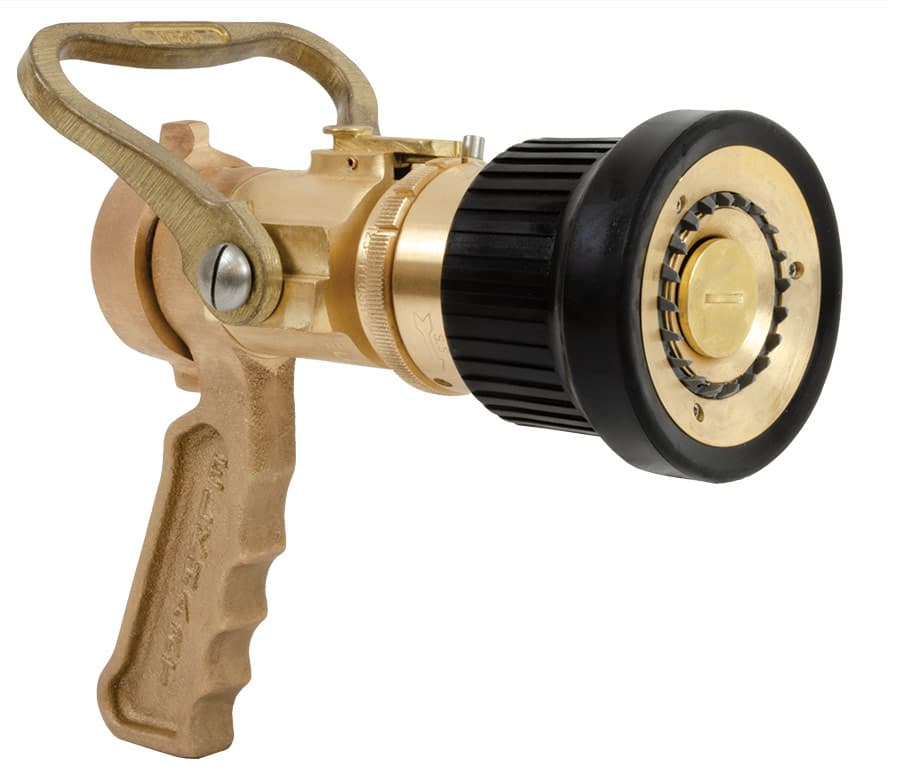

The Selectable Flow Marine Nozzles are specifically engineered for demanding marine firefighting applications where corrosion resistance, durability, and operational flexibility are essential. Constructed from marine-grade brass and utilizing military-grade components, these nozzles are designed to withstand harsh saltwater environments while delivering dependable firefighting performance aboard ships, offshore platforms, refineries, and military vessels.
The Selectable Flow Marine Nozzles provide multiple flow settings that allow operators to match water application rates to changing fireground conditions. Capable of producing straight stream, narrow fog, and wide fog patterns, these nozzles maintain excellent performance while offering the flexibility required for marine firefighting operations. Suitable for use with AFFF foam concentrates and designed to meet demanding marine service requirements, these nozzles are an excellent choice for commercial, industrial, and military applications.
Features
• Designed specifically for marine firefighting applications
• Marine-grade 85 brass construction with reduced zinc content for superior corrosion resistance
• Multiple selectable flow settings for operational flexibility
• Adjustable stream patterns include straight stream, narrow fog, and wide fog
• Heavy-duty manganese bronze horseshoe shutoff handle
• Acetal valve ball with self-adjusting UHMWPE seat
• Flush capability without shutting down the nozzle
• Suitable for use with AFFF foam concentrates
• Built with military-grade components for demanding environments
• Ideal for shipping, refinery, offshore, and military applications
Specifications
• Manufacturer: Elkhart Brass
• Product Type: Selectable Flow Marine Handline Nozzle
• Flow Settings: 40, 60, 95, and 125 GPM (150, 230, 360, and 475 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Inlet Connection: 1.5" Inlet
• Stream Patterns: Straight Stream, Narrow Fog, and Wide Fog
• Valve Ball Material: Acetal
• Seat Material: Self-Adjusting UHMWPE
• Construction: Marine-Grade 85 Brass
Available Models
SFL-B
• Standard Configuration
• 1.5" Inlet
SFL-BG
• Pistol Grip Configuration
• 1.5" Inlet
Applications
• Marine Firefighting
• Commercial Shipping Vessels
• Offshore Oil and Gas Platforms
• Refineries and Petrochemical Facilities
• Military and Naval Operations
• U.S. Coast Guard Applications
