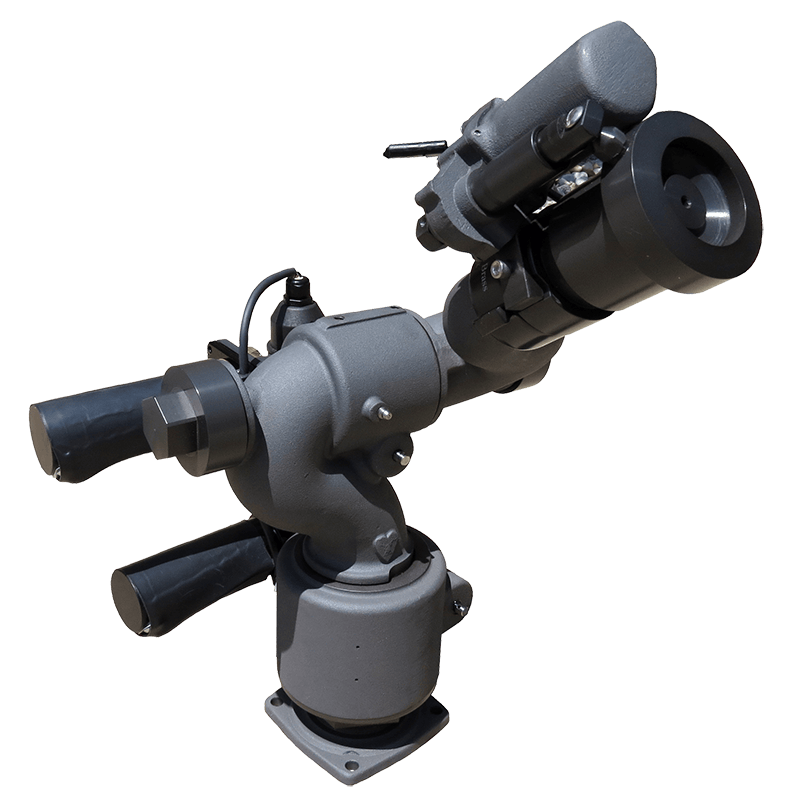

The Sidewinder EXM2 UHP Monitor delivers ultra-high-pressure firefighting performance in a compact, electric remote-controlled package. Originally designed to meet rigorous U.S. Military standards, the Sidewinder EXM2 UHP is engineered for applications where maximum extinguishing effectiveness is required while minimizing water usage. With operating pressures up to 1,500 PSI and flow rates up to 300 GPM, it provides exceptional firefighting capability for specialized apparatus and industrial operations.
Built on the advanced EXM2 operating platform, the Sidewinder EXM2 UHP features integrated Wi-Fi connectivity for simplified programming, setup, and diagnostics. Both wired and wireless control options provide precise monitor positioning and improved operator control. The monitor's rugged construction and Teflon-impregnated hard-coated finish ensure long-lasting durability and corrosion resistance, while its compact design makes it ideal for installations where space is limited.
Features
• Ultra-high-pressure electric remote-controlled monitor
• Designed to meet demanding U.S. Military standards
• Rated for flows up to 300 GPM (1,140 LPM)
• Maximum operating pressure of 1,500 PSI (105 BAR)
• Advanced EXM2 operating platform with built-in Wi-Fi connectivity
• Supports both wired and wireless control systems
• Precise remote positioning for improved firefighting effectiveness
• Compact design for specialized apparatus and industrial applications
• Teflon-impregnated hard-coated finish for enhanced durability and corrosion resistance
• Maximizes firefighting performance while reducing water consumption
• CE Certified
Specifications
• Manufacturer: Elkhart Brass
• Model: Sidewinder EXM2 UHP (7161X2 Series)
• Maximum Flow: 300 GPM (1,140 LPM)
• Maximum Pressure Rating: 1,500 PSI (105 BAR)
• Inlet Connection: 2.5" Female NPT
• Outlet Connection: 1.5" Male Outlet
• Vertical Travel: -45° to +90° (135° Total)
• Horizontal Travel: 90° Left to 90° Right (180° Total)
• Finish: Teflon-Impregnated Hard-Coated Aluminum
• Control Type: Electric Remote Control (Wired and Wireless Compatible)
• Connectivity: Built-In Wi-Fi
• Certification: CE Certified
• Applications: Ultra-High-Pressure Firefighting, Industrial Operations, Specialized Apparatus, and Military Applications
