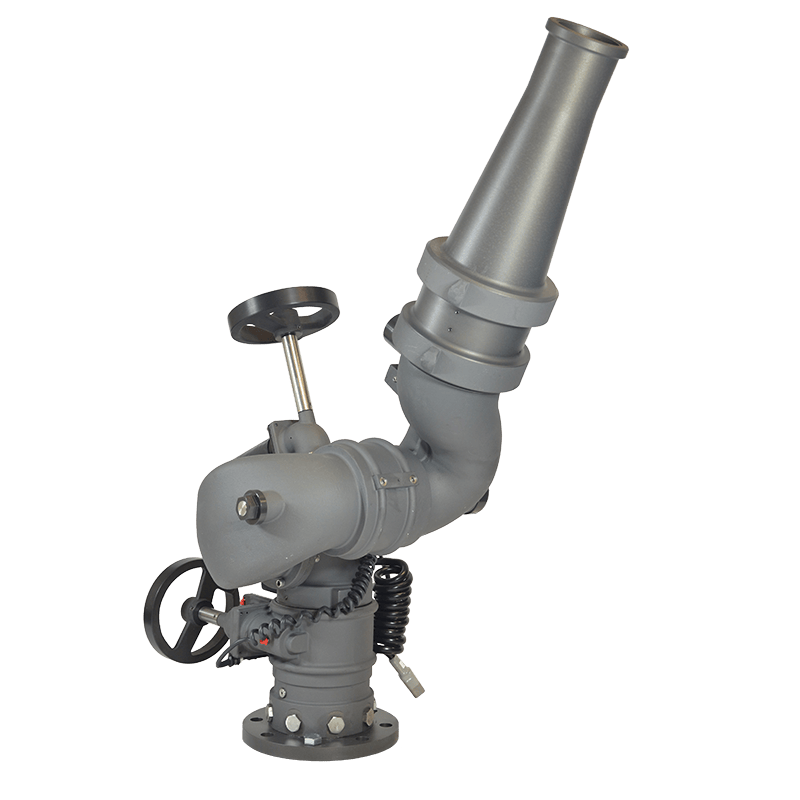

The SkyStream EXM2 Monitor is a high-capacity, electric remote-controlled monitor engineered for extreme flow firefighting applications. Designed for use on fire apparatus, ARFF vehicles, industrial pumpers, and aerial platforms, the SkyStream EXM2 delivers dependable performance with flow capacities up to 3,000 GPM while providing precise remote operation and exceptional durability.
Built on the advanced EXM2 operating platform, the SkyStream EXM2 features integrated Wi-Fi connectivity for simplified programming, configuration, and setup. Both wired and wireless control options provide enhanced operator control and responsiveness, while heavy-duty swivel joints and thrust rods ensure long-term reliability in demanding firefighting environments. Constructed from lightweight aluminum with a Teflon-impregnated hard-coated finish, this monitor is designed to withstand harsh operating conditions while minimizing apparatus weight.
Features
• Electric remote-controlled monitor designed for extreme flow applications
• Rated for flows up to 3,000 GPM (11,400 LPM)
• Maximum operating pressure of 500 PSI (34.5 BAR)
• Advanced EXM2 operating platform with built-in Wi-Fi connectivity
• Supports both wired and wireless control options
• Heavy-duty swivel joints and thrust rods for enhanced durability
• Lightweight aluminum construction reduces apparatus weight
• Teflon-impregnated hard-coated aluminum finish for corrosion resistance and long service life
• Ideal for fire apparatus, ARFF vehicles, industrial pumpers, and aerial platforms
• Wide horizontal and vertical travel ranges for maximum coverage
Specifications
• Manufacturer: Elkhart Brass
• Model: SkyStream EXM2
• Maximum Flow: 3,000 GPM (11,400 LPM)
• Maximum Pressure Rating: 500 PSI (34.5 BAR)
• Inlet Connection: 4" 150# ANSI Flange
• Outlet Connection: 5" Male Outlet
• Vertical Travel: -45° to +90° (135° Total)
• Horizontal Travel: 175° Left to 175° Right (350° Total)
• Construction: Aluminum
• Finish: Teflon-Impregnated Hard-Coated Aluminum
• Control Type: Electric Remote Control (Wired and Wireless Compatible)
• Connectivity: Built-In Wi-Fi
• Application: Fire Apparatus, ARFF, Industrial Pumpers, and Aerial Vehicles
