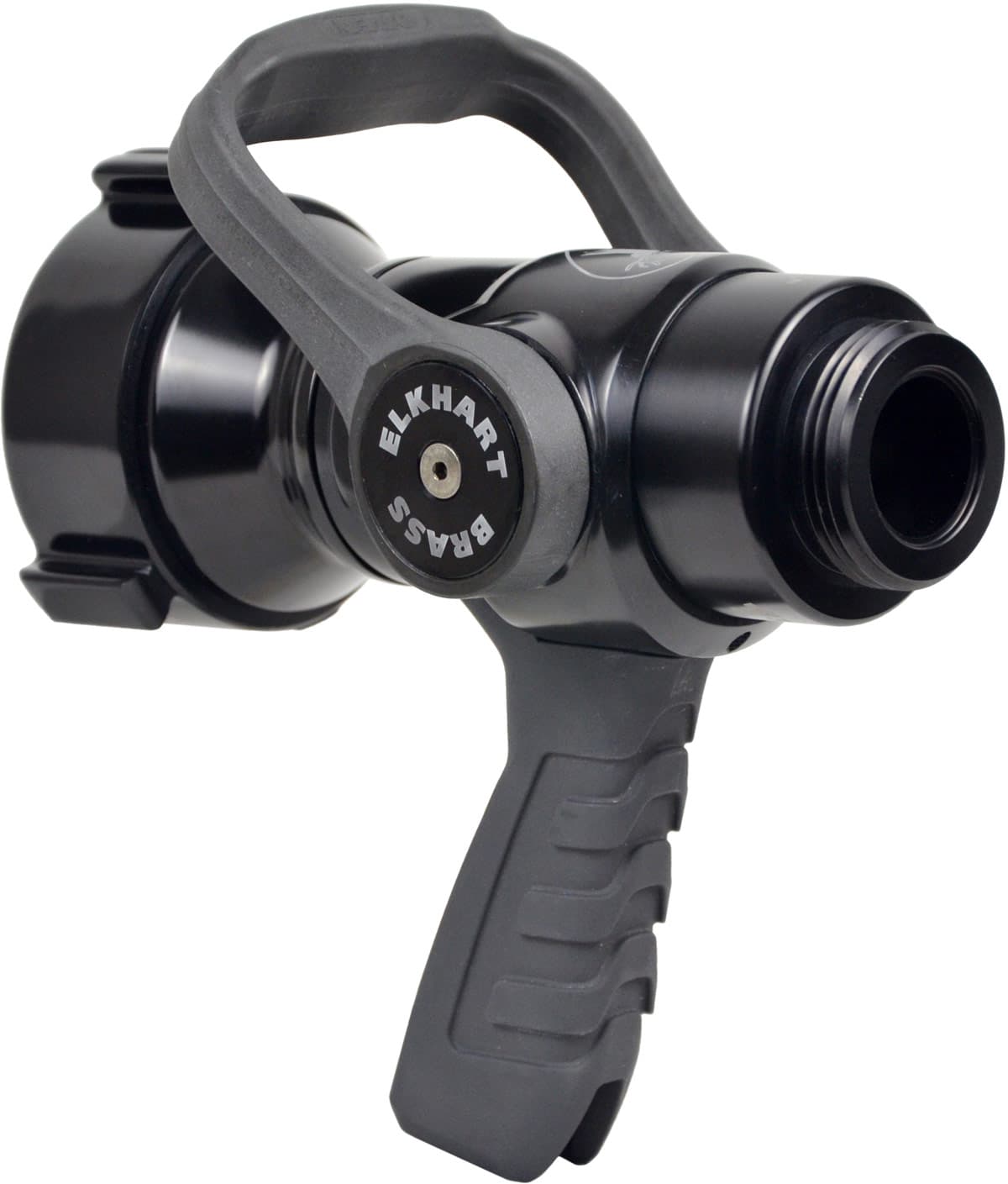

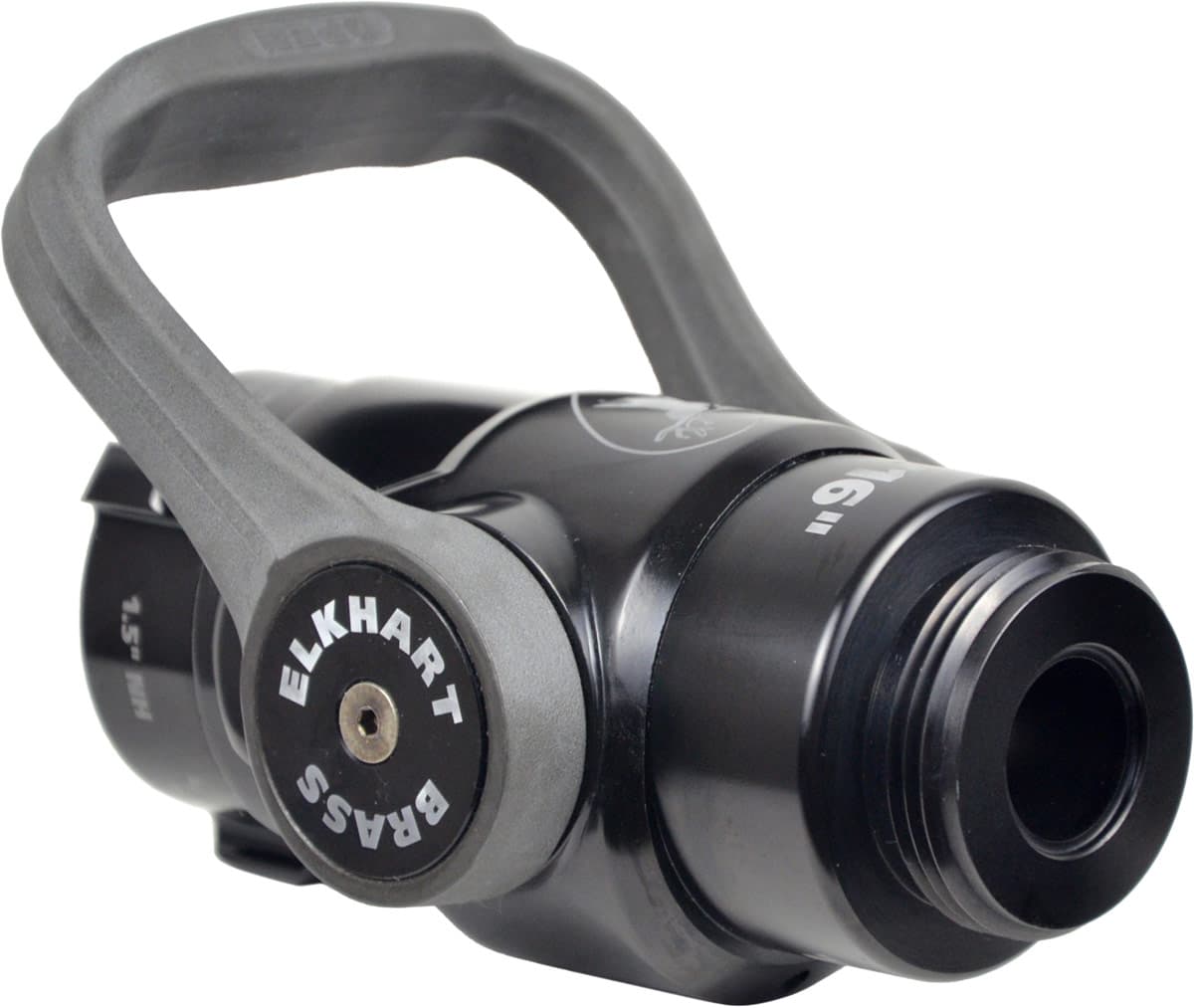

The XD Shutoffs with Integral Smooth Bore combine a rugged shutoff valve and smooth bore tip into a single high-performance firefighting nozzle assembly. Engineered for Xtreme Duty applications, these shutoffs are designed to withstand the rigors of daily firefighting operations while delivering exceptional stream quality, reach, and penetration.
Built with a forged metal bale handle, full-round metal ball valve, and laser-etched markings, the XD Shutoff provides reliable operation in demanding environments. Available with or without a pistol grip, these shutoffs can also be customized with your department logo and a choice of twelve handle insert colors. Multiple discharge size options allow firefighters to select the ideal flow characteristics for structural firefighting, standpipe operations, and high-rise incidents.
Features
• Integral smooth bore design combines shutoff and nozzle into one assembly
• Built for Xtreme Duty firefighting applications
• Forged metal bale handle for maximum durability
• Full-round metal ball valve provides dependable flow control
• Laser-etched markings for easy identification
• Available with or without pistol grip
• Customizable with department logo and twelve handle insert color options
• Smooth bore design delivers excellent stream reach and penetration
• Rugged construction built for demanding firefighting environments
• Available in multiple discharge sizes to meet operational requirements
Available Discharge Sizes
• 7/8"
• 15/16"
• 1"
• 1-1/16"
• 1-1/8"
• 1-3/16"
• 1-1/4"
Specifications
• Manufacturer: Elkhart Brass
• Product Type: XD Shutoff with Integral Smooth Bore
• Construction: Forged Metal Components
• Handle Type: Forged Metal Bale Handle
• Ball Valve Type: Full-Round Metal Ball
• Identification: Laser-Etched Markings
• Pistol Grip: Available or Optional Depending on Model
• Customization: Department Logo and Twelve Handle Insert Colors Available
1.5" XD Shutoff
• Inlet Connection: 1.5" Free Swivel Inlet
• Outlet Connection: 1.5" Outlet
• Waterway Diameter: 1-3/8"
2.5" XD Shutoff
• Inlet Connection: 2.5" Free Swivel Inlet
• Outlet Connection: 1.5" Outlet
• Waterway Diameter: 1-3/8"
Applications
• Structural Firefighting
• Standpipe Operations
• High-Rise Firefighting
• Municipal Fire Departments
• Attack Line Operations
• Industrial Fire Protection
