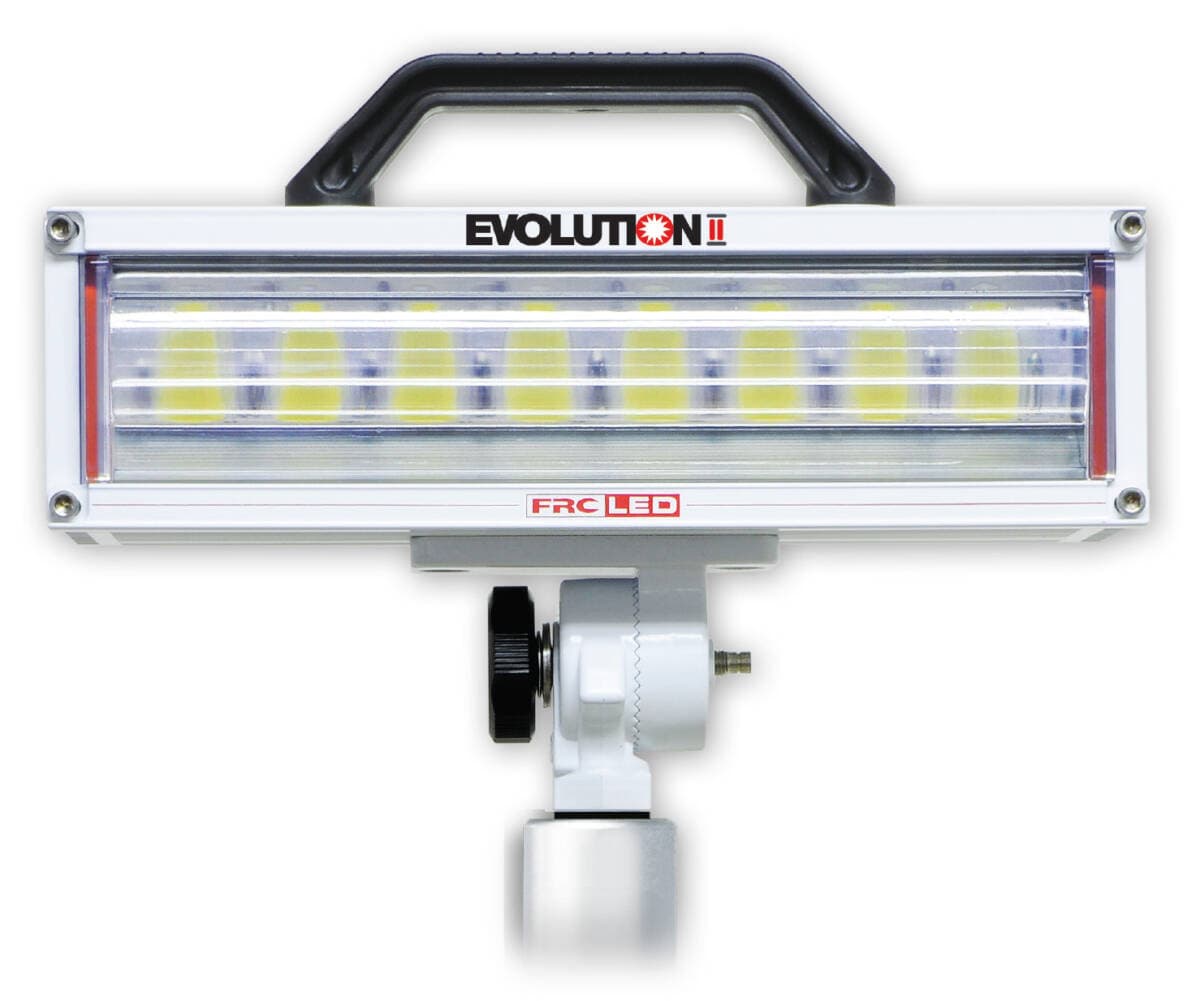

The EVOLUTION II LED Contour Brow Mount delivers powerful scene illumination in a sleek, low-profile package designed specifically for installation along the contour of a fire apparatus cab roof. Engineered to provide exceptional lighting performance while maintaining a streamlined appearance, this brow-mounted lighting system helps emergency responders quickly illuminate incident scenes, work areas, and apparatus surroundings upon arrival.
Utilizing advanced LED arrays, precision optics, and a parabolic reflector system, the Evolution II directs 100% of its available light onto the scene, producing a broad, uniform beam pattern with excellent clarity. Available in V11 and V20 configurations, the lamphead generates up to 20,000 raw lumens while maintaining energy efficiency and a service life rated for 50,000 hours. The rugged design features a reinforced mounting knuckle, vibration-resistant adjustment hardware, and a sure-grip molded handle for reliable performance in demanding emergency service environments.
Features
• Contour brow mount scene light system
• Designed for cab roof contour mounting applications
• Low-profile lamphead design
• Ultra-bright LED arrays for maximum scene illumination
• Advanced lens design focuses light where it is needed most
• Wide, uniform white light pattern
• Light color closely resembles natural sunlight
• Generates up to 20,000 raw lumens
• Produces up to 18,000 effective lumens
• Parabolic reflector and lens system maximize usable light output
• Full brightness instantly at power-up
• Instant restart capability
• Sure-grip molded handle for easy positioning
• Reinforced mounting knuckle for increased durability
• Unbalanced adjustment knob helps prevent loosening during vehicle travel
• Rated for 50,000 operating hours
• Compatible with 12V and 24V DC electrical systems
• Compact design provides more usable light from a smaller lamphead
• IP68-rated construction for protection against dust and water intrusion
• Ideal for fire apparatus, rescue vehicles, and specialty response units
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: EVOLUTION II
• Product Type: LED Contour Brow Mount Scene Light
• Mounting Style: Contour Brow Mount
• Voltage: 12/24 VDC
• Lamp Life: 50,000 Hours
• Environmental Rating: IP68
Available Models
• V11
• Voltage: 12/24 VDC
• Current Draw: 7.5A / 3.75A
• Raw Lumens: 11,000
• Effective Lumens: 9,900
• V20
• Voltage: 12/24 VDC
• Current Draw: 13.0A / 6.5A
• Raw Lumens: 20,000
• Effective Lumens: 18,000
Note: The EVOLUTION II LED Contour Brow Mount provides high-output scene lighting in a streamlined installation package, making it an excellent choice for apparatus requiring powerful forward-facing illumination while maintaining a clean, integrated vehicle appearance.
