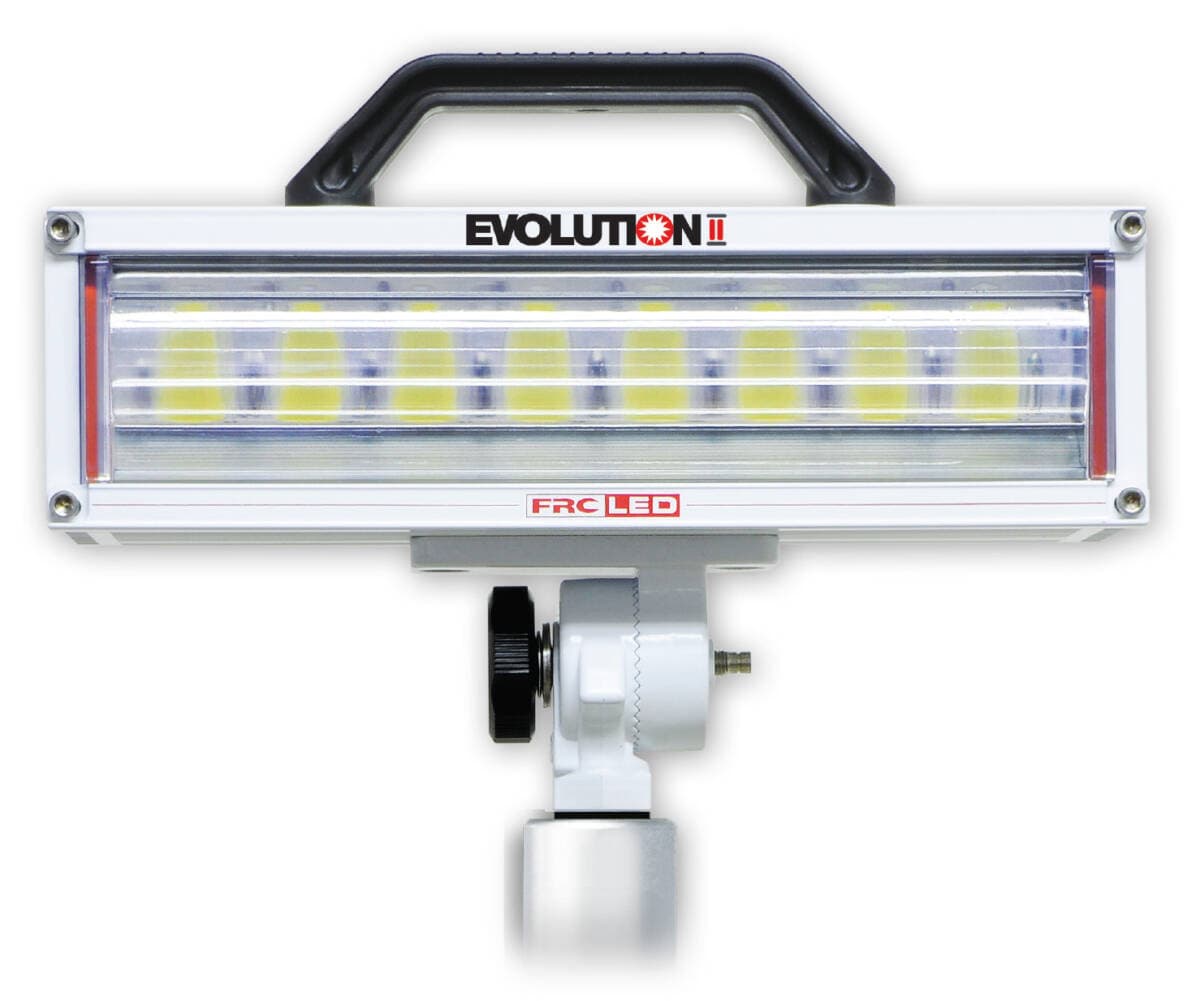

The EVOLUTION II LED Fixed Side Mount provides powerful, high-output scene lighting in a rugged side-mounted configuration designed for fire apparatus, rescue vehicles, and specialty response units. Built around the durable 580 fixed pedestal mount, this lighting system allows the lamphead to rotate up to 450° while a self-adjusting friction brake prevents unwanted movement during vehicle operation. The pedestal features a round mounting base attached to a side-mount bracket, creating a stable and reliable lighting solution for demanding emergency service environments.
The Evolution II utilizes advanced LED arrays, precision optics, and a parabolic reflector system to deliver exceptional scene illumination with a wide, uniform beam pattern. Available in V11 and V20 configurations, the lamphead generates up to 20,000 raw lumens while maintaining energy-efficient operation and a service life rated for 50,000 hours. A reinforced mounting knuckle, vibration-resistant adjustment hardware, and ergonomic molded handle provide dependable performance in all operating conditions.
Features
• Fixed side-mounted scene light system
• 580 pedestal mount with side-mount bracket
• Lamphead rotates up to 450°
• Self-adjusting friction brake prevents unwanted rotation
• Ultra-bright LED arrays for maximum scene illumination
• Advanced lens design focuses light where it is needed most
• Wide, uniform white light pattern
• Light color closely resembles natural sunlight
• Generates up to 20,000 raw lumens
• Produces up to 18,000 effective lumens
• Parabolic reflector and lens system maximize usable light output
• Full brightness instantly at power-up
• Instant restart capability
• Sure-grip molded handle for easy positioning
• Reinforced mounting knuckle for increased durability
• Unbalanced adjustment knob helps prevent loosening during vehicle travel
• Rated for 50,000 operating hours
• Compatible with 12V and 24V DC electrical systems
• Compact design provides more usable light from a smaller lamphead
• IP68-rated construction for protection against dust and water intrusion
• Ideal for apparatus side-scene illumination
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: EVOLUTION II
• Product Type: LED Fixed Side Mount Scene Light
• Mount Style: 580 Fixed Pedestal with Side-Mount Bracket
• Rotation: 450°
• Rotation Control: Self-Adjusting Friction Brake
• Voltage: 12/24 VDC
• Lamp Life: 50,000 Hours
• Environmental Rating: IP68
Available Models
• V11
• Voltage: 12/24 VDC
• Current Draw: 7.5A / 3.75A
• Raw Lumens: 11,000
• Effective Lumens: 9,900
• V20
• Voltage: 12/24 VDC
• Current Draw: 13.0A / 6.5A
• Raw Lumens: 20,000
• Effective Lumens: 18,000
Note: The EVOLUTION II LED Fixed Side Mount combines high-output LED performance with a rugged 450° rotating pedestal mount, providing dependable side-scene illumination for emergency response vehicles while maintaining a compact and durable installation.
