The EVOLUTION II LED Flat Brow Mount provides powerful scene illumination in a compact, low-profile design that mounts directly to flat surfaces such as the roof of a fire apparatus cab. Designed to deliver exceptional visibility without adding unnecessary height to the vehicle, the Evolution II combines advanced LED technology, precision optics, and rugged construction to provide dependable scene lighting for fire, rescue, EMS, and utility applications.
Featuring ultra-bright LED arrays and an advanced lens system, the Evolution II directs 100% of available light onto the scene, producing a wide, uniform beam pattern with exceptional clarity and reduced glare. Available in V11 and V20 configurations, the lamphead delivers up to 20,000 raw lumens while maintaining efficient power consumption and a service life rated for 50,000 hours. The reinforced mounting knuckle, sure-grip molded handle, and vibration-resistant adjustment hardware make the Evolution II ideal for demanding emergency vehicle environments.
Features
• Flat brow mount scene light designed for flat surface installations
• Ideal for cab roof mounting applications
• Low-profile lamphead design
• Ultra-bright LED arrays for maximum scene illumination

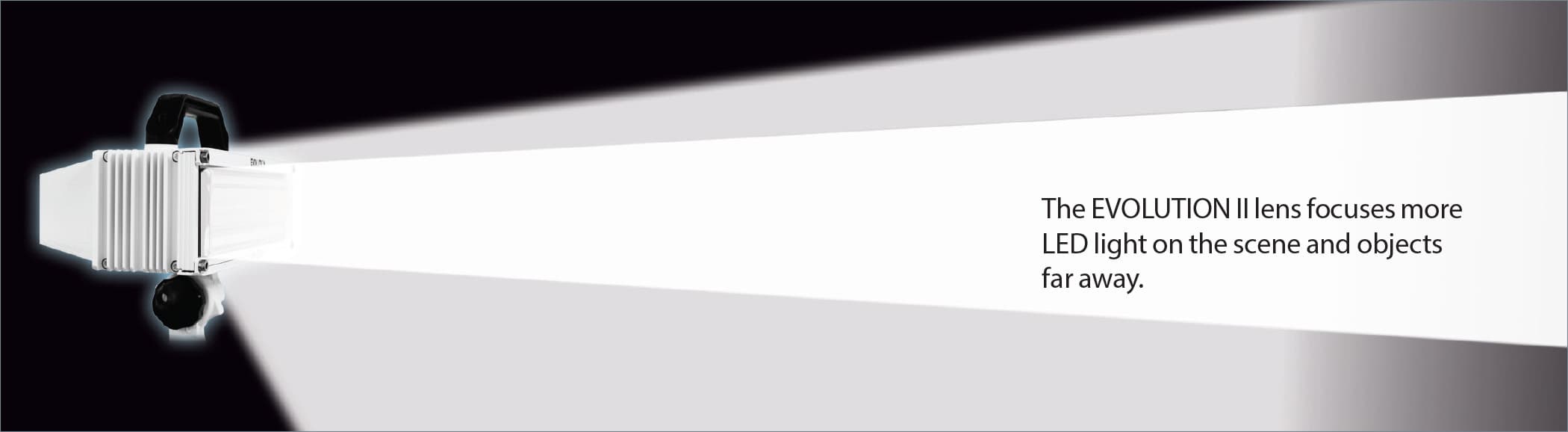

• Advanced lens design focuses light where it is needed most
• Wide, uniform white light pattern
• Light color closely resembles natural sunlight
• Generates up to 20,000 raw lumens
• Produces up to 18,000 effective lumens
• Parabolic reflector and lens system maximize usable light output
• Full brightness instantly at power-up
• Instant restart capability
• Sure-grip molded handle for easy positioning
• Reinforced mounting knuckle for increased durability
• Unbalanced adjustment knob helps prevent loosening during vehicle travel
• Rated for 50,000 operating hours
• Compatible with 12V and 24V DC electrical systems
• Compact design provides more usable light from a smaller lamphead
• IP68-rated construction for protection against dust and water intrusion
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: EVOLUTION II
• Product Type: LED Flat Brow Mount Scene Light
• Mounting Style: Flat Surface / Brow Mount
• Voltage: 12/24 VDC
• Lamp Life: 50,000 Hours
• Environmental Rating: IP68
Available Models
• V11
• Voltage: 12/24 VDC
• Current Draw: 7.5A / 3.75A
• Raw Lumens: 11,000
• Effective Lumens: 9,900
• V20
• Voltage: 12/24 VDC
• Current Draw: 13.0A / 6.5A
• Raw Lumens: 20,000
• Effective Lumens: 18,000
Note: The EVOLUTION II LED Flat Brow Mount combines powerful scene illumination, low-profile installation, and rugged durability, making it an ideal lighting solution for fire apparatus, rescue vehicles, and other emergency response platforms requiring dependable overhead scene lighting.
