The EVOLUTION II LED TwistLock Telescopic Poles combine high-output EVOLUTION II LED scene lighting with Fire Research Corporation's rugged telescopic pole systems, providing elevated illumination for fire apparatus, rescue vehicles, and specialty response units. Designed to place powerful scene lighting above apparatus obstructions, these telescoping systems allow responders to quickly position light exactly where it is needed while maximizing coverage and reducing shadows at emergency scenes.
Built from maintenance-free anodized aluminum, FRC telescopic poles feature 360° rotation and the exclusive patented TwistLock mechanism, which securely locks the pole in position without the risk of jamming or over-tightening. Combined with the EVOLUTION II lamphead, which delivers up to 20,000 raw lumens of bright white light, the system provides dependable elevated scene lighting with exceptional durability, ease of operation, and long service life.
Features
• Elevated scene lighting system with EVOLUTION II LED lamphead
• Available in multiple top-mount and side-mount telescopic pole configurations
• EVOLUTION II lamphead generates up to 20,000 raw lumens
• Produces up to 18,000 effective lumens
• Ultra-bright LED arrays for maximum scene illumination
• Advanced lens design focuses light where it is needed most
• Wide, uniform white light pattern
• Light color closely resembles natural sunlight
• Parabolic reflector and lens system maximize usable light output
• Full brightness instantly at power-up
• Instant restart capability

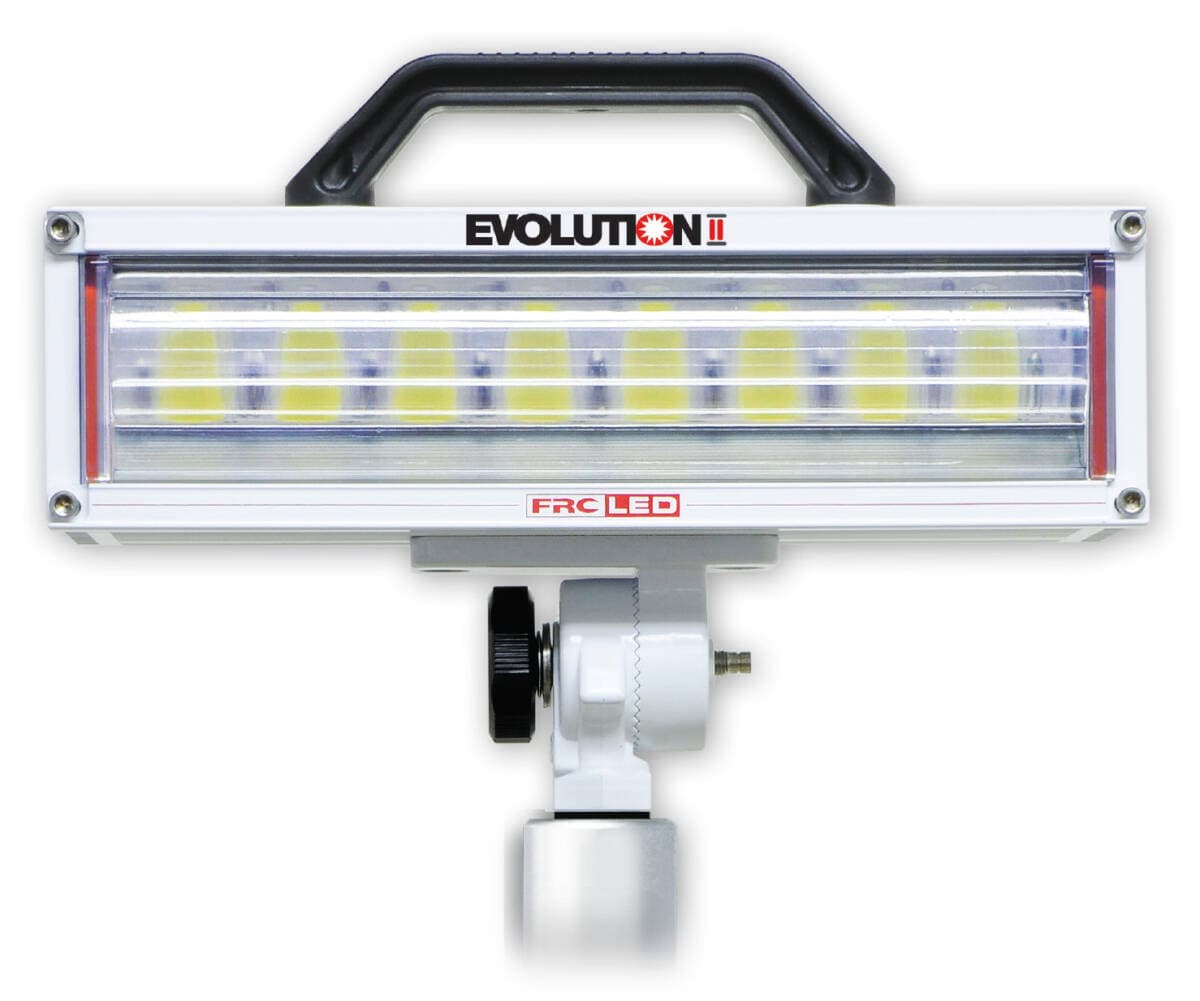

• Sure-grip molded handle for easy lamphead positioning
• Reinforced mounting knuckle for increased durability
• Unbalanced adjustment knob helps prevent loosening during vehicle travel
• Rated for 50,000 operating hours
• Compatible with 12V and 24V DC electrical systems
• All telescopic poles constructed from anodized aluminum
• Maintenance-free pole construction
• All poles rotate 360°
• Exclusive TwistLock pole locking mechanism
• TwistLock can be operated in either direction
• Locking mechanism cannot jam or be over-tightened
• No protruding handles to snag gear or straps
• Knurled locking surface provides a secure grip
• No metal-to-metal contact within locking mechanism reduces wear
• Standard retractable wiring cord on extension poles
• Grooved outer tube surfaces improve grip and handling
• Adjustable lamphead elevation with pivoting mounting arm
• Grab Handle included on Models 530, 540, and 542
• Grab Handle provides secure operation while wearing gloves
• Grab Handle qualifies as an NFPA-compliant handrail
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: EVOLUTION II
• Product Type: LED Telescopic Pole Scene Light System
• Pole Material: Anodized Aluminum
• Pole Rotation: 360°
• Locking Mechanism: Patented TwistLock System
• Wiring: Four-Foot Retractable Cord (Standard Models)
• Lamphead Voltage: 12/24 VDC
• Lamp Life: 50,000 Hours
• Environmental Rating: IP68
Available Lamphead Models
• V11
• Voltage: 12/24 VDC
• Current Draw: 7.5A / 3.75A
• Raw Lumens: 11,000
• Effective Lumens: 9,900
• V20
• Voltage: 12/24 VDC
• Current Draw: 13.0A / 6.5A
• Raw Lumens: 20,000
• Effective Lumens: 18,000
Available Pole Models

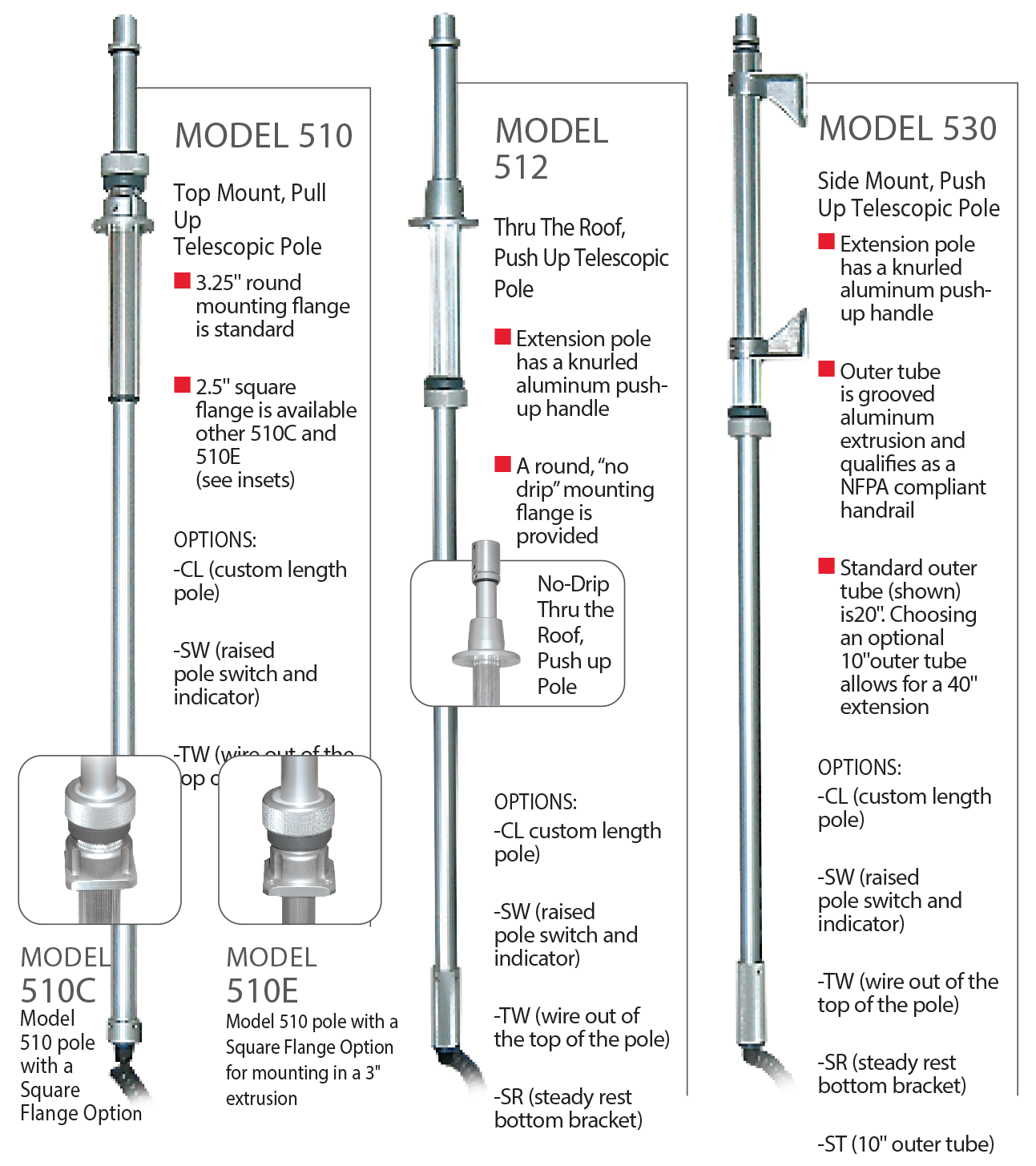

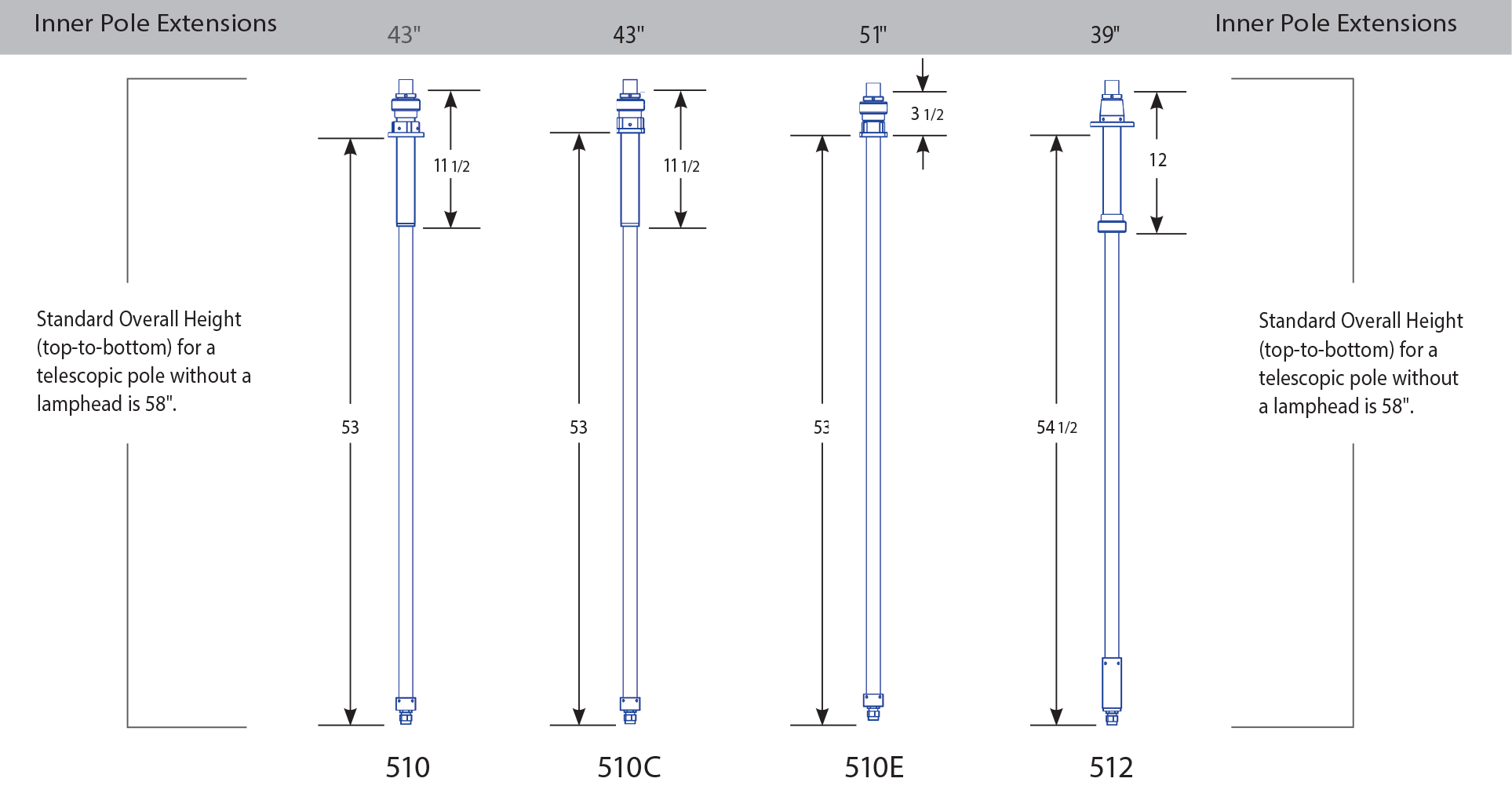

• Model 510 – Top Mount, Pull-Up Telescopic Pole
• Model 510C – Model 510 with Square Flange Option
• Model 510E – Model 510 with Square Flange for 3" Extrusion Mounting
• Model 512 – Through-the-Roof, Push-Up Telescopic Pole

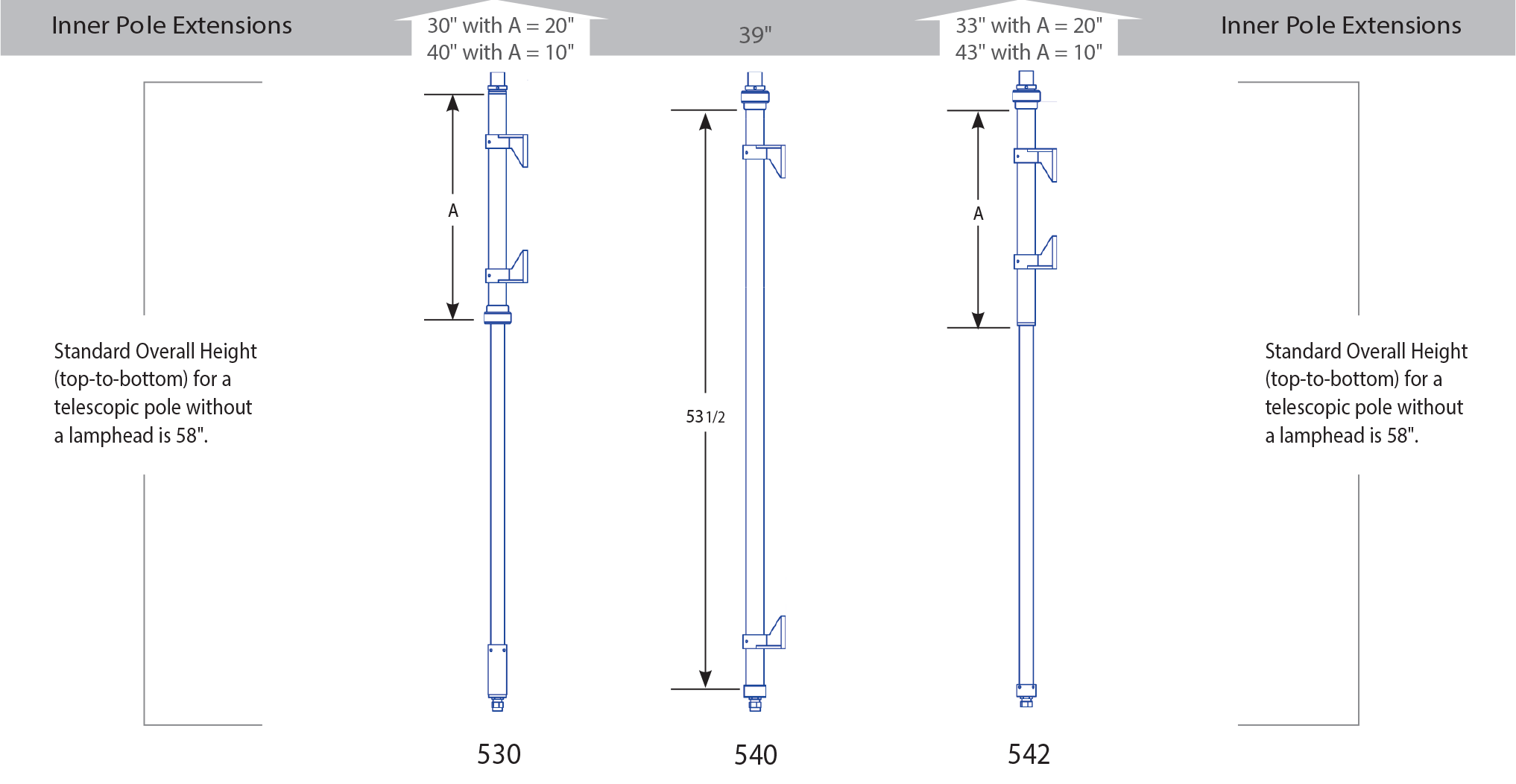

• Model 530 – Side Mount, Push-Up Telescopic Pole

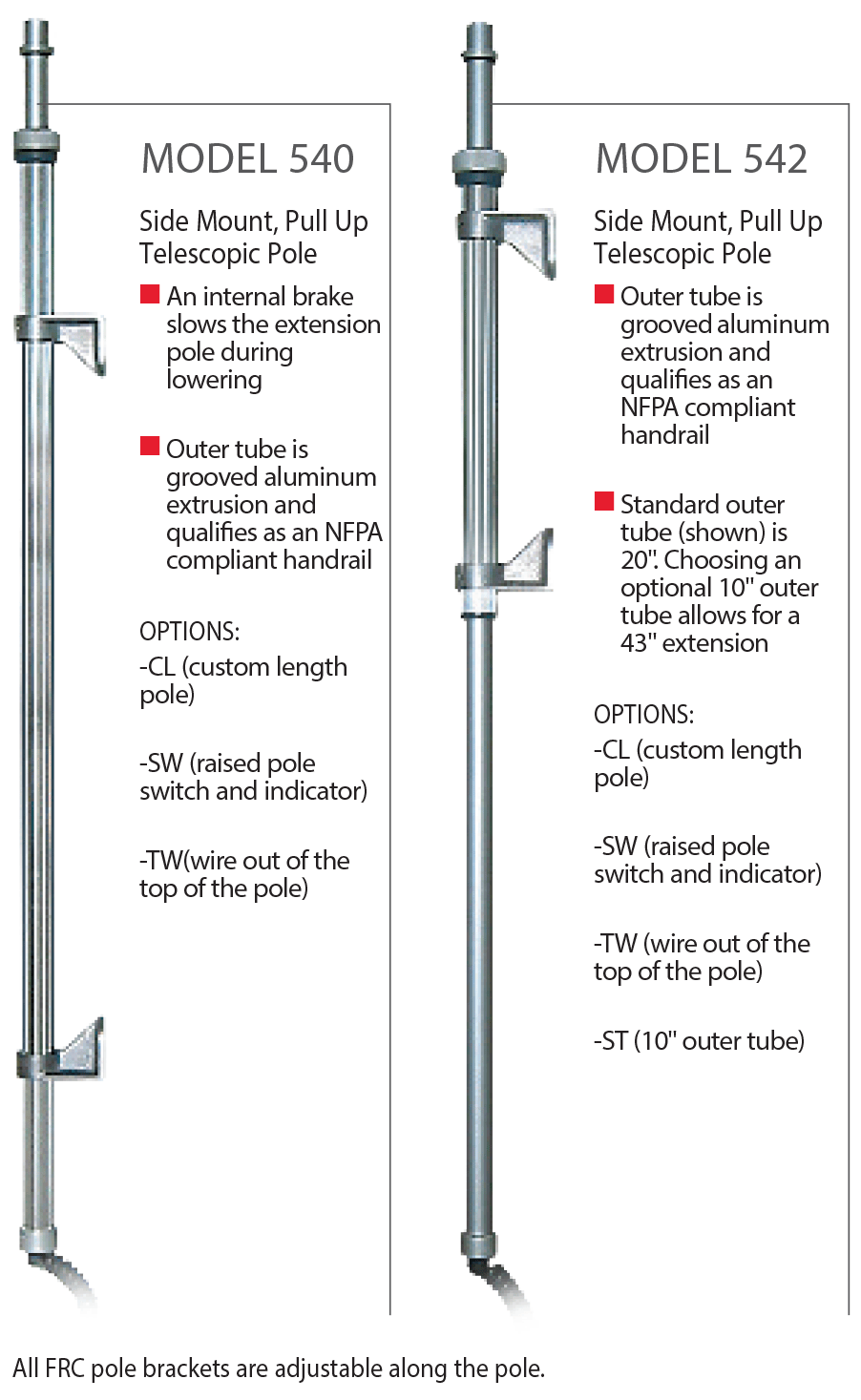

• Model 540 – Side Mount, Pull-Up Telescopic Pole
• Model 542 – Side Mount, Short Pull-Up Telescopic Pole
Note: The EVOLUTION II LED TwistLock Telescopic Pole system combines elevated scene lighting, 360° positioning capability, and FRC's patented TwistLock technology to provide dependable, high-performance illumination for emergency response operations.
