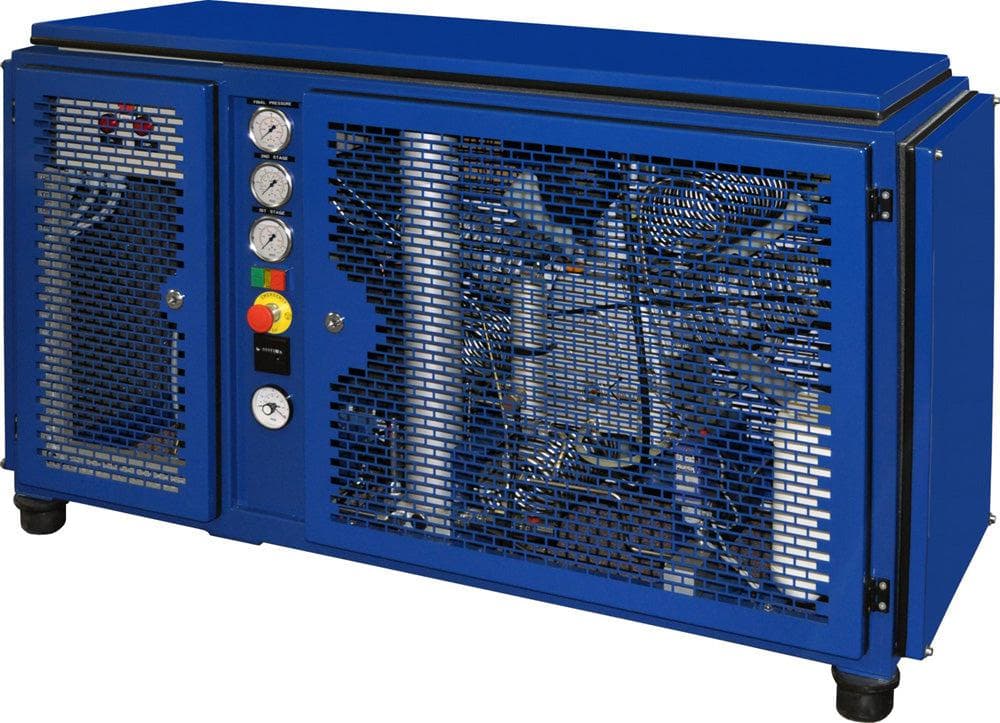

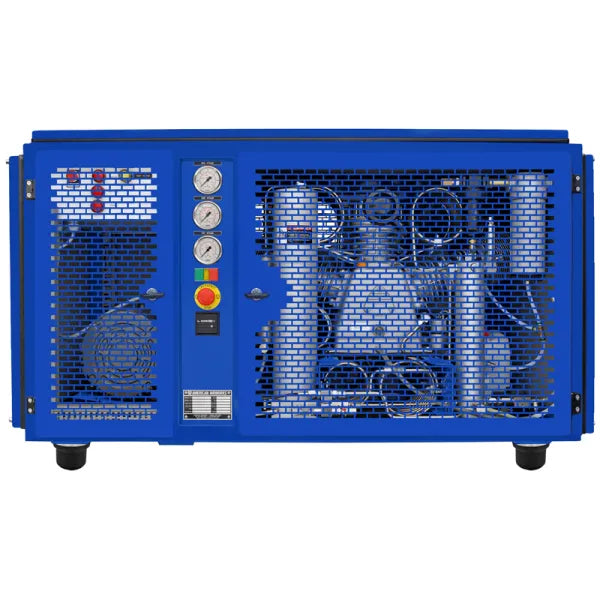

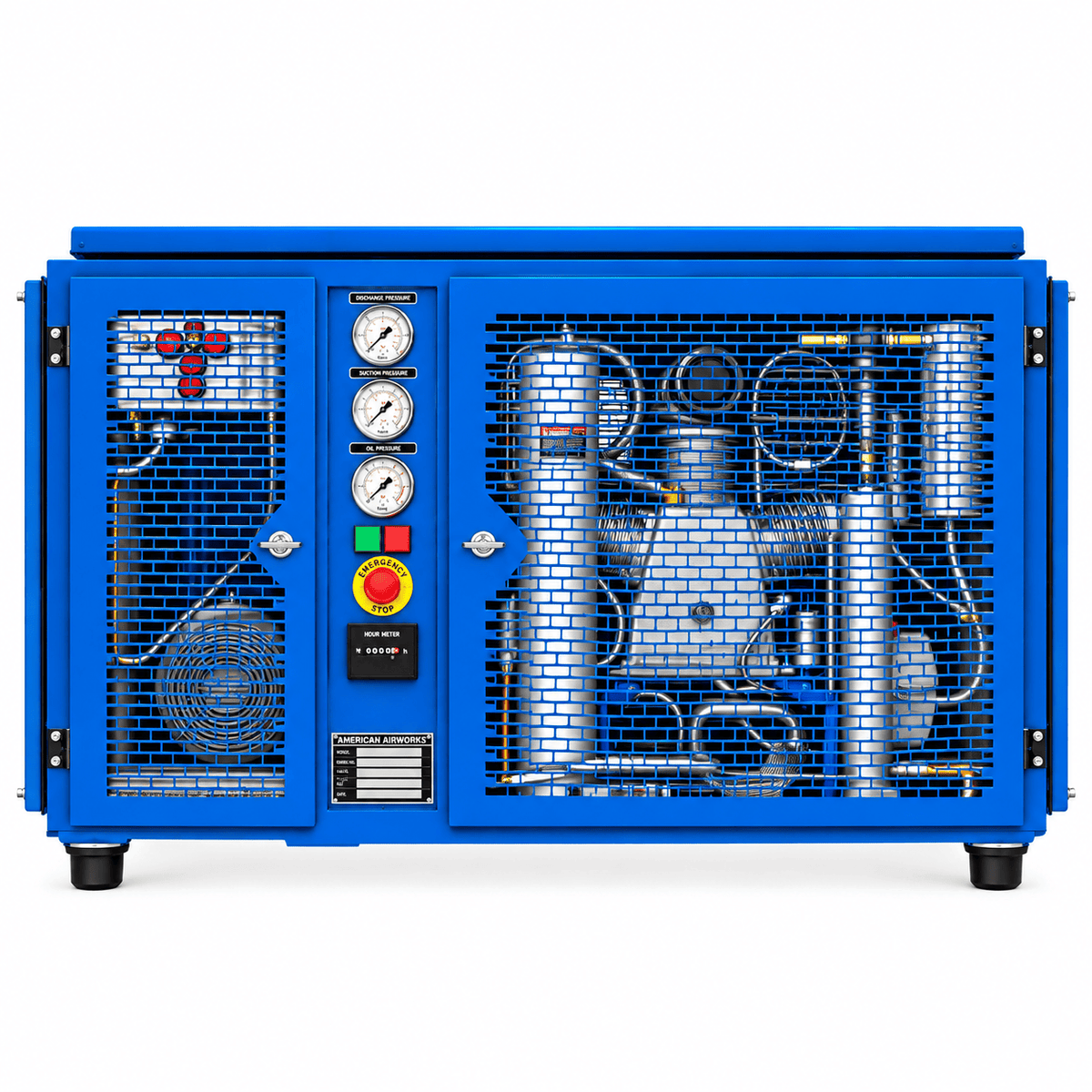

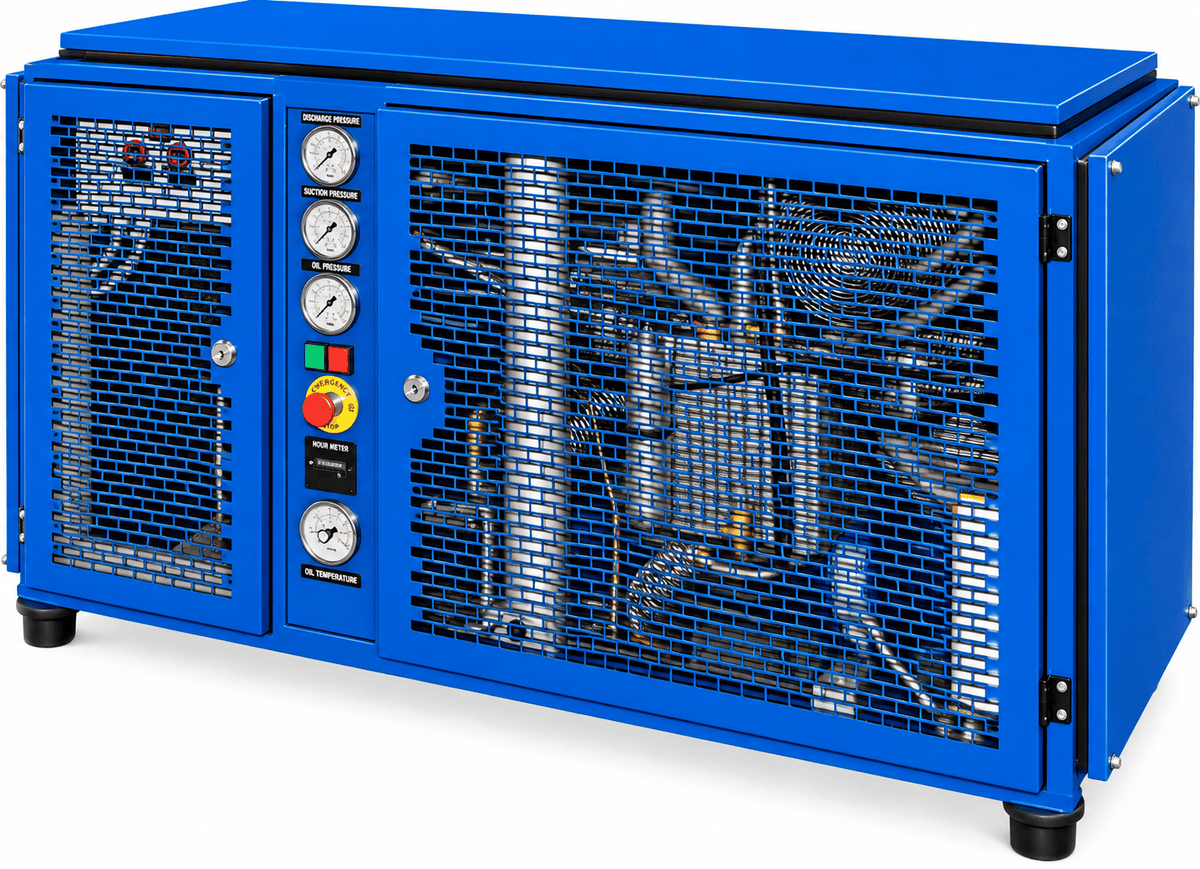

The American Airworks Fast 90H 7.5 HP Horizontal Breathing Air Compressor is a compact, continuous-duty high-pressure breathing air compressor designed to deliver reliable 5000 PSI breathing air for SCBA and SCUBA cylinder refilling. Its horizontal design provides easy access for maintenance while delivering dependable performance for fire departments, dive shops, fire brigades, industrial users, and paintball facilities.
Engineered for long-term reliability, the Fast 90H combines CGA Grade E air purification, automatic condensate management, and multiple safety shutdown systems into a user-friendly package. Available with either a single-phase or three-phase motor, this compressor offers professional-grade performance and filtration while maintaining a compact footprint for smaller breathing air operations.
Features
• Continuous-duty high-pressure breathing air compressor
• Available with single-phase or three-phase motor options
• Produces breathing air up to 5000 PSI
• 13,000 CF @ 80°F / 20,000 CF @ 68°F CGA Grade E filtration system
• Direct on-line starter with magnetic starter
• Start/stop switch with thermal protection
• Automatic stop function
• Automatic condensate drains with manual backup controls
• Moisture separator after the second stage
• Two large stainless steel intercoolers
• Large stainless steel aftercooler
• Three interstage safety valves
• Pressure-maintaining and non-return valve
• Micronic air inlet filter
• Condensate collector reservoir
• Hour meter for maintenance tracking
• Interstage pressure gauges
• Emergency stop button
• Visual oil level sight glass
• Low oil level shutdown switch with alarm
• High temperature shutdown switch with alarm
Specifications
• Manufacturer: American Airworks
• Product Series: Fast 90H
• Product Type: Horizontal Breathing Air Compressor
• Motor Power: 7.5 HP
• Maximum Working Pressure: 5000 PSI
• Capacity: 9 SCFM
• Operating Speed: 1100 RPM
• Filtration Rating: 13,000 CF @ 80°F / 20,000 CF @ 68°F
• Dimensions: 51" L x 32" W x 32" H
• Weight: 500 lb
• Available Variants:
• Single-Phase Motor (AC94590-HE1) – 230V, 60Hz
• Three-Phase Motor (AC94590-HE3) – 230V, 60Hz
• Recommended Applications:
• Fire departments
• Fire brigades
• SCUBA diving operations
• Industrial breathing air applications
• Haz-mat response teams
• Commercial diving operations
• Paintball facilities
