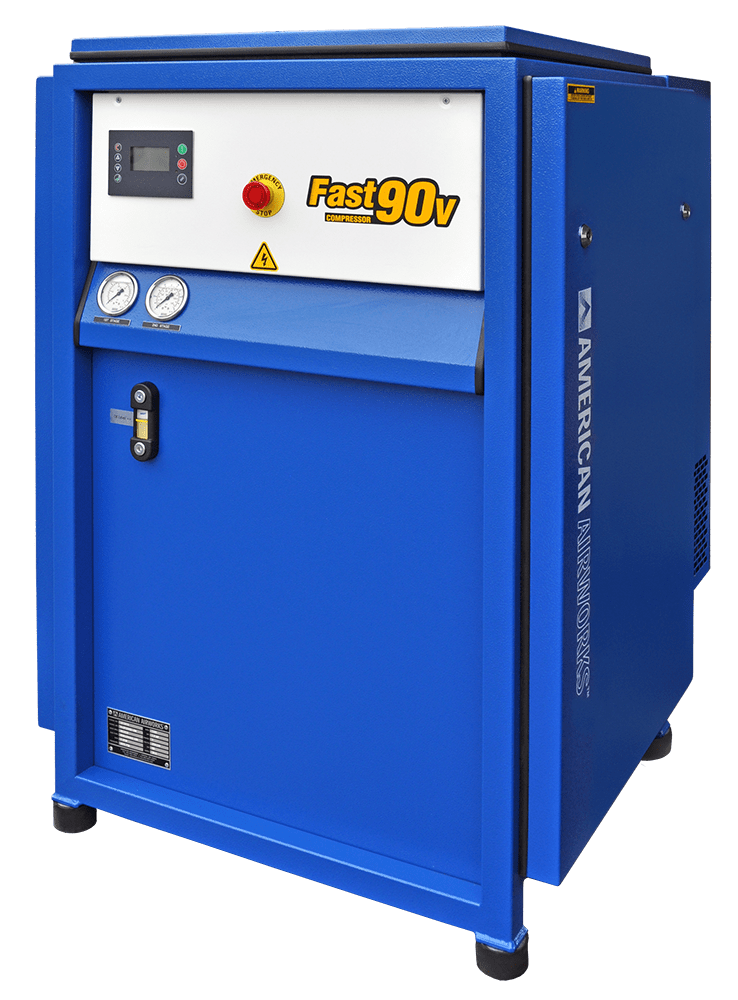

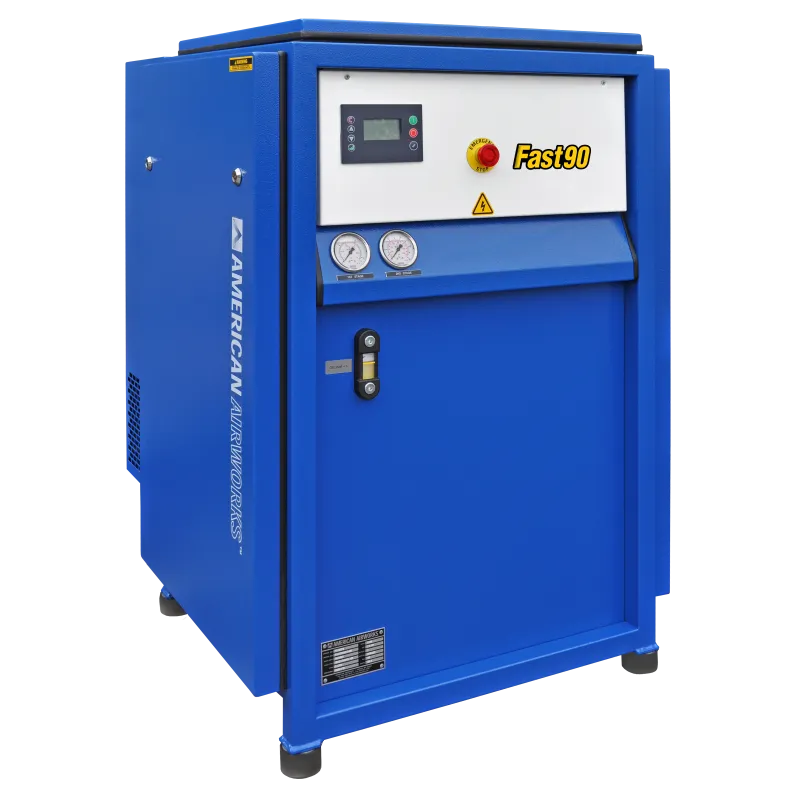

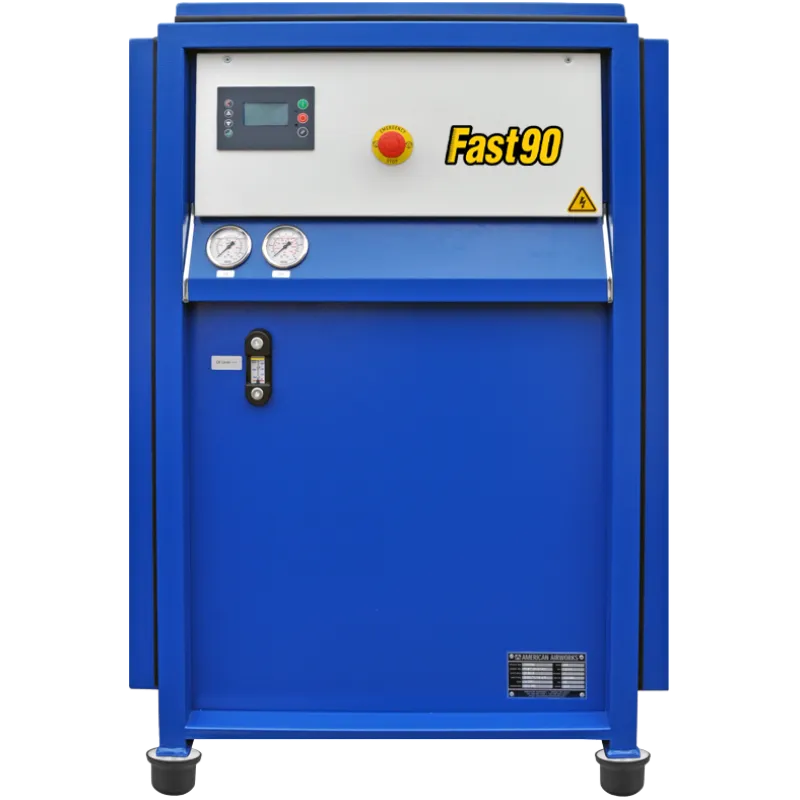

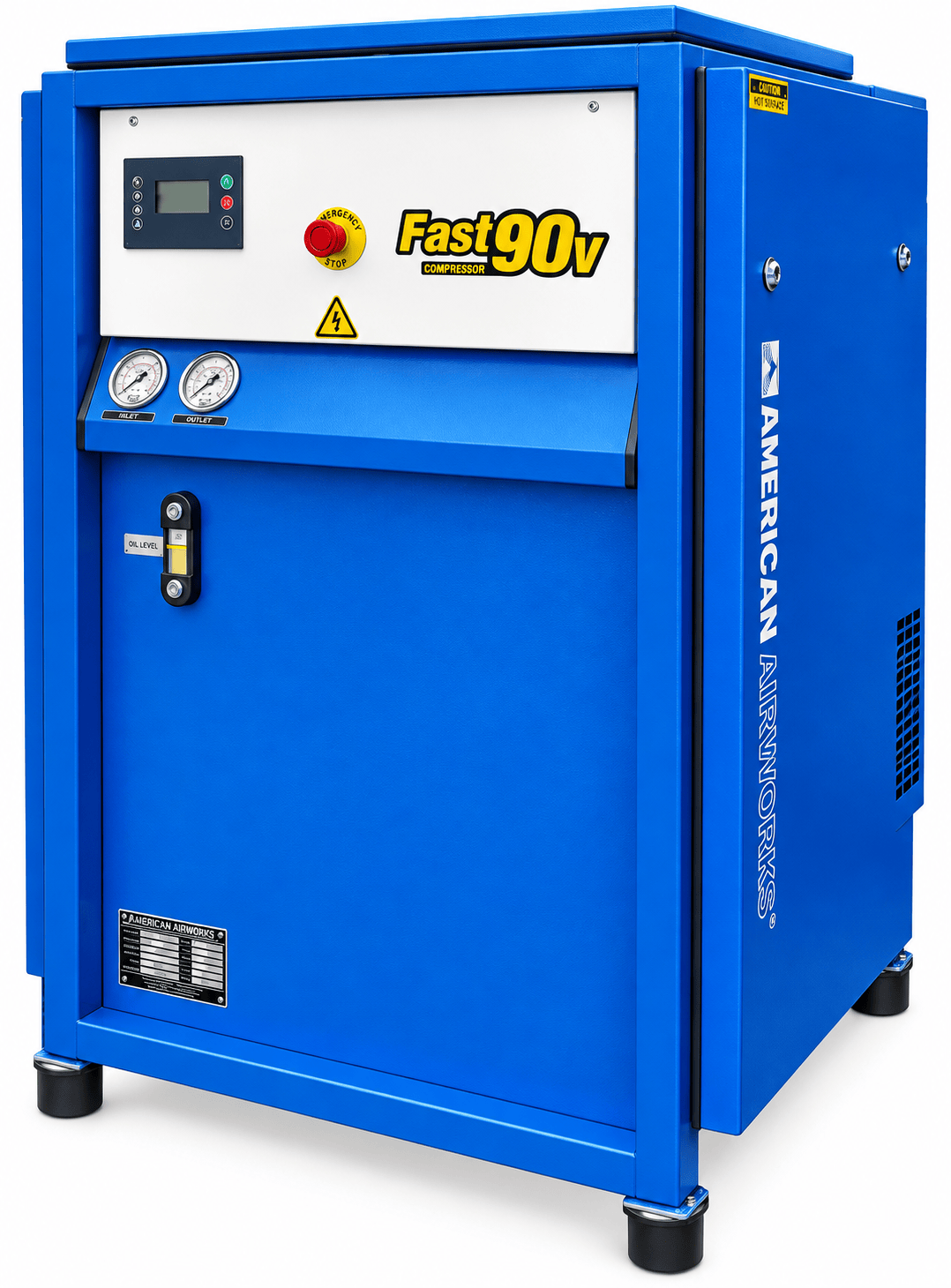

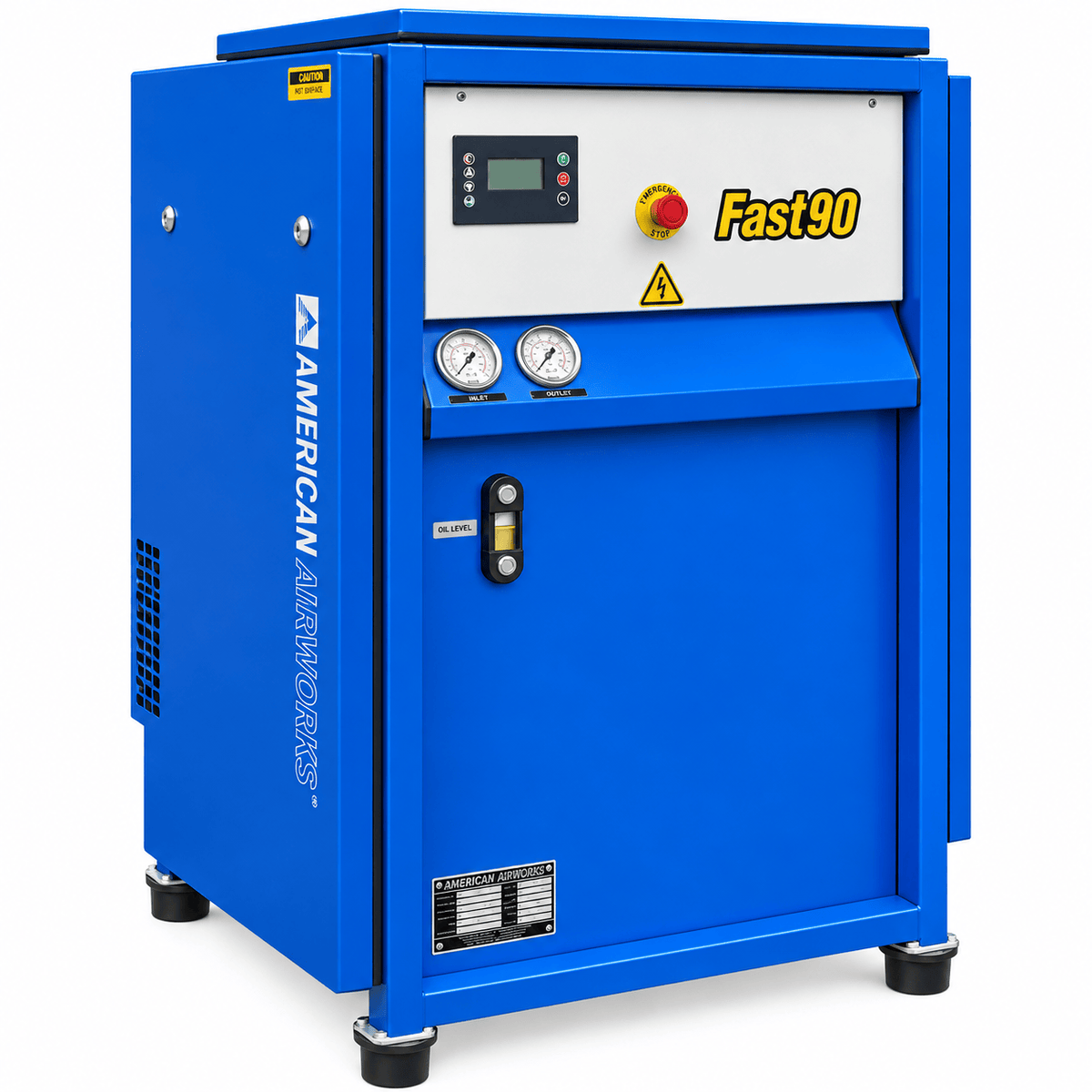

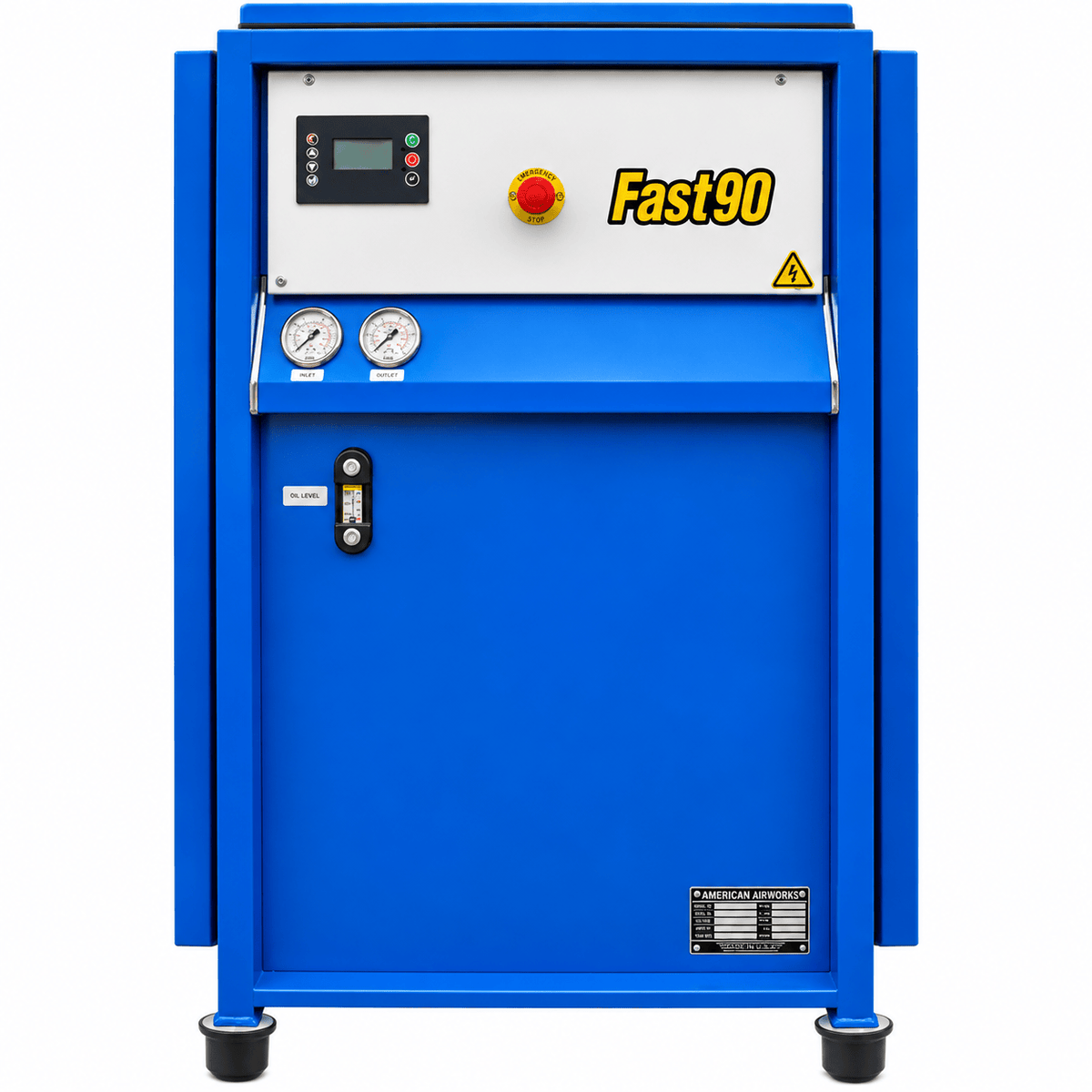

The American Airworks Fast 90V 7.5 HP Vertical Breathing Air Compressor is a compact, continuous-duty high-pressure breathing air compressor designed to provide dependable CGA Grade E breathing air for SCBA and SCUBA cylinder refilling. Popular with fire departments, dive shops, industrial users, haz-mat teams, commercial divers, and paintball facilities, the Fast 90V combines powerful performance with a space-saving vertical design and user-friendly operation.
Built for reliability and ease of use, the Fast 90V features an advanced electronic control system, automatic condensate drains, multiple safety shutdown systems, and a high-capacity purification system rated for up to 20,020 cubic feet of filtration. Available with either a single-phase or three-phase motor, this compressor delivers efficient, low-maintenance operation while providing the safety features and performance demanded by professional breathing air applications.
Features
• Continuous-duty high-pressure breathing air compressor
• Available with single-phase or three-phase motor options
• Produces CGA Grade E breathing air
• Advanced electronic control system for monitoring and servicing data
• LCD display shows fill pressure, operating temperature, running hours, service intervals, and alarms
• Automatic start/stop control system
• 24V secondary voltage for increased operator safety
• Emergency stop button
• 13,000 CF @ 80°F / 20,020 CF @ 68°F purification cartridge system
• Moisture separator after second stage
• Two large stainless steel intercoolers
• Large stainless steel aftercooler
• Three interstage safety valves
• Pressure-maintaining and non-return valve
• Interstage pressure sensors with automatic emergency shutdown protection
• Automatic condensate drains with manual backup controls
• Condensate collector reservoir
• Large cooling fan for optimum operating temperatures
• Sound-dampening insulation for quiet operation
• Interstage pressure gauges
• Low oil level shutdown switch with alarm
• High temperature shutdown switch with alarm
• Micronic air inlet filter
• Direct on-line starter
Specifications
• Manufacturer: American Airworks
• Product Series: Fast 90V
• Product Type: Vertical Breathing Air Compressor
• Motor Power: 7.5 HP
• Maximum Working Pressure: 6000 PSI
• Charging Rate: 9 CFM
• Drive Speed: 1100 RPM
• Filtration Rating: 13,000 CF @ 80°F / 20,020 CF @ 68°F
• Dimensions: 32" L x 40" W x 48" H
• Weight: 573 lb
• Available Variants:
• Single-Phase Motor (AC94590-VE1)
• Three-Phase Motor (AC94590-VE3)
• Recommended Applications:
• Fire departments
• Fire brigades
• SCUBA diving operations
• Haz-mat response teams
• Homeland security teams
• Industrial breathing air applications
• Laboratory breathing air systems
• Commercial diving operations
• Paintball facilities
