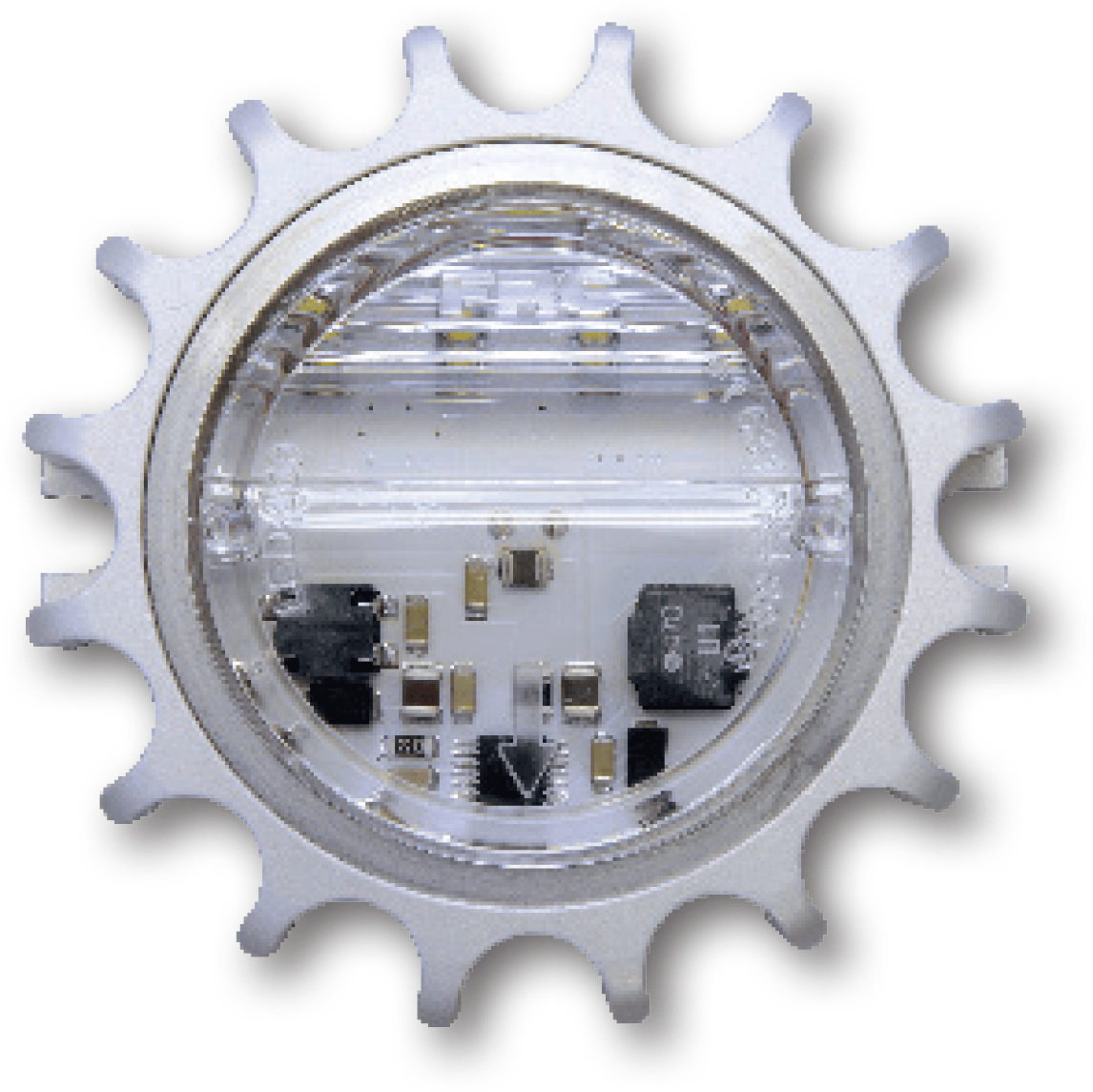

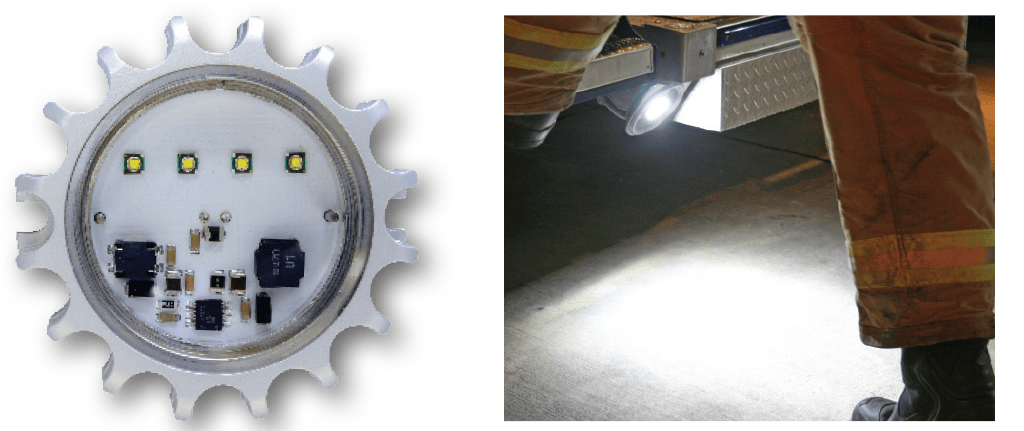

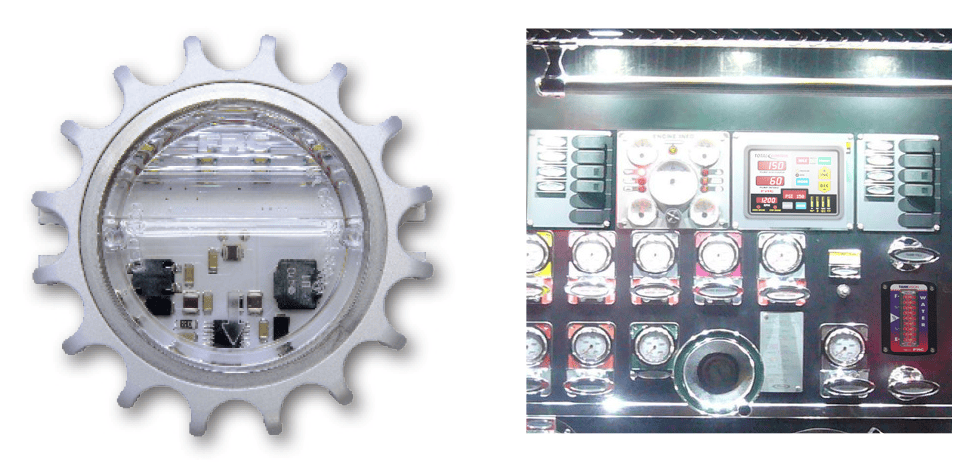

The Firefly LED Compartment Lighting series provides compact, high-output illumination for apparatus compartments, control panels, underbody lighting, and other vehicle applications where space is limited but reliable lighting is essential. Designed specifically for emergency vehicles and demanding work environments, Firefly lights deliver bright, efficient illumination while maintaining an extremely compact footprint.
Available in both focused and flood beam configurations, Firefly LED lights produce up to 650 lumens of ultra-bright white light from four long-life LEDs housed in a rugged waterproof anodized aluminum enclosure. With low power consumption, instant-on performance, and flexible mounting options, Firefly lights are ideal for compartment lighting, equipment storage areas, vehicle walkways, and ground illumination.
Features
• Compact LED compartment and work light
• Produces up to 650 lumens of ultra-bright white light
• Four long-life white LEDs
• Small footprint for installation in confined spaces
• Mounts in any orientation
• Compatible with any flat mounting surface
• Low power consumption reduces electrical load
• Instant-on operation at full brightness
• Waterproof construction for demanding environments
• Rugged anodized aluminum housing
• Suitable for compartments, panels, underbody lighting, and surface illumination
• Designed for emergency vehicle and industrial applications
Available Models
• LED100-Q01 – Focused Beam
• Compartment lighting configuration
• Glare-reducing lens design
• Concentrated illumination for equipment and storage areas
• LED110-Q01 – Flood Beam
• Wide-area lighting configuration
• Ideal for underbody and work area illumination
• Provides broader light distribution
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: Firefly LED
• Product Type: Compact LED Compartment Light
• Light Output: 650 Lumens
• LED Quantity: 4 White LEDs
• Beam Patterns Available:
• Focused Beam
• Flood Beam
• Voltage:
• 12 VDC
• 24 VDC
• Current Draw:
• 0.8 Amps @ 12 VDC
• 0.4 Amps @ 24 VDC
• Housing Material: Anodized Aluminum
• Waterproof: Yes
• Mounting Orientation: Any Position
• Mounting Surface: Flat Surface Compatible
Applications
• Apparatus Compartments
• Equipment Storage Areas
• Control Panels
• Underbody Lighting
• Ground Illumination
• Vehicle Walkways
• Rescue Vehicles
• Utility Trucks
• Industrial Equipment
Note: Firefly LED Compartment Lighting combines compact size, low power consumption, and 650 lumens of bright white illumination in a rugged waterproof housing, making it an ideal solution for compartment, panel, and underbody lighting applications.
