Description

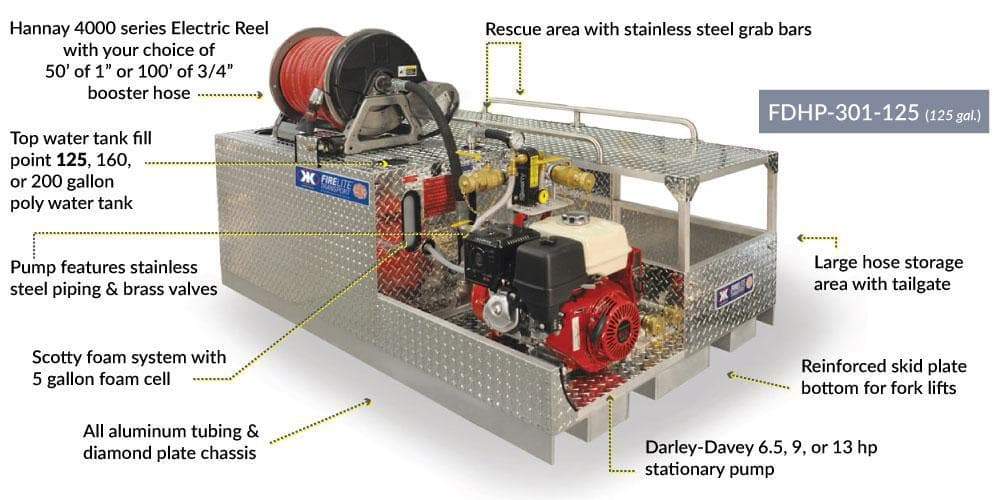

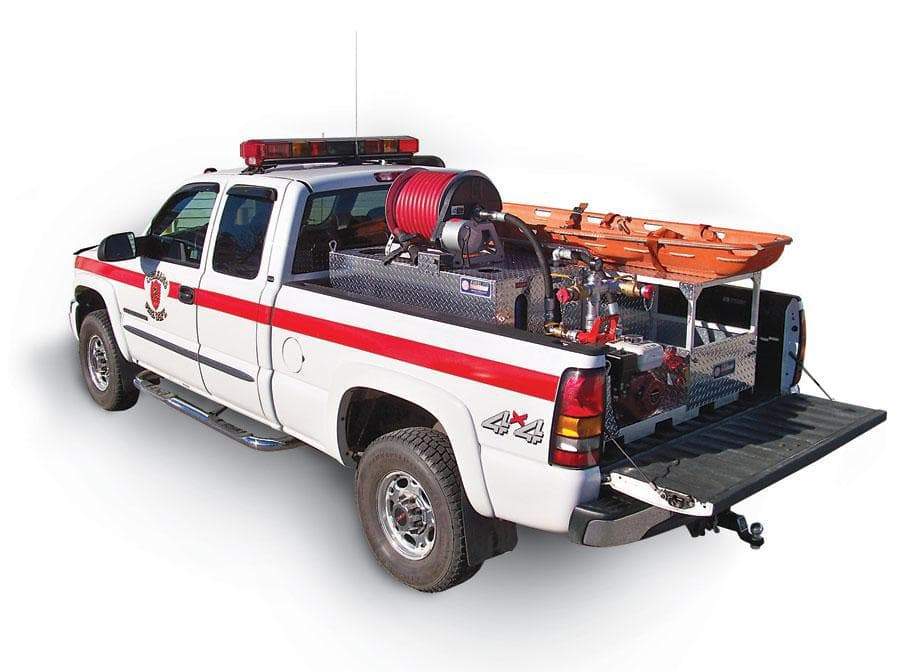

The Kimtek FIRELITE® Deluxe Truck Skid Unit is a complete wildland firefighting and rescue slip-on skid designed to quickly convert a full-size pickup truck or flatbed into a capable brush truck. Ideal for fire departments, forestry agencies, DNR, National Forest personnel, military installations, and industrial facilities, the FIRELITE® combines dependable firefighting performance with integrated patient rescue capability in a compact, low-profile design.
Constructed with a rugged all-aluminum frame, bright aluminum diamond plate, and aluminum tubing sub-frame, the FIRELITE® is built for long-lasting durability while maintaining a low center of gravity for improved off-road stability. Available with either a 200-gallon or 300-gallon fully baffled poly water tank, each unit includes an integrated 5-gallon foam cell, Scotty® Through-the-Pump Class A Foam System, and a Darley-Davey® two-stage high-pressure pump powered by a commercial-grade Honda engine. The system is capable of drafting from water sources up to 19 feet deep and delivers reliable fire suppression performance for wildland, rural, and urban interface operations.
The integrated rescue area features stainless steel grab rails and included Velcro® D-loop straps for transporting a patient on a Stokes basket or long backboard, while the enclosed hose storage area provides room for hard suction hose, forestry hose, nozzles, and additional equipment. A pre-connected Hannay® electric rewind booster reel, all stainless steel plumbing, brass quarter-turn valves, integrated tank sight gauges, and reinforced skid plate complete this versatile firefighting and rescue package.
Features
• Complete wildland firefighting and rescue slip-on skid unit for pickup trucks and flatbeds
• Available with 200-gallon or 300-gallon fully baffled poly water tank
• Fully baffled tank designed to meet NFPA standards
• Rugged all-aluminum construction with bright aluminum diamond plate and aluminum tubing sub-frame
• Low-profile design with a low center of gravity for improved off-road stability
• Darley-Davey® two-stage high-pressure pump with commercial-grade Honda engine
• Capable of drafting water up to 19 feet with initial prime
• Scotty® 4171 Through-the-Pump Class A Foam System with integrated 5-gallon foam cell
• Pre-connected Hannay® 4000 Series electric rewind booster reel
• Choice of 100 feet of 3/4" booster hose or 50 feet of 1" booster hose with adjustable wildland fog nozzle
• All stainless steel plumbing with quarter-turn brass valves for long service life
• Two 1-1/2" gated discharge valves (side and rear)
• One 1" gated pump-to-tank refill valve
• One 1" gated booster reel valve
• One 1-1/2" gated auxiliary suction valve
• One 1-1/2" gated tank-to-pump valve
• Integrated hose storage compartment with tailgate for firefighting equipment
• Rescue area with dual 48" stainless steel grab rails for mounting a Stokes basket or long backboard
• Includes ten 24" Velcro® D-loop straps for patient transport
• Integrated water and foam tank sight gauges for quick level monitoring
• Adapter allows backpack water tank refilling without starting the pump
• Reinforced skid plate bottom for forklift handling and transport
• Designed for wildland firefighting, brush trucks, urban interface response, and off-road rescue operations
Specifications
• Manufacturer: Kimtek
• Product Type: Wildland Firefighting & Rescue Truck Skid Unit
• Available Models:
• FDHP-200-303-13 – 200 Gallon Water Tank
• FDHP-300-303-13 – 300 Gallon Water Tank
• Water Tank Capacity: 200 Gallons or 300 Gallons
• Foam Cell Capacity: 5 Gallons
• Tank Construction: Polyethylene, fully baffled to NFPA standards
• Pump: Darley-Davey® Two-Stage High-Pressure Pump
• Engine: 13 HP Commercial Honda® Gas Engine
• Maximum Draft Lift: Up to 19 ft.
• Pump Performance:
• 120 GPM @ 40 PSI
• 95 GPM @ 108 PSI
• 60 GPM @ 133 PSI
• 20 GPM @ 146 PSI
• Plumbing: Stainless steel
• Valves: Quarter-turn brass
• Booster Reel: Hannay® 4000 Series electric rewind
• Booster Hose Options: 100 ft. of 3/4" hose or 50 ft. of 1" hose
• Foam System: Scotty® 4171 Through-the-Pump Class A Foam System
• Rescue System: Patient transport area with stainless steel grab rails and ten Velcro® D-loop straps
• Compatibility: Designed for most 8-foot pickup truck beds and flatbed trucks
