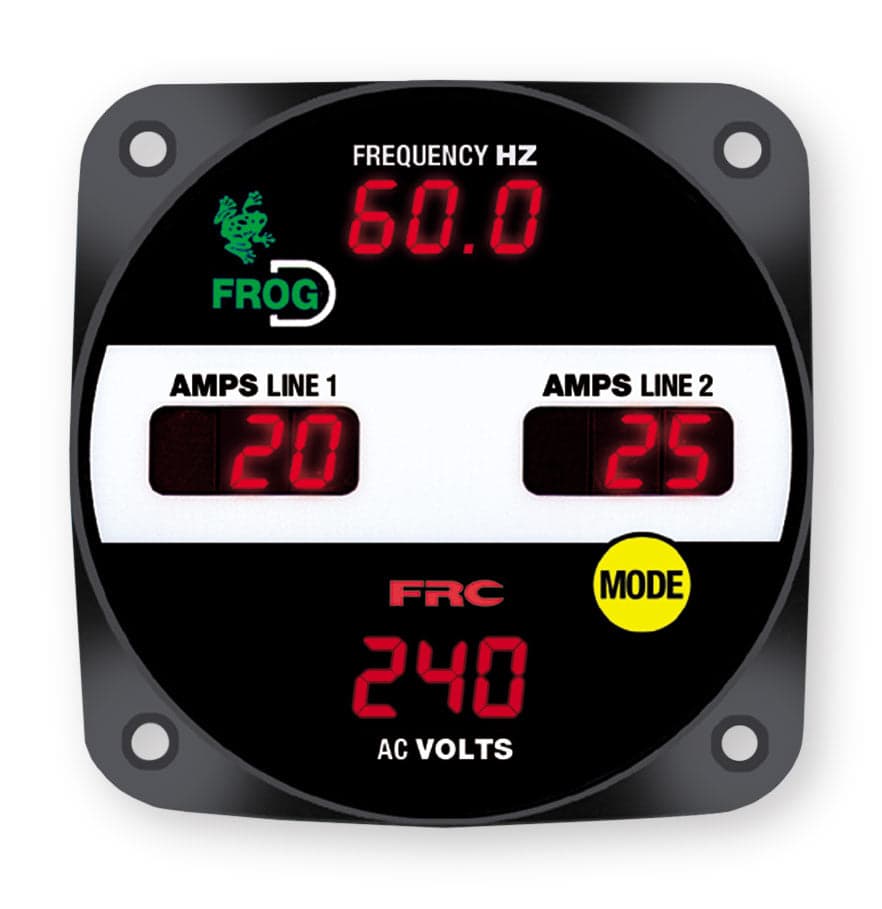

The FROG-D Single Phase Generator Display provides reliable real-time monitoring for single-phase generators used on fire apparatus, rescue vehicles, and other mobile power applications. Designed for hydraulic, diesel-powered, and PTO-driven generators, the FROG-D continuously displays generator frequency, voltage, and current while helping operators monitor system performance and identify potential issues before they affect operations.
Featuring highly visible ultra-bright LED displays, the FROG-D provides clear generator status information in all lighting conditions. The convenient MODE button allows operators to view total generator operating hours and hydraulic oil temperature, while built-in warning functions help protect equipment by alerting operators to current overloads, voltage fluctuations, and elevated hydraulic oil temperatures. Compact, durable, and easy to install, the FROG-D is an ideal solution for monitoring mobile generator systems.
Features
• Single-phase generator monitoring system
• Displays generator frequency
• Displays generator voltage
• Displays generator current
• Ideal for hydraulic-powered generators
• Ideal for diesel-powered generators
• Ideal for PTO-driven generators
• Rated for 50/60 Hz generators
• Suitable for generators from 6 to 45 kW
• Highly visible ultra-bright LED display
• MODE button displays total generator hours
• MODE button displays hydraulic oil temperature
• Built-in warning indicators for current overload conditions
• Built-in warning indicators for voltage fluctuations
• High hydraulic oil temperature monitoring capability
• Compact display design
• Optional audible alarm buzzer available
• Optional hydraulic oil temperature sensor available
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: FROG-D
• Product Type: Single Phase Generator Display
• Model: FDA100-XXX
• Generator Configuration: Single Phase
• Generator Rating: 6–45 kW
• Frequency Rating: 50/60 Hz
• Display Dimensions: 4.25" H x 4.25" W
• Display Dimensions (Metric): 108 mm H x 108 mm W
• Interface Module Dimensions: 3.8" x 5.9" x 1.9"
• Interface Module Dimensions (Metric): 97 mm x 150 mm x 48 mm
Standard Kit Includes
• Display Module
• (2) Current Sensors
• AC Voltage Transformer
• Required Cables
Options
• Audible Alarm Buzzer
• Hydraulic Oil Temperature Sensor
Note: The FROG-D Single Phase Generator Display provides continuous monitoring of generator output and operating conditions, helping operators maximize generator performance while protecting critical electrical equipment from overload and abnormal operating conditions.
