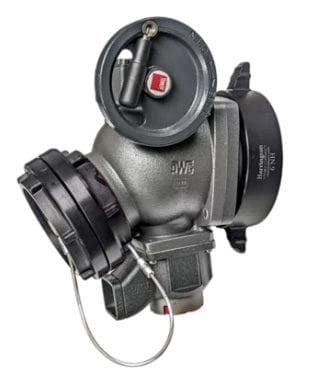

The Clearance H1000 Ball Intake Valve is a low-profile intake valve designed for pumper intake control and high-volume water supply operations. This clearance unit features a 6" NH Female Swivel inlet x 5" Storz outlet with Storz cap, providing a compact and efficient connection for apparatus water supply applications. The full-flow ball valve design minimizes friction loss while the visual position indicator allows operators to quickly confirm valve status.
Built for durability and reliability, the valve meets a 900 PSI hydrostatic strength test and includes a 3/4" air bleeder valve, integrated 30° elbow, and a field-adjustable 250 PSI pressure relief valve. The operating handle can be mounted on either side of the valve to accommodate apparatus layouts and operator preferences.
Features
• Clearance configuration: 6" NH Female Swivel x 5" Storz with Storz Cap
• Low-profile design for apparatus intake control
• Full-flow ball valve for maximum water flow efficiency
• Meets 900 PSI hydrostatic strength test
• Integrated 30° elbow design
• Easy-to-read visual ball position indicator
• Includes 3/4" air bleeder valve
• Field-adjustable pressure relief valve
• Relief valve adjustable from 75–250 PSI in 25 PSI increments
• Left- or right-hand handle mounting capability
• Low friction loss design
Specifications
• Manufacturer: Harrington
• Model: H1000 Ball Intake Valve
• Inlet: 6" NH Female Swivel
• Outlet: 5" Storz
• Includes: Storz Cap
• Pressure Relief Valve: 250 PSI Adjustable
• Relief Valve Adjustment Range: 75–250 PSI
• Hydrostatic Test Rating: 900 PSI
• Friction Loss: 0.1 PSI @ 1,000 GPM
• Dimensions: 12" L x 8" W x 16" H
• Weight: 34 lbs.
• Application: Pumper Intake Control and Water Supply Operations
