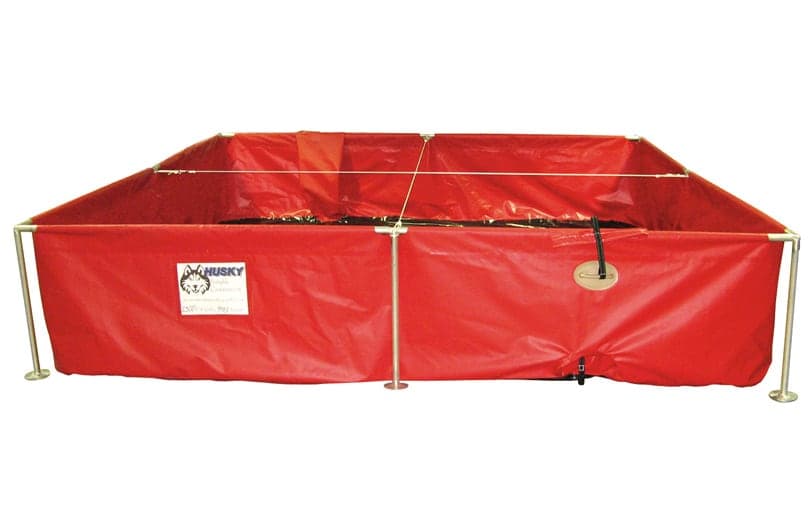

The Husky Aqua Tank Type I combines the strength of a rigid portable water tank with the convenience of a lightweight, quick-assembly design. Engineered for firefighting, emergency water storage, industrial applications, and municipal operations, the Aqua Tank Type I features an all-aluminum frame that assembles in minutes without tools, making it an excellent choice for departments that need dependable portable water storage with minimal setup time.
Unlike the Type II design, the Aqua Tank Type I utilizes a square configuration with only a top rail, reducing weight while simplifying assembly. The rigid top rail allows hose lines to be draped directly over the tank without the need for a hose stand. Manufactured from 6061-T6 aircraft-grade Schedule 40 aluminum tubing, the slip-fit frame locks securely into place once the liner is installed, eliminating the need for pins, wires, or special tools. Every tank includes a storage bag for convenient transportation and compact storage.
Features
• Lightweight square portable water tank with quick, tool-free assembly
• Square design with top rail only for reduced weight and faster setup
• No pins, wires, or special tools required for assembly
• Constructed from 6061-T6 aircraft-grade Schedule 40 aluminum tubing
• Slip-fit corner design securely locks frame into place
• Rigid top rail supports hose lines without requiring a hose stand
• Available in capacities from 250 to 3,000 gallons
• Threaded couplings with optional Storz or Camlock fittings available

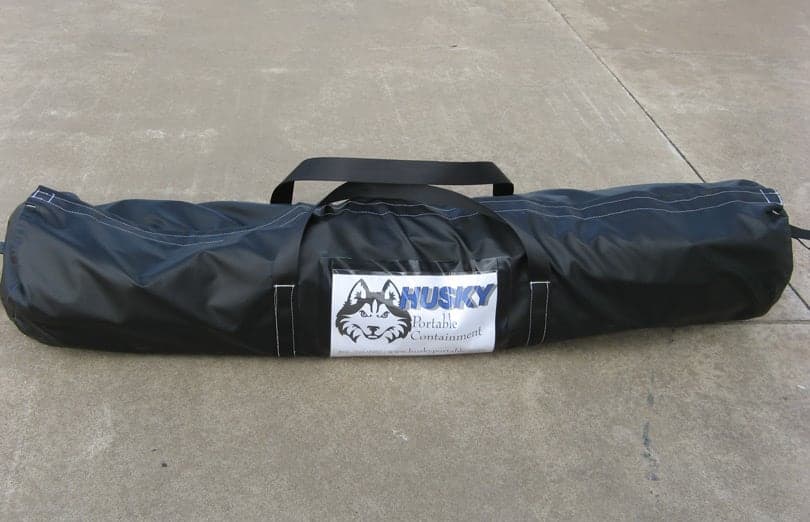

• Includes storage bag for transport and storage
• Custom sizes available
Available Capacities
• 250 Gallon
• 500 Gallon
• 1,000 Gallon
• 1,500 Gallon
• 2,000 Gallon
• 2,500 Gallon
• 3,000 Gallon
Available Liner Materials
• 22 oz. Vinyl
• EXLON® 22 oz.
• XR-5®
• XR-5B®
• XR-3PW®
• Urethane Materials
• PVC Materials
• PVC/Urethane Blends
Available Colors
22 oz. Vinyl
• Red
• Yellow
• Blue
• Orange
• Green
• Black
• Lime Green
22 oz. EXLON®
• Red
• Yellow
Dimensions
| Model |
Capacity |
Assembled Size |
Stored Size |
Weight |
| AT-250 |
250 Gallon |
3'9" × 3'9" × 30" |
10" Dia. × 48" |
35 lbs. |
| AT-500 |
500 Gallon |
5'8" × 5'8" × 30" |
12" Dia. × 48" |
42 lbs. |
| AT-1000 |
1,000 Gallon |
8' × 8' × 30" |
14" Dia. × 48" |
61 lbs. |
| AT-1500 |
1,500 Gallon |
10' × 10' × 30" |
14" Dia. × 60" |
80 lbs. |
| AT-2000 |
2,000 Gallon |
11' × 11' × 30" |
14" Dia. × 64" |
87 lbs. |
| AT-2500 |
2,500 Gallon |
12' × 12' × 30" |
17" Dia. × 48" |
103 lbs. |
| AT-3000 |
3,000 Gallon |
13' × 13' × 30" |
17" Dia. × 48" |
113 lbs. |
Specifications
• Manufacturer: Husky
• Product Type: Aqua Tank Type I Portable Water Tank
• Frame Material: 6061-T6 Aircraft-Grade Schedule 40 Aluminum Tubing
• Frame Design: Square with Top Rail Only
• Assembly: Tool-free slip-fit construction with no pins or wires required
• Capacity Range: 250–3,000 Gallons
• Connection Options: Threaded Couplings with Optional Storz or Camlock Fittings
• Available Liner Materials: 22 oz. Vinyl, EXLON®, XR-5®, XR-5B®, XR-3PW®, Urethanes, PVCs, and PVC/Urethane Blends
• Included Accessories: Storage Bag
• Applications: Firefighting, water shuttle operations, emergency water storage, industrial use, and municipal water supply
