The Husky Aqua Tank Type II combines the strength of a rigid-frame portable water tank with the convenience of a lightweight, quick-assembly design. Engineered for rapid deployment during firefighting, emergency water storage, industrial operations, and municipal applications, the Aqua Tank Type II features a durable aluminum frame that snaps together without tools, allowing crews to set up the tank in just minutes.
Constructed from 6061 aircraft-grade aluminum tubing, the Aqua Tank Type II uses slip-fit corner connections that securely lock the top and bottom rails into place once the liner is installed—eliminating the need for pins, wires, or special tools. Smaller 500- and 1,000-gallon models feature a hexagonal design, while 1,500- through 3,000-gallon models utilize an octagonal configuration for increased strength and capacity. The rigid top rails also allow hose lines to be draped directly over the tank without requiring a hose support stand. Every tank includes a convenient storage bag for easy transportation and compact storage.
Features
• Lightweight, quick-assemble rigid-frame portable water tank
• No tools required for assembly
• Slip-fit corner design eliminates pins and wire connections
• Constructed from aircraft-grade 6061 aluminum tubing
• Rigid top rails support hose lines without the need for a hose stand

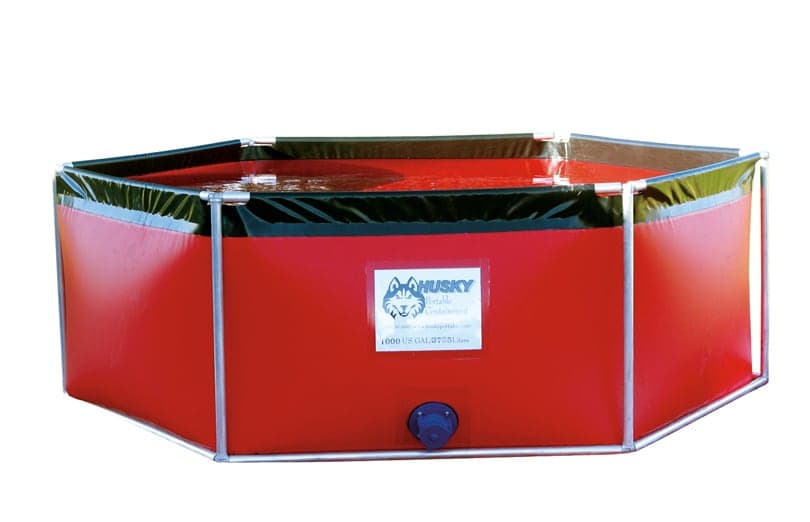

• Hexagonal design on 500- and 1,000-gallon models

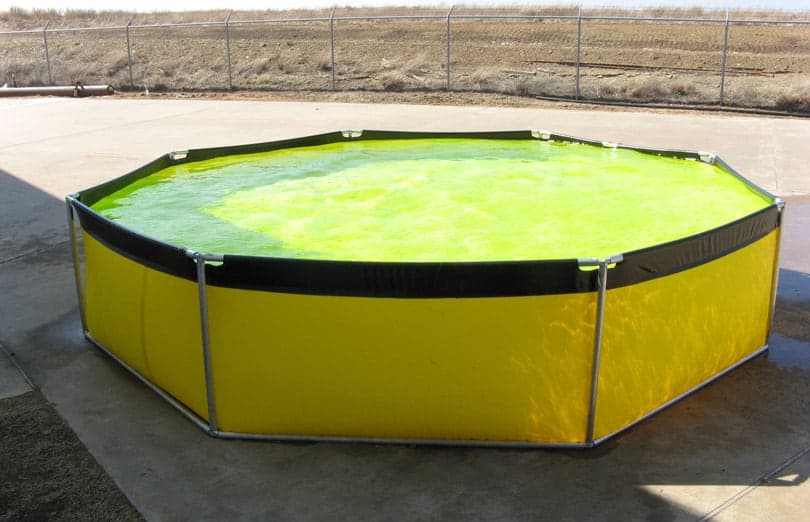

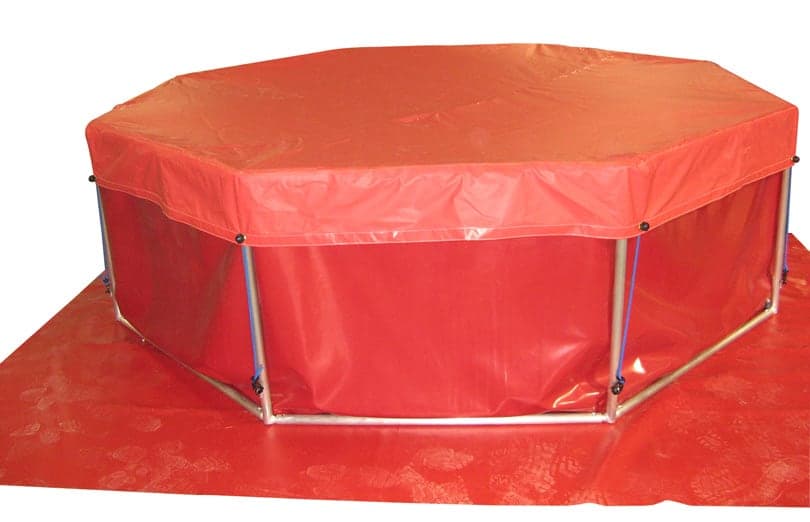

• Octagonal design on 1,500- through 3,000-gallon models
• Standard 2" NPT female rigid flange
• Optional fittings available to meet application requirements

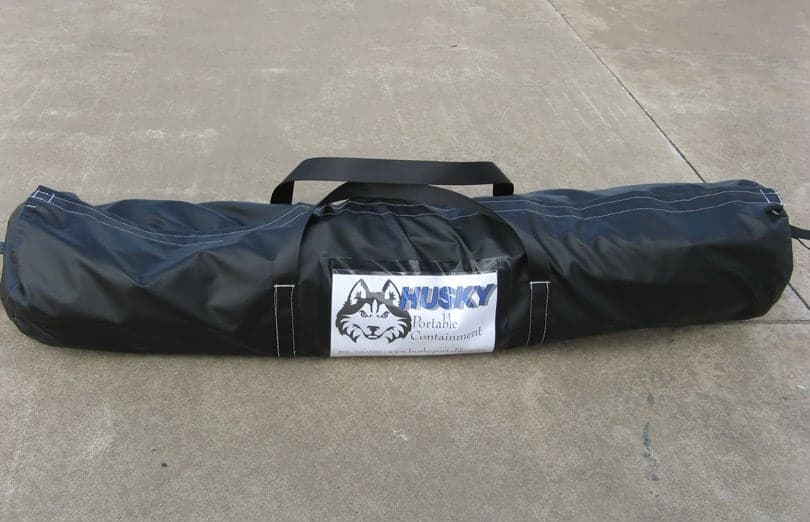

• Includes storage bag for transport and storage
• Custom sizes available
Available Capacities
• 100 Gallon
• 250 Gallon
• 500 Gallon
• 1,000 Gallon
• 1,500 Gallon
• 2,000 Gallon
• 2,500 Gallon
• 3,000 Gallon
Available Liner Materials
• 22 oz. Vinyl
• EXLON® 22 oz.
• XR-5®
• XR-5B®
• XR-3PW®
• Urethane Materials
• PVC Materials
• PVC/Urethane Blends
Available Colors
22 oz. Vinyl
• Red
• Yellow
• Blue
• Orange
• Green
• Black
• Lime Green
22 oz. EXLON®
• Red
• Yellow
Dimensions
| Model |
Capacity |
Assembled Size |
Stored Size |
Weight |
| ATII-100 |
100 Gallon |
3' × 3' × 24" H |
38" × 8" |
39 lbs. |
| ATII-250 |
250 Gallon |
4' × 4' × 27" H |
50" × 8" |
47 lbs. |
| ATII-500 |
500 Gallon |
Hexagon, 38" sides × 34" H |
40" × 10" |
61 lbs. |
| ATII-1000 |
1,000 Gallon |
Hexagon, 52" sides × 34" H |
54" × 10" |
77 lbs. |
| ATII-1500 |
1,500 Gallon |
Octagon, 48" sides × 34" H |
50" × 10" |
85 lbs. |
| ATII-2000 |
2,000 Gallon |
Octagon, 59" sides × 34" H |
61" × 12" |
113 lbs. |
| ATII-2500 |
2,500 Gallon |
Octagon, 63" sides × 34" H |
63" × 14" |
129 lbs. |
| ATII-3000 |
3,000 Gallon |
Octagon, 67" sides × 34" H |
67" × 14" |
137 lbs. |
Specifications
• Manufacturer: Husky
• Product Type: Aqua Tank Type II Portable Water Tank
• Frame Material: 6061 Aircraft-Grade Aluminum
• Frame Design: Quick-assemble slip-fit construction
• Assembly: Tool-free assembly with no pins or wires
• Tank Capacities: 100–3,000 Gallons
• Standard Connection: 2" NPT Female Rigid Flange
• Available Liner Materials: 22 oz. Vinyl, EXLON®, XR-5®, XR-5B®, XR-3PW®, Urethanes, PVCs, and PVC/Urethane Blends
• Included Accessories: Storage Bag
• Applications: Firefighting, water shuttle operations, emergency water storage, industrial use, and municipal water supply
