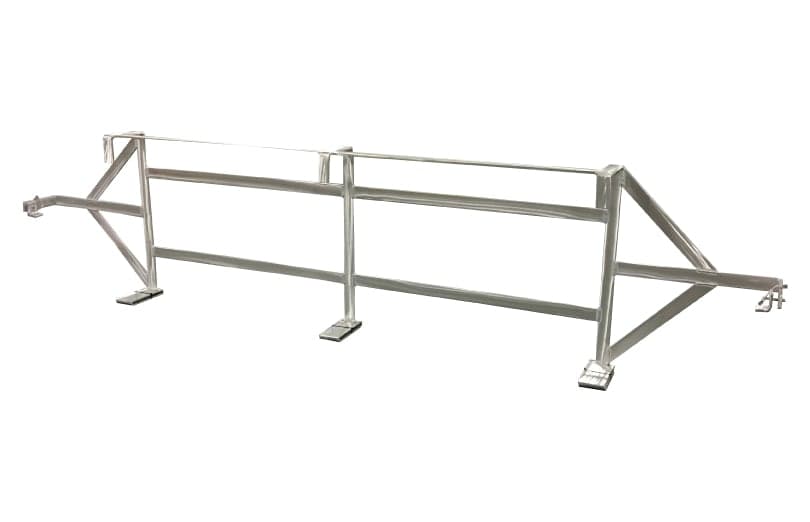

Husky® Folding Frame Tank Racks are stainless steel or aluminum, portable, and come with a manual release mechanism. These lightweight sturdy racks are designed for easy installation. On standard size racks, there are three hinged feet with four pre-drilled 3/8” holes per foot. This allows for easy mounting. There are two locking points, one on each end that will require two screws each. Installation can literally take only minutes.
The narrow FB9 Portable Tank Rack is available in aluminum or stainless steel with a depth of only 9”. The FB9 also weighs a few pounds less than the Standard Tank Rack. If you have dimensional requirements on the side of your tanker that won’t accommodate our standard rack, then the FB9 is the solution you have been looking for!
Features:
- All stainless steel construction
- All Aluminum is also available
- All welds are Tig welded.

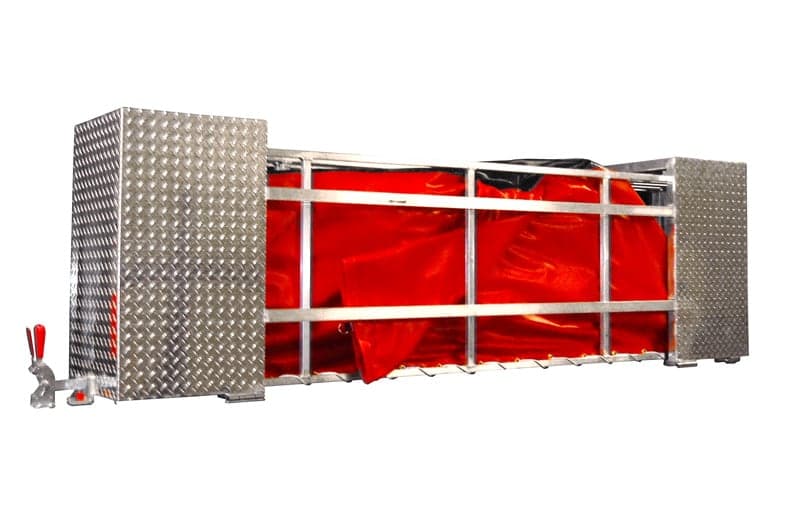

- Diamond plate windbreaks are optional
- Easy to get tanks in and out of the rack
- All standard sizes
- Custom sizes available, shorter, longer, taller, deeper
- Easy to install, bolts right in
- Stainless steel “T” button handles or vertical toggle lock clamps
- Manually operated
Standard Sizes:
| Tank Size |
Standard Dimensions |
Weight |
| 1000 Gal. |
104" x 12" x 32" |
33 lbs. |
| 1500 Gal. |
128" x 12" x 32" |
35 lbs. |
| 2100 Gal. |
140" x 12" x 32" |
36 lbs. |
| 2500 Gal. |
152" x 12" x 32" |
42 lbs. |
| 3000 Gal. |
164" x 12" x 32" |
44 lbs. |
| 3500 Gal. |
176" x 12" x 32" |
45 lbs. |
| 4000 Gal. |
188" x 12" x 32" |
48 lbs. |
| 5000 Gal. |
200" x 12" x 32" |
50 lbs. |
