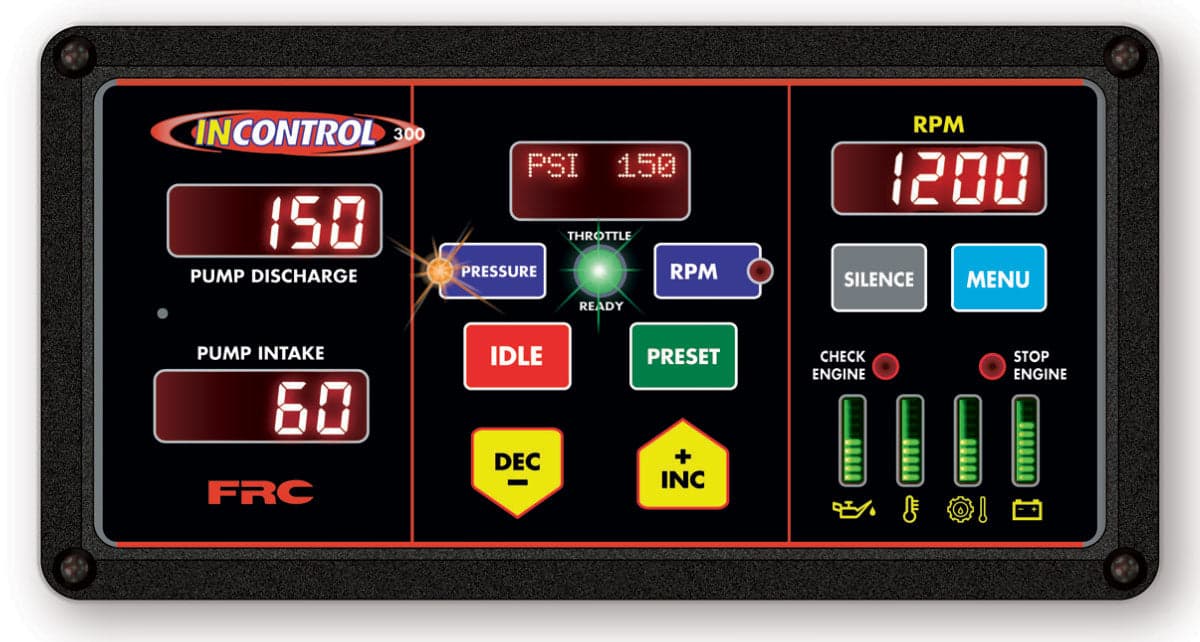

The INCONTROL 3 Pressure Governor is a microprocessor-based pressure governor and engine monitoring system designed to automatically maintain consistent pump discharge pressure while providing critical engine and apparatus performance information. Utilizing engine data received through the J1939 or ISO CAN Bus, the INCONTROL 3 continuously adjusts engine RPM to compensate for changing water flow demands, helping operators maintain reliable fireground performance.
Designed with convenient push-button pressure control, the INCONTROL 3 features a dual-line digital message display, multiple bi-color LED bar graph indicators, and comprehensive system diagnostics. Operators can quickly monitor engine status, transmission temperature, and warning conditions while accessing stored data and programming functions through dedicated MENU and SILENCE controls. Automatic day/night display adjustment and an included audible alarm further enhance operational awareness in all conditions.
Features
• Advanced pressure governor and engine monitoring system
• Push-button pressure control
• Receives engine information via J1939 or ISO CAN Bus
• Automatically maintains desired pump discharge pressure
• Two-line digital message display for operating data and warning messages
• Bi-color LED bar graphs provide visual engine status indication
• Dedicated transmission temperature LED bar graph
• Built-in diagnostic and monitoring capabilities
• Automatic day/night display brightness adjustment
• Separate MENU and SILENCE buttons for simplified operation
• SILENCE button disables audible warning alarms
• MENU button provides access to stored data and programming features
• Audible alarm buzzer included
• Pressure sensors included
• Designed for fire apparatus pump operations
• Available with multiple engine compatibility options
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: INCONTROL 3
• Product Type: Pressure Governor
• Control Type: Push-Button Control
• Engine Communication: J1939 or ISO CAN Bus
• Display Height: 5.5" (140 mm)
• Display Width: 10.5" (267 mm)
• Standard Kit Includes:
• Control Module
• Pressure Sensors
• Audible Alarm Buzzer
• Cables
• Optional Display Units: kPa, BAR, °C
Available Models
• TGA300-A00 – Generic PSI 12V
• TGA301-D00 – Cummins J1939 PSI 12V
• TGA302-C00 – Detroit Diesel J1939 PSI 12V
• TGA304-C00 – Navistar 11 & 13 J1939 PSI
• TGA304-D00 – Navistar PSI 12V
• TGA305-A00 – Caterpillar PSI 12V
• TGA305-B00 – Caterpillar J1939 PSI 12V
• TGA306-C00 – Ford 6.7L PSI 12V (2011+)
• TGA307-B00 – Mack J1939 PSI 12V
• TGA308-B40 – Scania PRT kPa 24V
• TGA308-B50 – Scania PRT BAR 24V
• TGA310-D00 – Mercedes PSI 12V
• TGA324 – MAN
• TGA328 – RAM
• TGA329 – Volvo
Note: Ford 6.7L applications require a J1939 Translator Module. The INCONTROL 3 automatically manages engine RPM to maintain stable pump pressure while providing comprehensive monitoring and diagnostic information to support safe and efficient fire apparatus operation.
