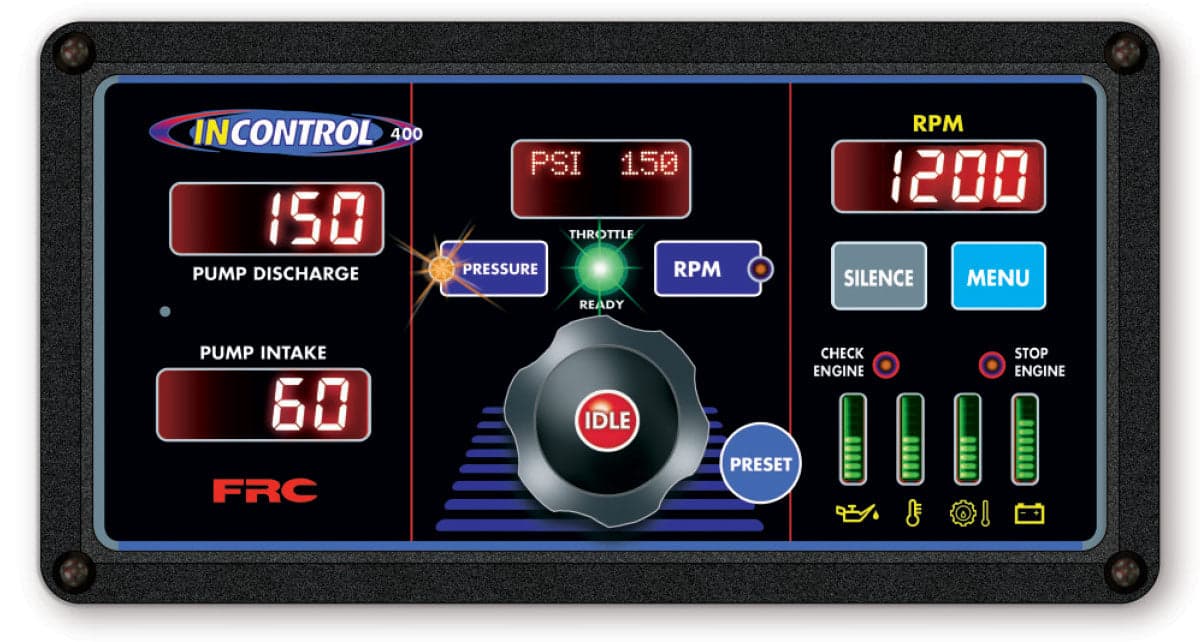

The INCONTROL 4 Pressure Governor is an advanced engine pressure governor and monitoring system designed to provide precise pump pressure control while continuously monitoring critical engine and apparatus operating conditions. Utilizing engine information received through the J1939 or ISO CAN Bus, INCONTROL 4 automatically adjusts engine RPM to maintain consistent discharge pressure, helping operators deliver reliable water flow under changing firefighting conditions.
Featuring Fire Research Corporation's exclusive quick-response control knob, a dual-line digital message display, and multiple bi-color LED bar graph indicators, the INCONTROL 4 provides clear, real-time feedback on engine and pump performance. Built-in diagnostic capabilities, programmable operating features, audible alarms, and automatic display brightness adjustment help simplify pump operations while enhancing apparatus safety and performance during emergency incidents.
Features
• Advanced pressure governor and engine monitoring system
• Receives engine information via J1939 or ISO CAN Bus
• Exclusive quick-response control knob for precise pressure adjustments
• Automatically maintains desired pump discharge pressure
• Two-line digital message display for operating data and warning messages
• Bi-color LED bar graphs provide visual engine status indication
• Dedicated transmission temperature LED bar graph
• Built-in diagnostic and monitoring capabilities
• Automatic day/night display brightness adjustment
• Separate MENU and SILENCE buttons for simplified operation
• SILENCE button disables audible warning alarms
• MENU button provides access to stored data and programming features
• Audible alarm buzzer included
• Pressure sensors included
• Designed for fire apparatus pump operations
• Available with multiple engine compatibility options
Specifications
• Manufacturer: Fire Research Corporation
• Product Series: INCONTROL 4
• Product Type: Pressure Governor
• Control Type: Knob Control
• Engine Communication: J1939 or ISO CAN Bus
• Display Height: 5.5" (140 mm)
• Display Width: 10.5" (267 mm)
• Standard Kit Includes:
• Control Module
• Pressure Sensors
• Audible Alarm Buzzer
• Cables
• Optional Display Units: kPa, BAR, °C
Available Models
• TGA400-A00 – Generic PSI 12V
• TGA401-D00 – Cummins J1939 PSI 12V
• TGA402-C00 – Detroit Diesel J1939 PSI 12V
• TGA404-C00 – Navistar 11 & 13 J1939 PSI
• TGA404-D00 – Navistar PSI 12V
• TGA405-A00 – Caterpillar PSI 12V
• TGA405-B00 – Caterpillar J1939 PSI 12V
• TGA406-C00 – Ford 6.7L PSI 12V (2011+)
• TGA407-B00 – Mack J1939 PSI 12V
• TGA408-B40 – Scania PRT kPa 24V
• TGA408-B50 – Scania PRT BAR 24V
• TGA410-D00 – Mercedes PSI 12V
• TGA424 – MAN
• TGA428 – RAM
• TGA429 – Volvo
Note: Ford 6.7L applications require a J1939 Translator Module. The INCONTROL 4 automatically manages engine RPM to maintain consistent pump pressure while providing comprehensive engine and system monitoring for improved firefighting operations.
