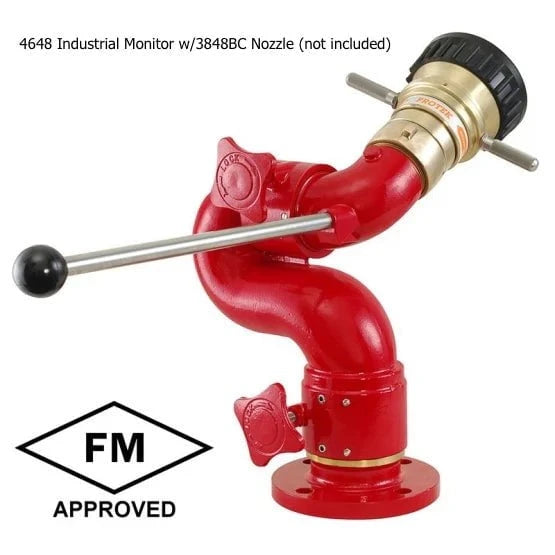

The Industrial Brass Monitor – 3-1/4" Waterway, 1250 GPM is a rugged, high-capacity monitor engineered for demanding marine, offshore, industrial, and corrosive-environment firefighting applications. Featuring a full 3-1/4" waterway and efficient internal flow design, this monitor delivers up to 1250 GPM while minimizing friction loss and maximizing stream performance.
Constructed from corrosion-resistant brass with a durable red powder-coated finish, this monitor is designed for long-term reliability and minimal maintenance. Cast-in turning vanes improve flow efficiency, while positive friction locks on both horizontal and vertical travel allow operators to securely position the monitor during operation. Its compact, low-profile design and 360° rotational capability provide exceptional maneuverability and operational flexibility in challenging environments.
Features
• Rugged, flow-efficient monitor designed for high reliability
• Full 3-1/4" waterway supports flows up to 1250 GPM (4800 LPM)
• Ideal for marine, offshore, industrial, and corrosive environments
• Corrosion-resistant brass construction
• Cast-in turning vanes for efficient flow and reduced friction loss
• Highly maneuverable and easy to operate
• Positive friction locks for both horizontal and vertical positioning
• Compact, low-profile design
• Engineered using advanced computer-aided design and testing technology
• Minimal maintenance requirements

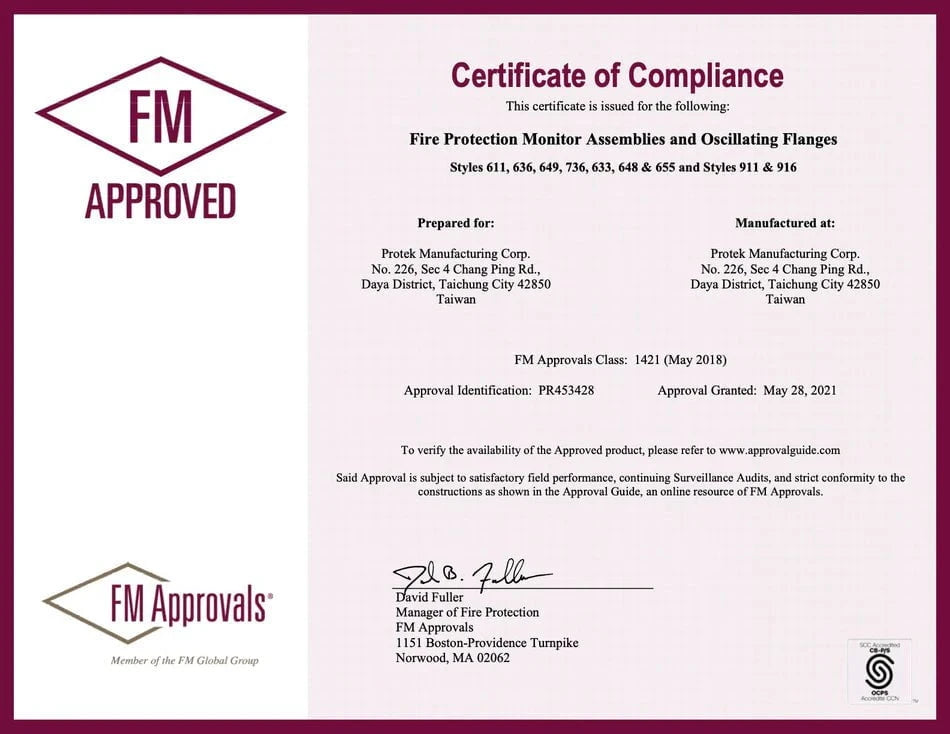

• FM Approved
Specifications
• Model: 4648
• Product Type: Industrial Firefighting Monitor
• Maximum Flow Rate: 1250 GPM (4800 LPM)
• Operating Pressure: 200 PSI (14 BAR)
• Waterway Size: 3-1/4"
• Inlet Connection: 3" or 4" Flange
• Outlet Connection: 2-1/2" (65 mm)
• Control Type: Tiller Bar
• Vertical Travel: 135° (90° above to 45° below horizontal)
• Rotational Travel: 360° Continuous Rotation
• Material: Brass
• Finish: Red Powder Coating
• Weight: 52 lbs. (23.5 kg)
• Certification: FM Approved
