Description

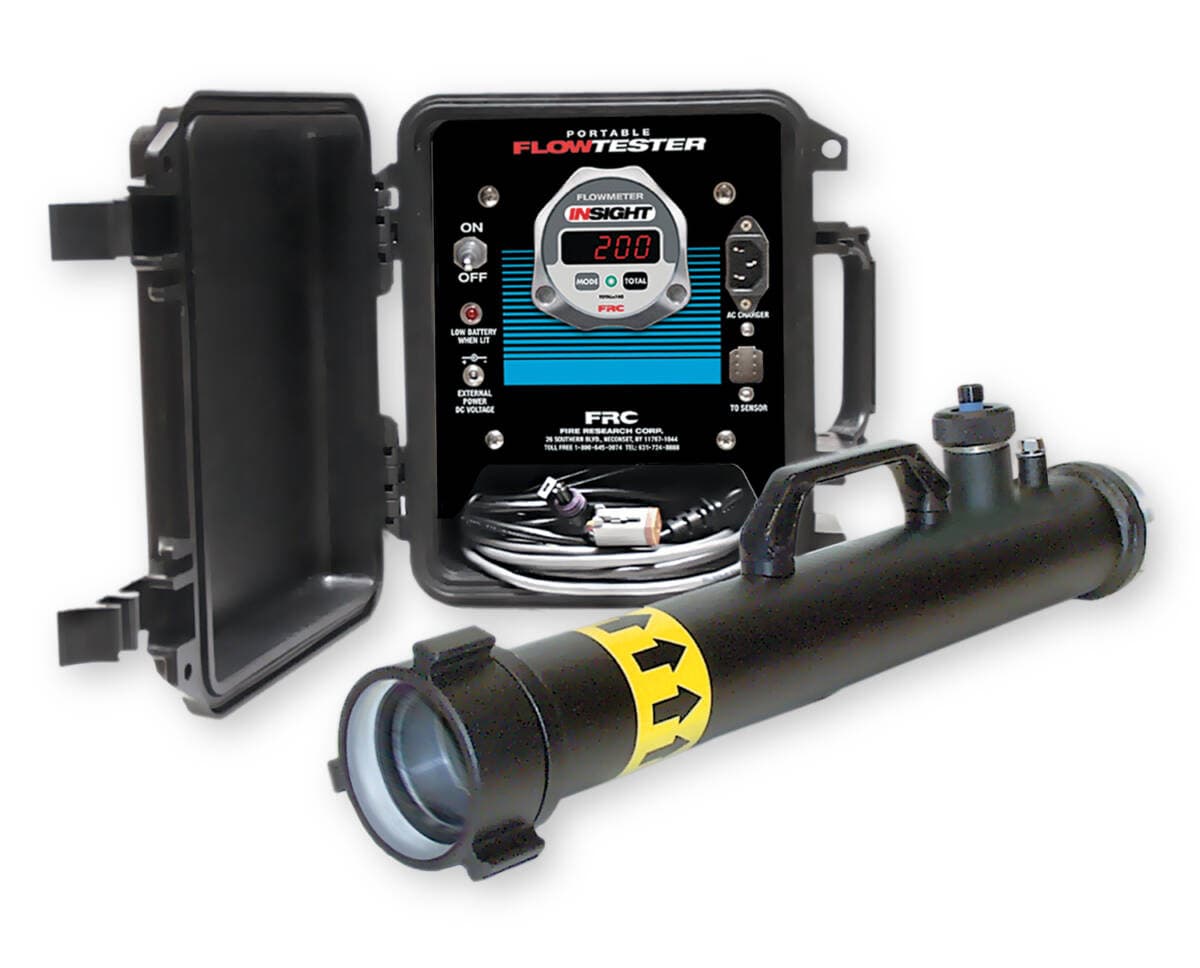

The INSIGHT Portable Flow & Pressure Meter is a self-contained testing system designed to accurately measure water flow and pressure without the need for charts, calculations, or external instrumentation. Ideal for fire departments, pump testing, hydrant flow testing, equipment calibration, and training applications, the INSIGHT system provides direct flow readings in GPM or LPM while simultaneously monitoring system pressure. The portable design combines a digital flow and pressure display, rechargeable battery, charger, sensors, cables, and flow tube into a rugged Pelican® carrying case for convenient field use.
Built around FRC's digital INSIGHT display, the system stores calibration data for up to six different flow tubes, allowing operators to use a single display with multiple tube sizes. The ultra-bright LED display remains easy to read in daylight and low-light conditions, while programmable flow warnings, diagnostic functions, and individual tube calibration help ensure reliable and accurate testing. Whether evaluating hydrant performance, verifying pump output, calibrating apparatus flowmeters, or conducting hands-on hydraulic training, the INSIGHT Portable Flow & Pressure Meter delivers professional-grade performance in a portable package.
Features
• Direct flow and pressure measurement without charts or calculations
• Displays flow directly in GPM or LPM
• Measures system pressure simultaneously
• Programmable for multiple flow tube diameters
• Stores calibration data for up to six different flow tubes
• Use one display unit with multiple flow tubes
• Individual calibration for each tube reduces measurement errors
• Ultra-bright LED display for excellent visibility in all conditions
• High and low flow warning functions
• Built-in diagnostic capabilities
• Superior flow measurement accuracy and performance
• Hydrant water supply testing capability
• Pump performance testing and verification
• Fire suppression equipment calibration and verification
• Vehicle-mounted flowmeter calibration
• Training and hydraulic demonstration applications
• Rugged Pelican® carrying case with internal cable storage
• Rechargeable battery-powered operation
• Operates from AC or optional external DC power sources
• Optional Pitot pressure pickup available for higher flow measurements
• Optional totalizing function available on FTA400 models only
• Shock-resistant portable design
• Optional padded flow tube carry bag available
Specifications
• Manufacturer: Fire Research Corporation (FRC)
• Product Series: INSIGHT Portable FlowTester
• Models Available:
• FTA500 – GPM / PSI
• FTA510 – LPM / kPa
• FTA520 – LPM / Bar
• Standard Kit Includes:
• Portable test set with built-in rechargeable battery
• 120 VAC charger
• Flow tube
• Paddlewheel flow sensor
• Pressure sensor
• Sensor cables
• Display Module Voltage: 9–30 VDC
• Display Module Current Draw: 0.5 Amp
• Pressure Sensor Range: 0–300 PSI
• Pressure Sensor Proof Pressure: 800 PSI
• Flow Sensor Type: Paddlewheel
• Flow Sensor Material: Acetal (Delrin) with 316 stainless steel shaft
• Flow Tube Material: Aluminum
• Internal Battery: 12 VDC sealed lead-acid rechargeable battery
• Approximate Battery Runtime: 6 hours per charge
• Power Sources:
• Internal rechargeable battery
• 120/240 VAC power
• Optional 12/24 VDC external power source
• Available Display Units: GPM, LPM, PSI, kPa, Bar
Available Flow Tube Sizes
| Tube Diameter | Standard Connection | Flow Range (GPM) | Flow Range (LPM) |
|---|---|---|---|
| 1.5" | 2.5" Couplings | 13–320 GPM | 50–1,210 LPM |
| 2.0" | 2.5" Couplings | 21–520 GPM | 80–1,970 LPM |
| 2.5" | 2.5" Couplings | 30–850 GPM | 115–3,220 LPM |
| 3.0" | MNPT Threads | 40–1,380 GPM | 150–5,225 LPM |
| 4.0" | MNPT Threads | 80–2,300 GPM | 305–8,705 LPM |
Available Options
• Tube Carry Bag
• DC Power Cable
• Pitot Tube / Pitot Pressure Pickup
• International AC Power Cord
• 240 VAC Charger
• Additional coupling configurations available depending on flow tube diameter
