Getting the right flow on the fire is critical. Forget using rule-of-thumb based calculations based on variables such as pressure readings, hose, size, length and friction loss. Flowmeters give an exact and immediate measure of the water being used.
INSIGHT series displays are specifically designed for use on fire apparatus. These hi-tech indicating devices are compact and built rugged to withstand the conditions found at fire scenes today. INSIGHT displays are used by the largest fire departments in the world and have a proven track record.
Features
Calibrate Up to Ten Different Flow Rates
Flowmeters should provide accurate readings at low, medium, and high flow rates. FRC flowmeters have a unique calibration program with the flexibility to ensure accuracy at up to ten different flow rates when plumbing conditions do not allow for non-turbulent flow.
Single Point Calibration
When calibrating at a single flow rate, plumbing conditions may cause turbulent, non-linear flow producing inaccurate readings away from the calibration point.
Multiple Point Calibration
When plumbing conditions are not ideal, calibrate at up to TEN flow rates to greatly increase accuracy and reduce measurement errors.
Expanded Scale
Expanded 50 psi to 250 psi (3.5 BAR to 17 BAR) scale for more precise pressure readings in the most commonly used ranges.
Remote Displays, Summing and Accumulating
All FRC Insight series displays are designed to share information over the FRC datalink. This technology allows for remote displays, the display of actual flow rate through multiple discharges (summing) and the total flow through multiple discharges (accumulating).

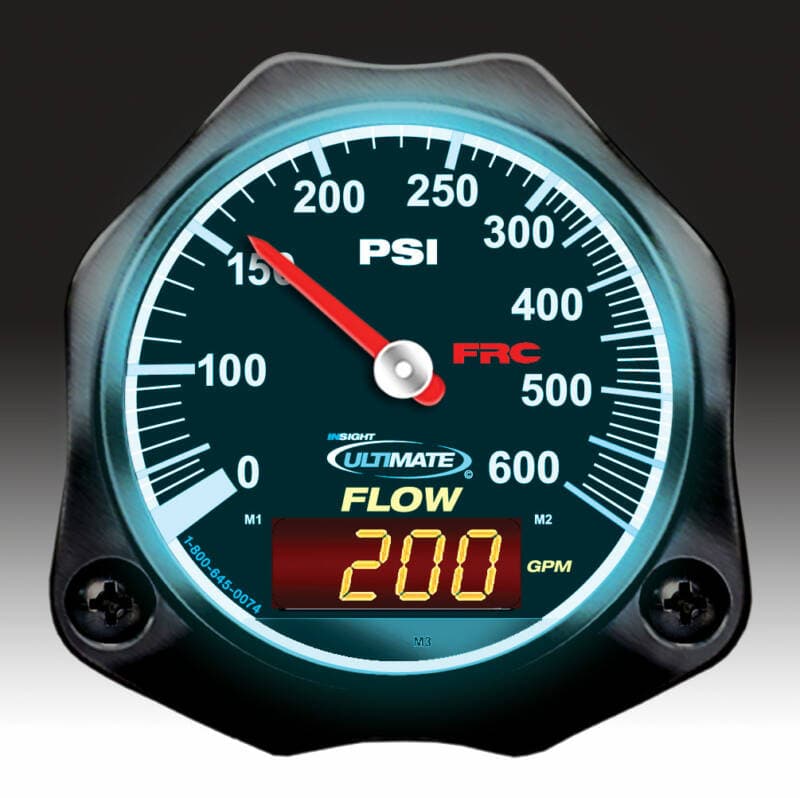

Insight Ultimate
STANDARD KIT includes display module, flow sensor w/mount, pressure sensor, and cables.
-
FPA400-XXX – GPM/psi
-
FPA400-000 – Remote Only GPM/psi
Dimensions:
- FPA400 – 4.4″ (H) x 4.4″ (W) (111.76 mm x 111.76 mm)
