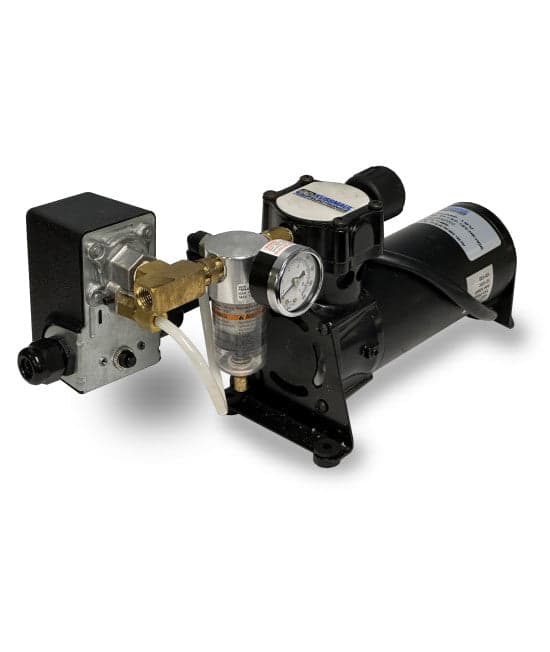

The Kussmaul 12V HP Horizontal Mount is a compact, vehicle-mounted high-pressure air compressor designed to maintain air brake system pressure on fire apparatus, rescue vehicles, and other vehicles equipped with air brakes. During extended periods when the vehicle is parked, small air system leaks can cause pressure to fall below the brake release threshold. The Auto Pump automatically monitors system pressure and activates as needed to restore proper pressure, helping keep the vehicle ready for immediate departure.
A heavy-duty pressure switch automatically starts the compressor when system pressure drops to 105 PSI and shuts the compressor off when pressure reaches 125 PSI. The cut-in pressure is field adjustable, while the 20 PSI pressure differential remains fixed. A built-in pressure gauge provides convenient system status monitoring, and a 15-amp circuit breaker installed in the pressure switch provides electrical protection.
The direct-drive design couples the permanent magnet motor directly to the compressor section, eliminating belts and pulleys for reliable operation and reduced maintenance requirements. Sealed ball bearings provide long service life, while the compressor operates independently without interfering with the vehicle's engine-mounted air compressor. This model features a manual drain and is designed exclusively for horizontal mounting.
Features
• Vehicle-mounted 12V high-pressure air compressor designed for vehicles equipped with air brake systems
• Maintains air brake system pressure while the vehicle is parked
• Compensates for air system leaks to help keep vehicles ready for immediate departure
• Pressure switch automatically senses low system pressure and activates the compressor
• Factory-set pressure switch turns the compressor ON at 105 PSI and OFF at 125 PSI
• Field-adjustable cut-in pressure with fixed 20 PSI pressure differential
• Maximum pressure rating of 125 PSI
• Pressure gauge provides convenient system pressure monitoring
• Manual drain system
• Built-in 15-amp circuit breaker provides electrical protection
• Direct-drive design eliminates belts and pulleys
• Permanent magnet motor provides reliable compressor operation
• Operates independently without interfering with the engine-mounted air compressor
• Sealed ball bearings provide long service life
• Requires no routine compressor maintenance when properly installed
• Designed exclusively for horizontal mounting
• For vertical mounting applications, use model 091-9-12V-HP-VER
• Backed by a 1-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Vehicle-Mounted High-Pressure Air Compressor
• Model: 12V HP Horizontal Mount
• Input Voltage: 12 VDC
• Maximum Input Current: 11 Amps
• Motor Type: Permanent Magnet, 0.10 HP
• Maximum Pressure: 125 PSI
• Factory-Set Cut-In Pressure: 105 PSI
• Factory-Set Cut-Out Pressure: 125 PSI
• Pressure Differential: 20 PSI, Fixed
• Pressure Switch: Field-Adjustable Cut-In Set Point
• Output: 0.30 SCFM at 80 PSI; 0.35 SCFM at 60 PSI
• Circuit Protection: 15-Amp Circuit Breaker
• Drain Type: Manual Drain
• Mounting Orientation: Horizontal Only
• Vertical Mount Model: 091-9-12V-HP-VER
• Weight: 7 lbs.
• Warranty: 1-Year Manufacturer's Warranty
