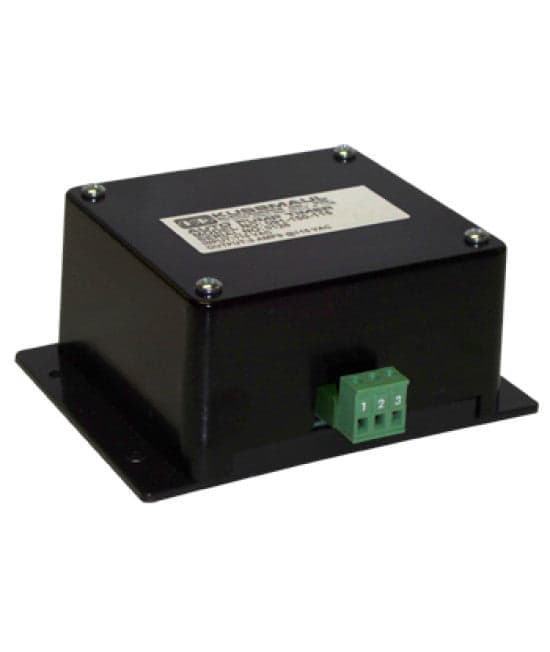

The Kussmaul AC Auto Pump Timer is an automatic duty-cycle controller designed specifically to help protect compatible 120 VAC Kussmaul Auto Pump air compressors from overheating and excessive wear caused by continuous operation. Designed for fire apparatus, rescue vehicles, and other emergency or specialty vehicles, the timer helps extend compressor service life when excessive air system leakage causes the Auto Pump to operate continuously.
The timer automatically limits compressor operation to one hour of continuous running followed by a one-hour OFF period for cooling. This controlled duty cycle helps reduce operating temperatures, minimize excessive compressor wear, and maintain pump efficiency. The AC Auto Pump Timer operates automatically without interfering with normal compressor operation and is designed for straightforward installation with compatible Kussmaul Auto Pump models.
Features
• Automatic duty-cycle controller for compatible Kussmaul AC Auto Pump air compressors
• Helps protect compressors from overheating caused by continuous operation
• Limits continuous compressor operation to one hour
• Provides a one-hour cool-down period between operating cycles
• Helps reduce excessive compressor wear and extend pump service life
• Helps maintain compressor efficiency in vehicles with high air system leakage
• Operates automatically without interfering with normal Auto Pump operation
• 30-amp relay contacts
• Easy installation
• Compatible with Kussmaul Auto Pump models 091-9B-1-AD, 091-9HP, and 091-9HP-AD
• Designed for 120 VAC Auto Pump applications
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: AC Auto Pump Duty-Cycle Timer
• Model: 091-150-115
• Compatible Models: 091-9B-1-AD, 091-9HP, and 091-9HP-AD
• Operating Cycle: 1 Hour ON / 1 Hour OFF
• Relay Contact Rating: 30 Amps
• Input Voltage: 120 VAC
• Maximum Input Current: 0.020 Amps
• Output: AC Auto Pump Load, 5 Amps Maximum
• Weight: 0.5 lbs.
• Warranty: 3-Year Manufacturer's Warranty
